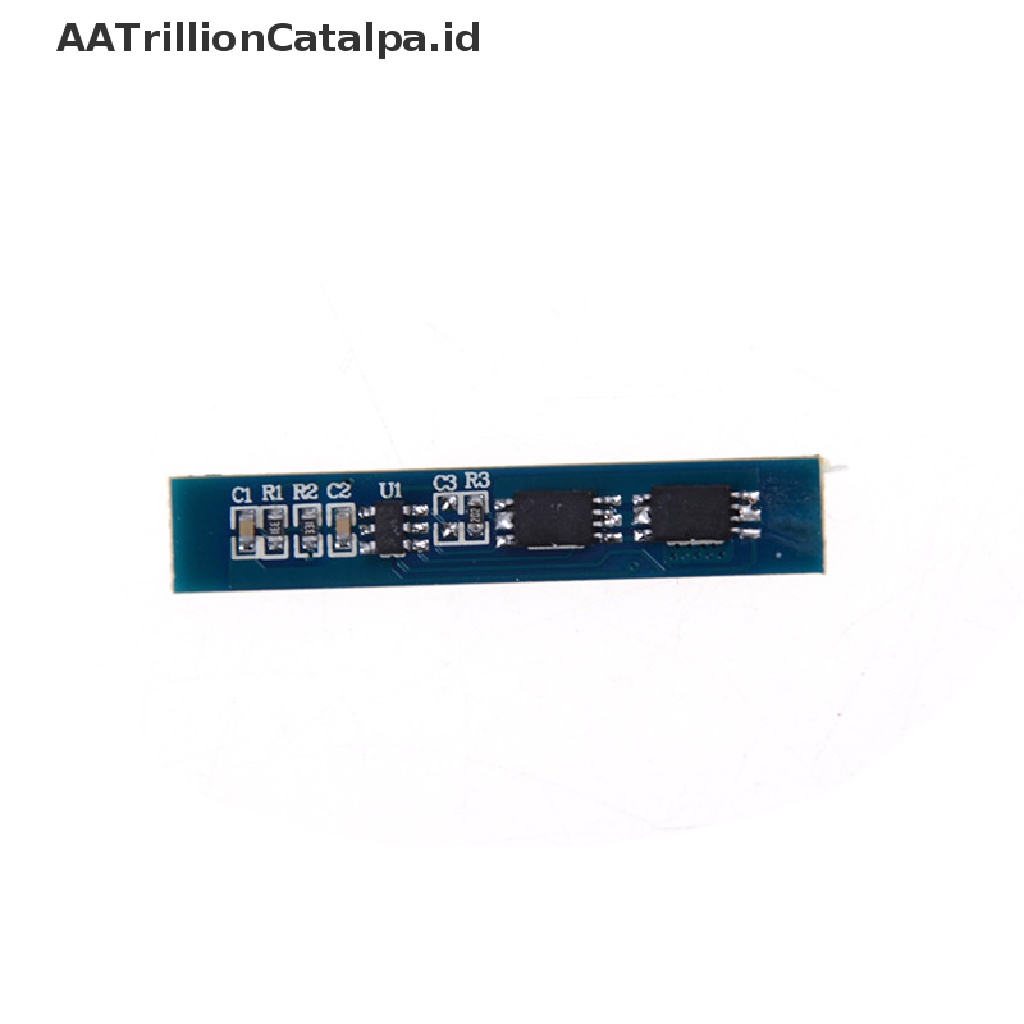

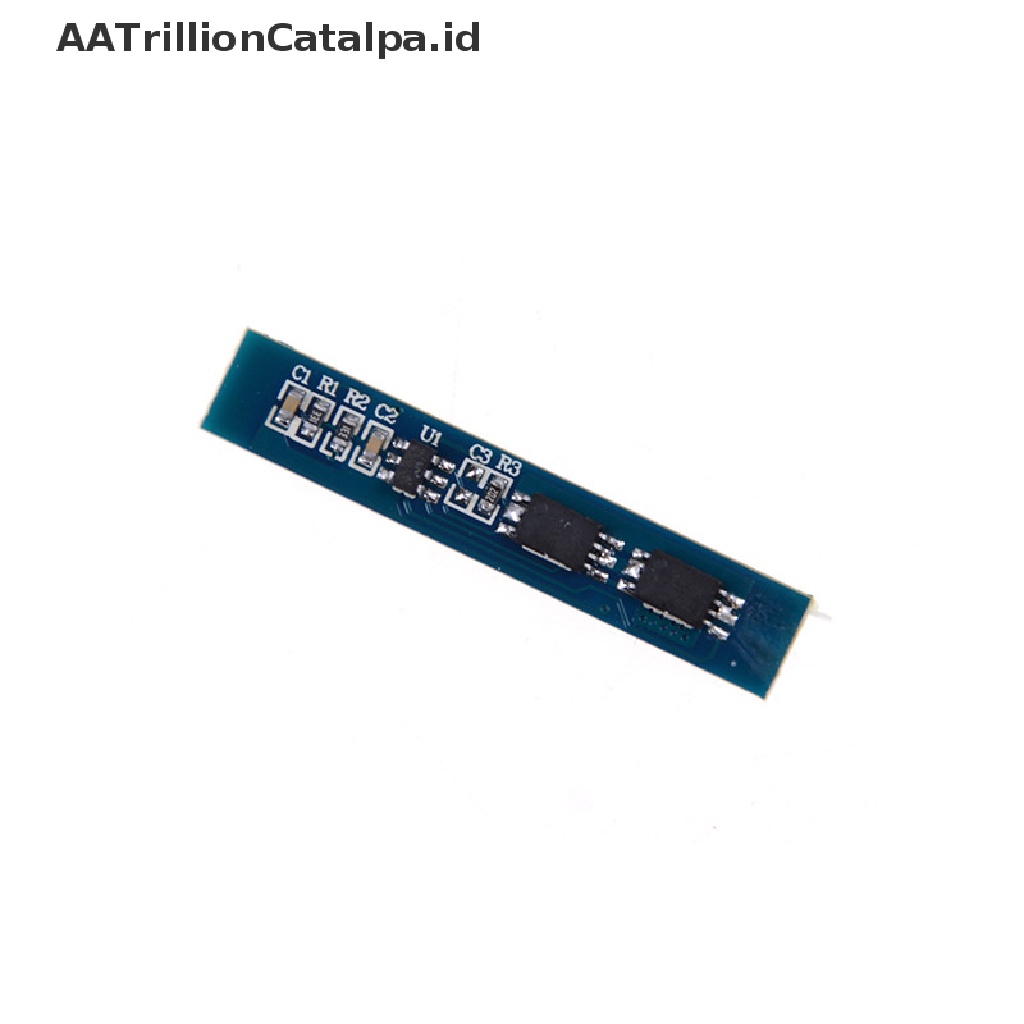

2pcs Papan PCB Pelindung Baterai Lithium Lipo 18650 2S 3A 7.4 8.4V

Detail 2pcs Papan PCB Pelindung Baterai Lithium Lipo 18650 2S 3A 7.4 8.4V

Main IC using original "precision" imported components. With over charge, over discharge, over current, short circuit protection function, for a variety of different shapes of 3.7V capacity lithium batteries. Sophisticated design, fine workmanship, comprehensive test. Compact size, suitable for many requirements of high integration, low cost occasions, can meet the performance requirements of many aspects, to ensure the absolute safety of the battery group.


Main function:

Over charging protection, over discharge protection, short circuit protection, over current protection function.


Technical parameter:
Overcharge Detection Voltage: 4.25-4.35V±0.05V
Over Discharge Detection Voltage: 2.3-3.0V±0.05V
Maximum Working Current: 3A
Transient Current: 5A
Operating Temperature: -40-50℃
Internal Resistance: Less than 45m Ω

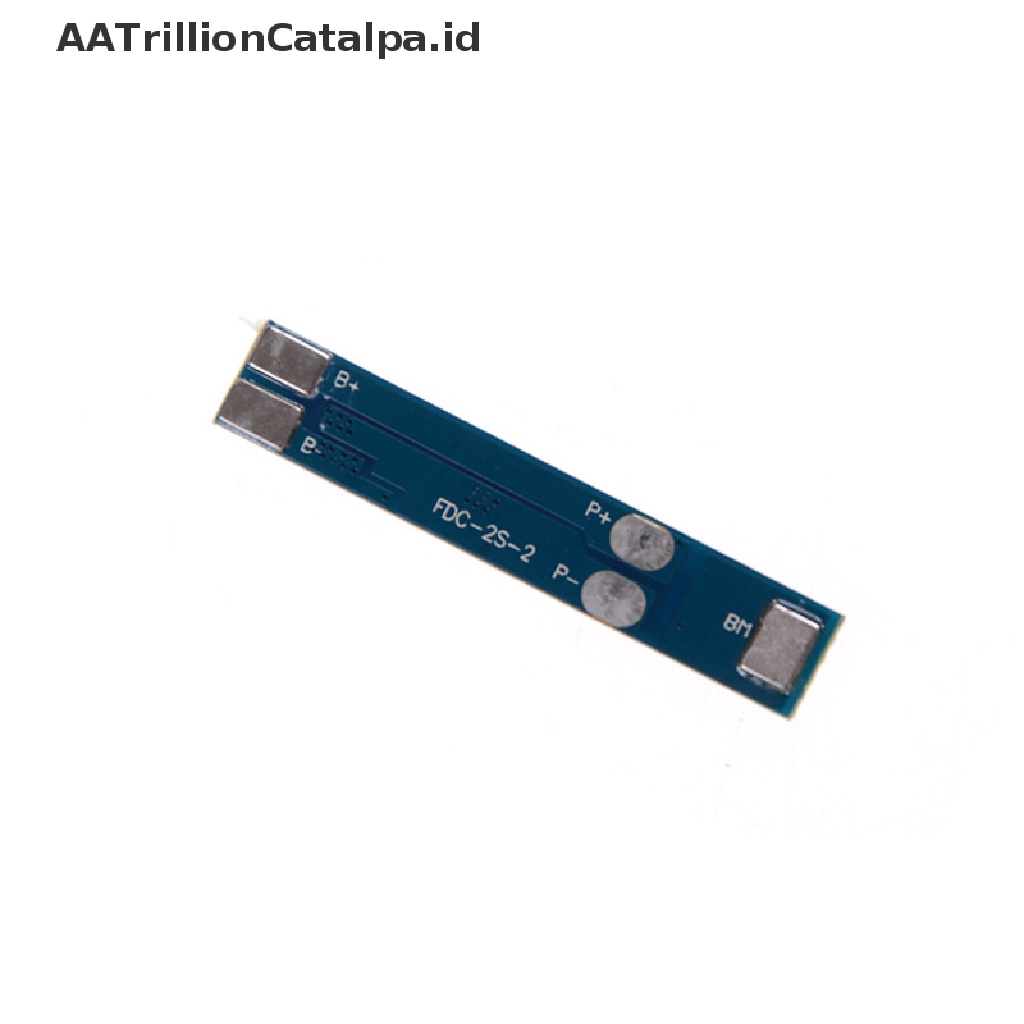

Connection description:
B+ B-: The interface of battery core
P+ P-: The connector of battery board
MB: The connection point between the batteries
B+: Battery V+ Positive
B-: Battery V- Negative
P+: Output / Charging V+
P-: Output / Charging V-
Include:2 pcs

Gambar produk
