2262/2272 four-way wireless remote control DC

Detail 2262/2272 four-way wireless remote control DC

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 1 mei = 25 pcs_x000D_
_x000D_
_x000D_
_x000D_
Operating voltage (V) : DC5V quiescent_x000D_
_x000D_
current (mA) : 4.5MA_x000D_
_x000D_
Modulation : amplitude modulation ( OOK )_x000D_
_x000D_
Operating temperature : -10 ~ +70 _x000D_
_x000D_
Receiving sensitivity (dBm) : -105dB_x000D_
_x000D_
Operating Frequency (MHz) : 315M Frequency_x000D_
Encoding: pad code (fixed code)_x000D_
_x000D_
Work: M4 (Jog: hold down the output is not let go, a let go to stop the output)_x000D_
_x000D_
Size (LWH) : 41 * 23 * 7mm_x000D_
Second, productsFeatures:_x000D_
Ultra-regenerative receiver module uses LC oscillator circuit, which contains amplification, the output data signal for the decoded high-level signal, the use of extremely convenient and inexpensive, it is widely used. With four-way decoding output (also can be changed to six-way jog or interlock output), easy to use; frequency debugging easy, short lead-time; consistency of product quality, cost-effective._x000D_
_x000D_
Receiver module has a wide receiver bandwidth, generally 10MHz , the factory is generally adjusted at 315MHz or 433.92MHZ (if there are special requirements to adjust the frequency, the frequency of the adjustment range of 266MHz ~ 433MHz .). Receiver module generally DC5V power supply, if any special requirements can adjust the voltage range._x000D_
Third, the pin and use:_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
Pin_x000D_
name_x000D_
Function Description_x000D_
1_x000D_
VT_x000D_
Output status indication_x000D_
2_x000D_
D3_x000D_
Data output_x000D_
3_x000D_
D2_x000D_
Data output_x000D_
4_x000D_
D1_x000D_
Data output_x000D_
5_x000D_
D0_x000D_
Data output_x000D_
6_x000D_
5V_x000D_
Positive power supply_x000D_
7_x000D_
GND_x000D_
Negative power supply_x000D_
_x000D_
ANT_x000D_
Connect the antenna_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
Receiver module has a total of eight external interfaces, above the English said. "5V" indicates positive power supply, "D0 , D1 , D2 , D" 3 " represents the output, " the GND " indicates negative one, " ANT " an earth antenna terminal._x000D_
Fourth, the application environment (applications)_x000D_
Wireless remote control switch

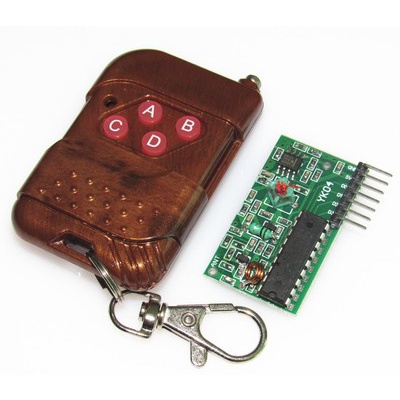

Gambar produk
