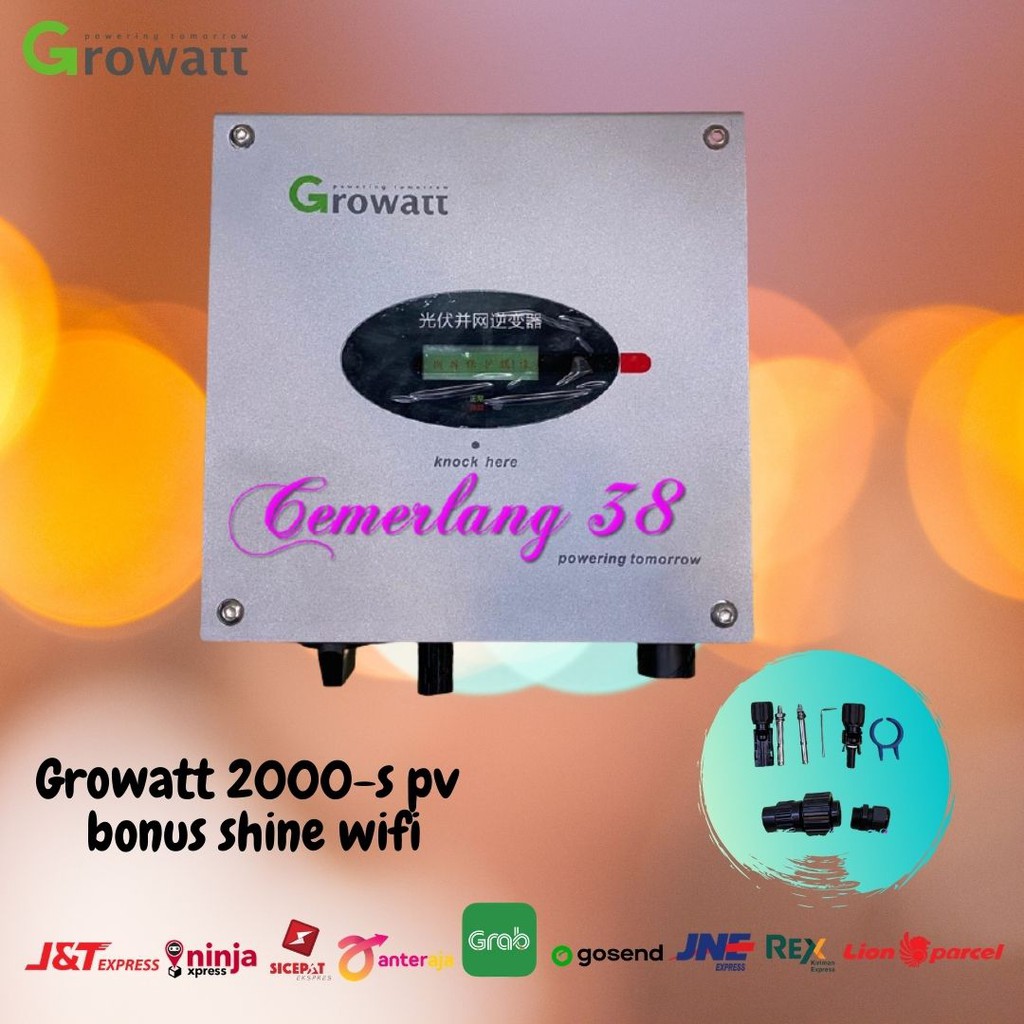

2000W On Grid Growatt 2000-S PV Grid Inverter 2000 W BONUS Shine WIFI

Detail 2000W On Grid Growatt 2000-S PV Grid Inverter 2000 W BONUS Shine WIFI

POWER INVERTER GROWATT 2000-S / ON-GRID 2000 Watt Support WIFI

Kami berikan module Shine Wifi secara GRATIS!!!

Leading - edge Technology :
- Maximum efficiency of 97,6% and wide input voltage range
- Internal DC Switch
- Transformerlles GT Topology
- Compact Design
- Ethernet / RF Technology / Wi-Fi
- Sound Control
- Easy Installation

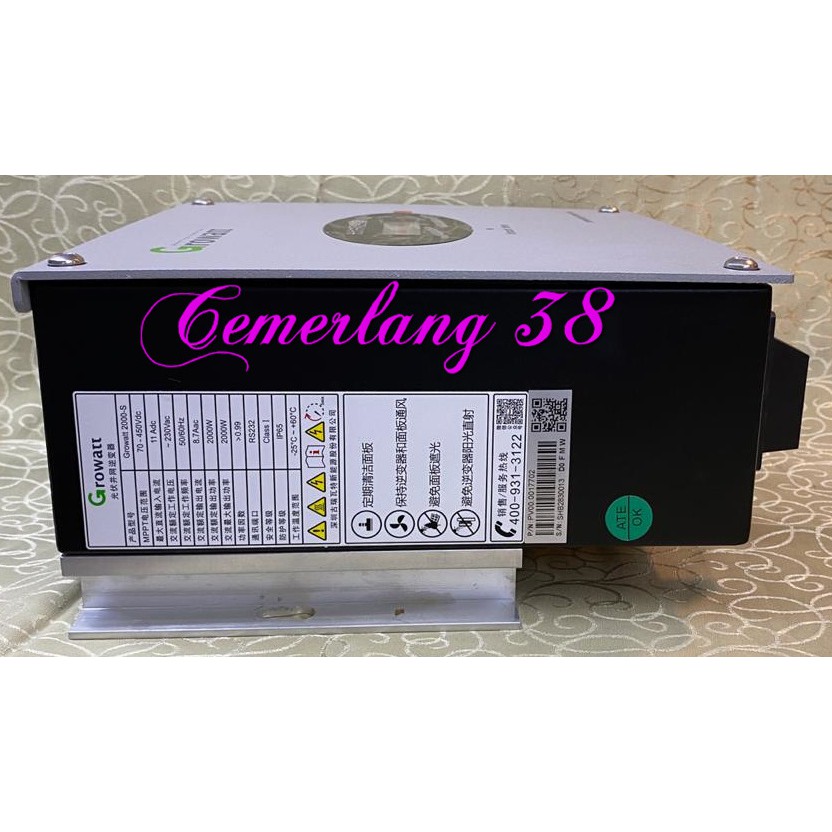

Spesifications : Growatt-2000S
Input Data (DC)
- Max recommended PV Power (For Module STC) : 2600W
- Max DC Voltage : 450V
- Start Voltage : 80V
- PV Voltage Range : 70V-450V
- MPP work Voltage range/nominal voltage : 70V-450V/360V
- Full Load Dc voltage range : 200V-400V
- Max Input Current : 11A
- Max Input Current Per String : 11A
- Number of Independent MPP trackers/Strings per MPP tracker : 1/1

Output (AC)
- Rated AC Output Power : 2000W
- Max AC Power : 2000W
- Max Output Current : 9.5A
- AC nominal voltage;range : 220,230, 240V ; 180Vac-280Vac
- AC grid frequency;range : 50.60Hz -+ 5Hz
- Power Factor : 1
- Displacement Power Factor : 0.8 Leading
- Configurable : 0.8 Lagging
- THDi : - AC Connection : Single Phase

Efficiency
- Max efficiency : 97.4%
- Euro Weighted efficiency : 97 %
- MPPT efficiency : 99.5%

Protections Devices
- DC Reverse polarity protection : Yes
- Dc Switch rating for each MPPT : Opt
- Output over current protection, Output over voltage protection-varistor : Yes
- Ground fault monitoring, Grid Monitoring : Yes
- Integrated all - pole sensitive leakage current monitoring unit : Yes

General Data
- Operating Temperature range : -25C + 60C with derating above 45C
- Noise emission (typical) : - Altitude : 2000m without derating
- Self-Consumption night : - Environmental Protection Rating : IP65
- Relative Humidity : 100%

Features

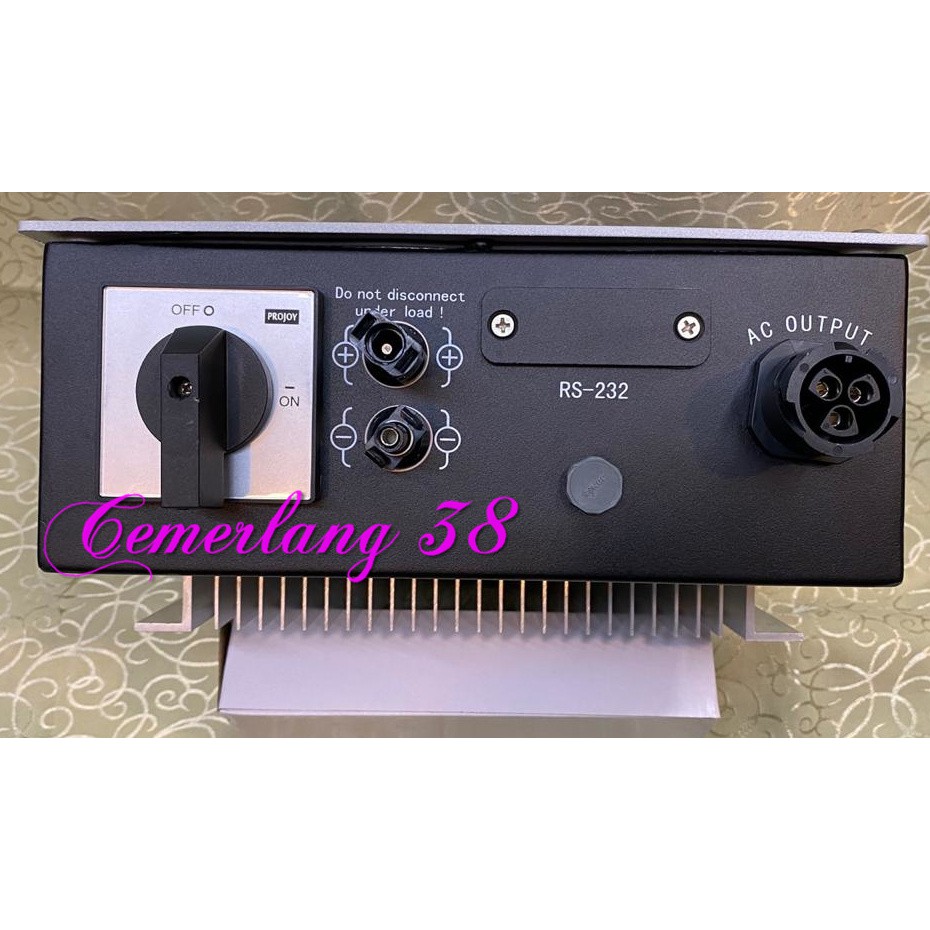

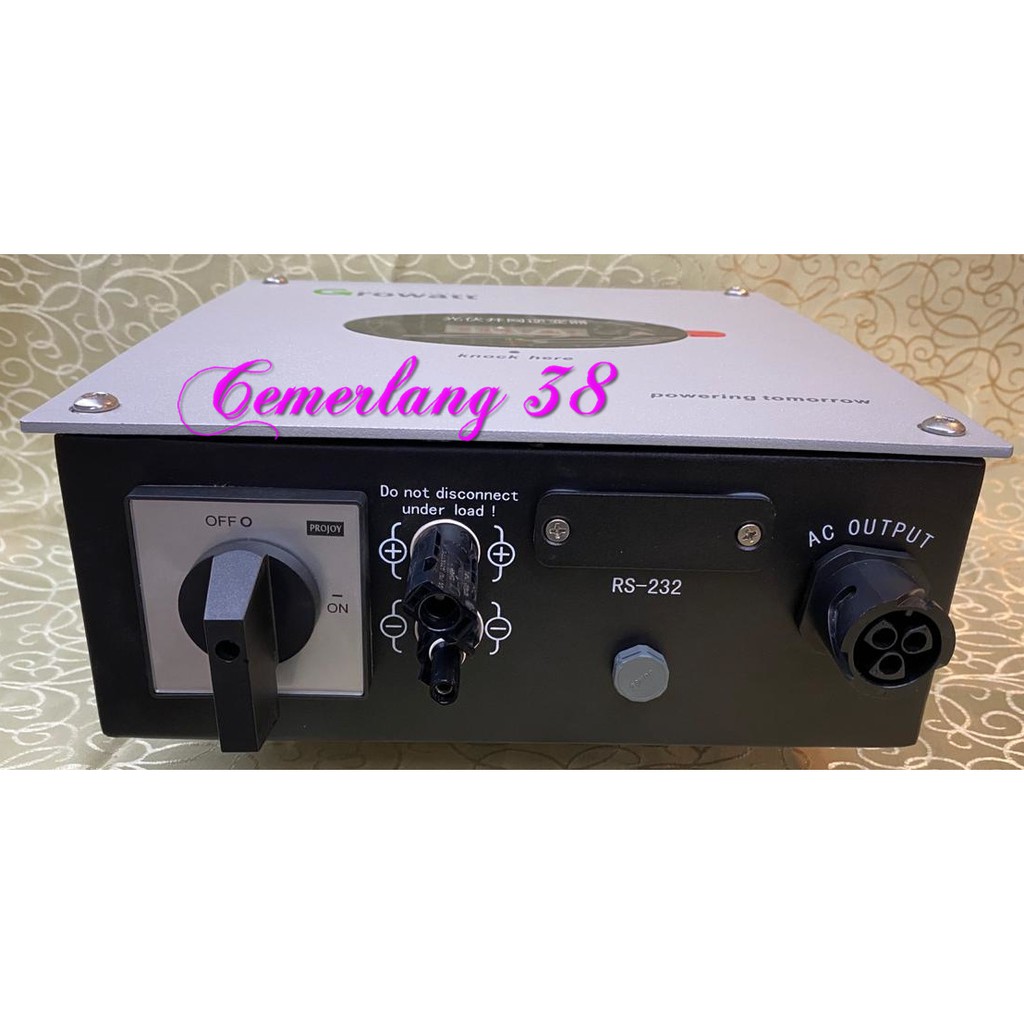

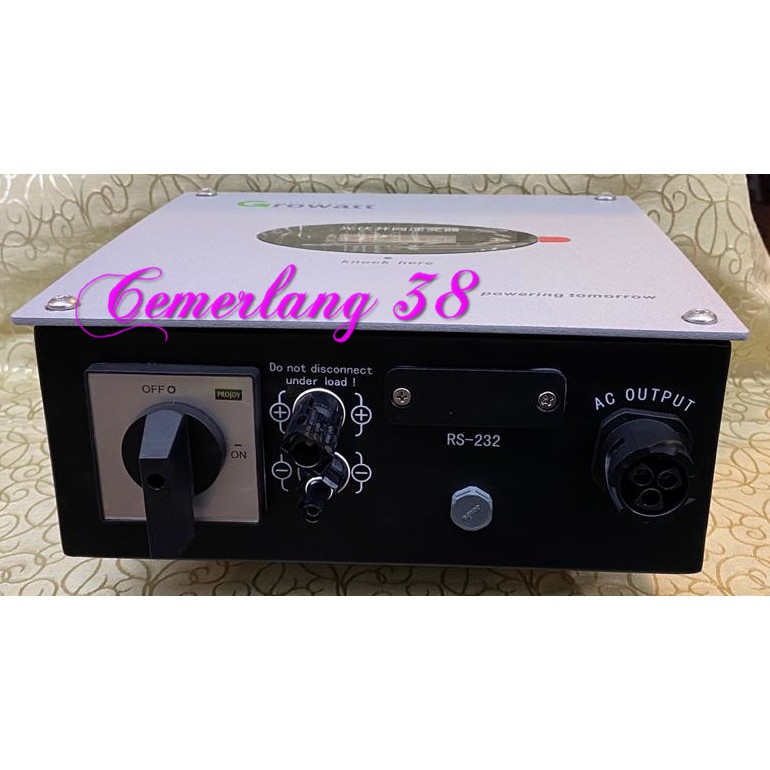

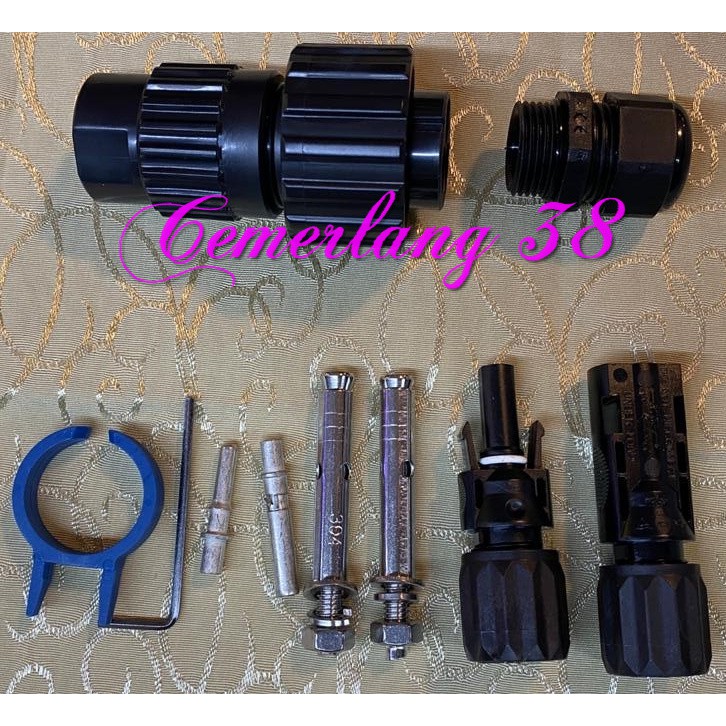

- DC Connection : H4/MC4(opt)
- AC Connection : Connector

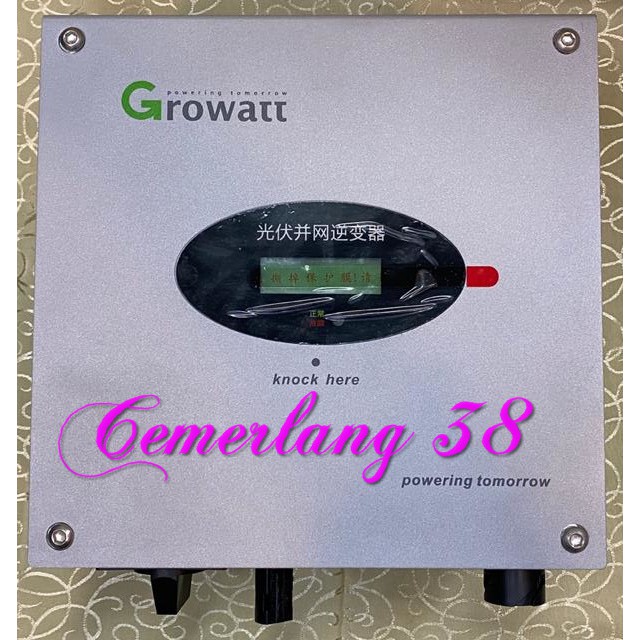

- Display : LCD
- Interfaces : RS232 / RF / Wi-Fi / LAN / GPRS : Yes/Opt/Opt/Opt /Opt
Dimenssions (W / H / D) in mm : 271 * 267 * 142 mm

Maaf TIDAK ADA GARANSI TOKO
KLIK = MEMBELI = SETUJU, NO COMPLAINT / NO

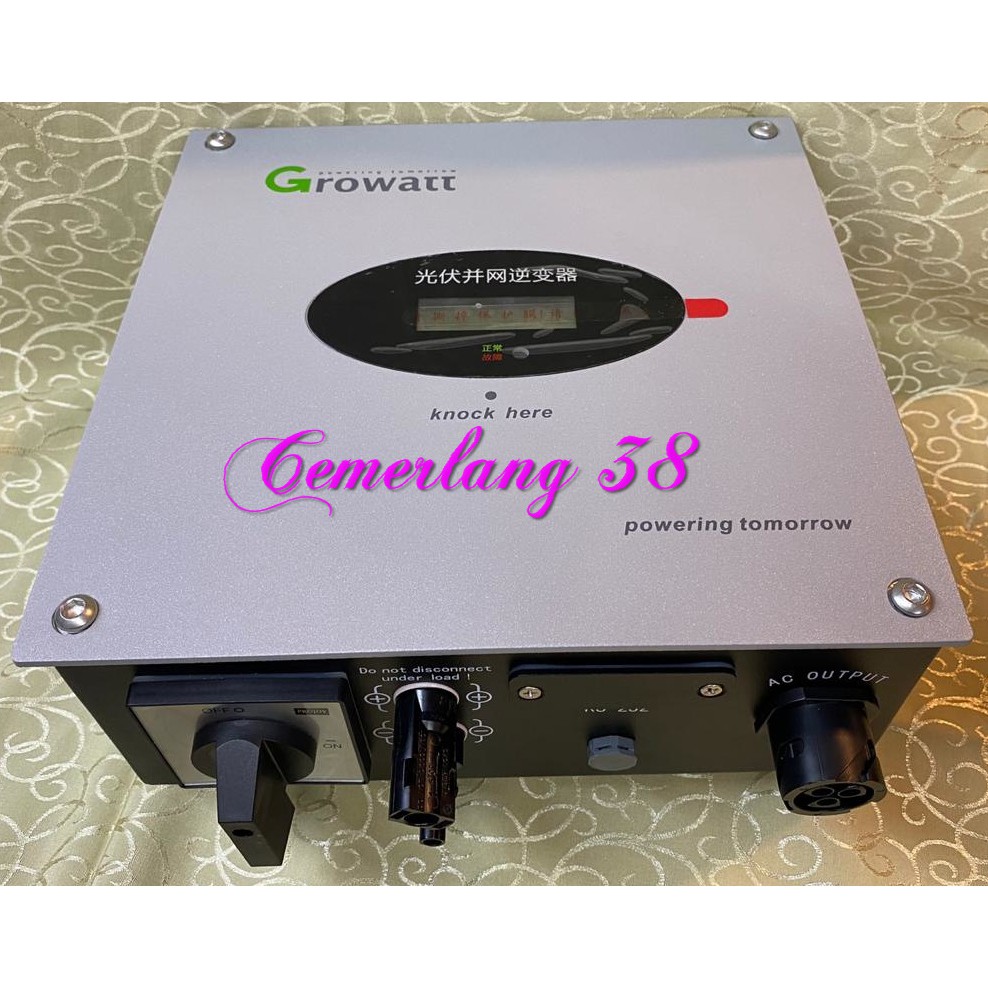

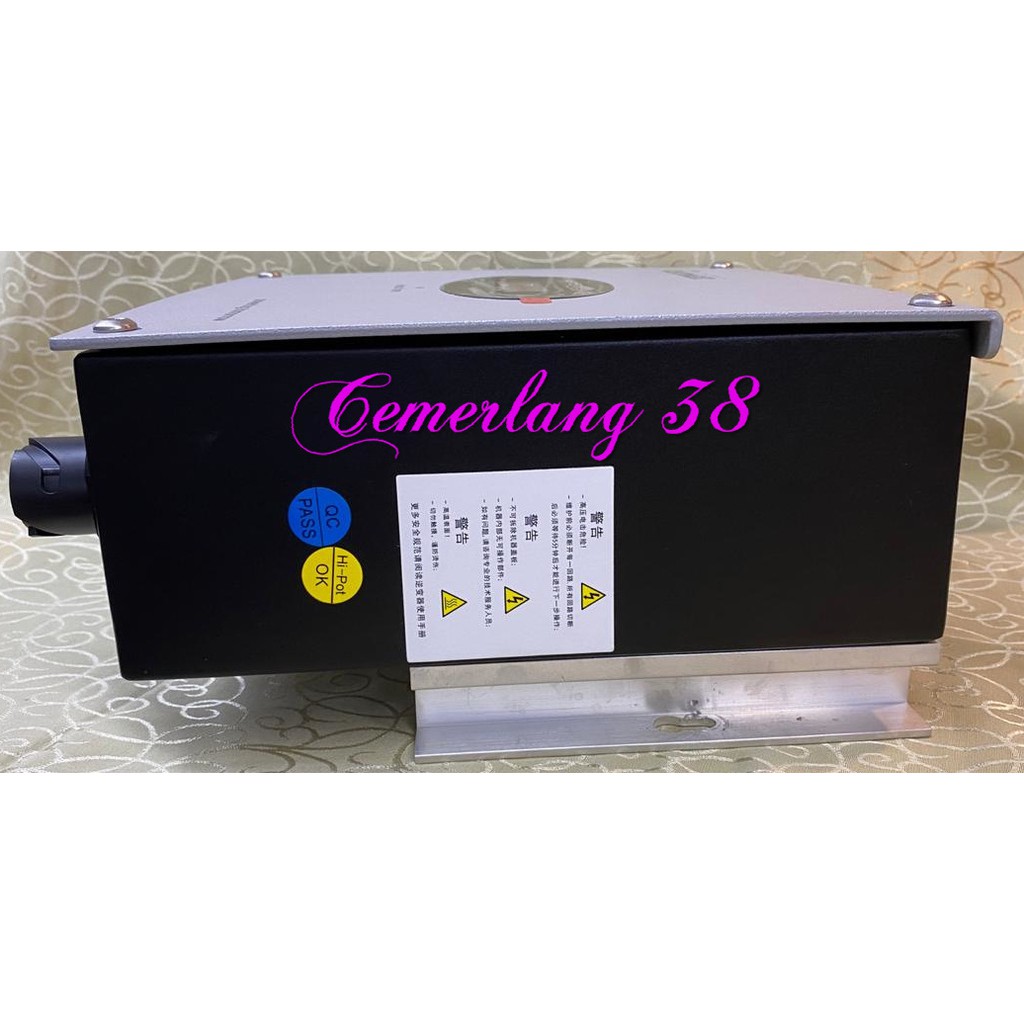

Gambar produk
