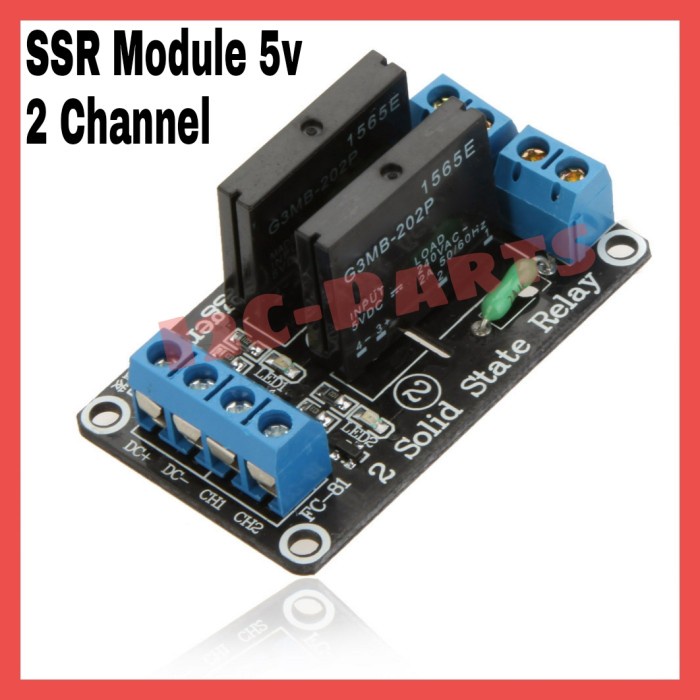

Detail 2 Channel SSR Low Level Solid State Relay Module 5V DC G3MB 202P

Features:
1. Omron 5V solid state relay 240V 2A, output with resistive fuse 240V 2A.
2. Size: 55.0mm*33.3mm*24.0mm (length * width * height)
3. Weight: 19.6g (net weight)
4. Packaging: Single module electrostatic bag packaging
5. Input power: 5V DC (<=160MA)
6. Trigger signal voltage:
Low level: 0-1.5V state low level relay ON
High level: 2.5-5V state high level relay OFF
7. The blue KF301 terminal is more convenient to connect to the control line.

Work area: Input power: 5V DC (<=160MA)
Trigger signal: (0-1.5V state low level relay ON)
(2.5-5V state high level relay OFF)

Precautions:
1. The power supply of the module: the power supply must be DC, 5V power supply
2. The control terminal voltage of the module: This module can only be used to control AC current, not DC current.
