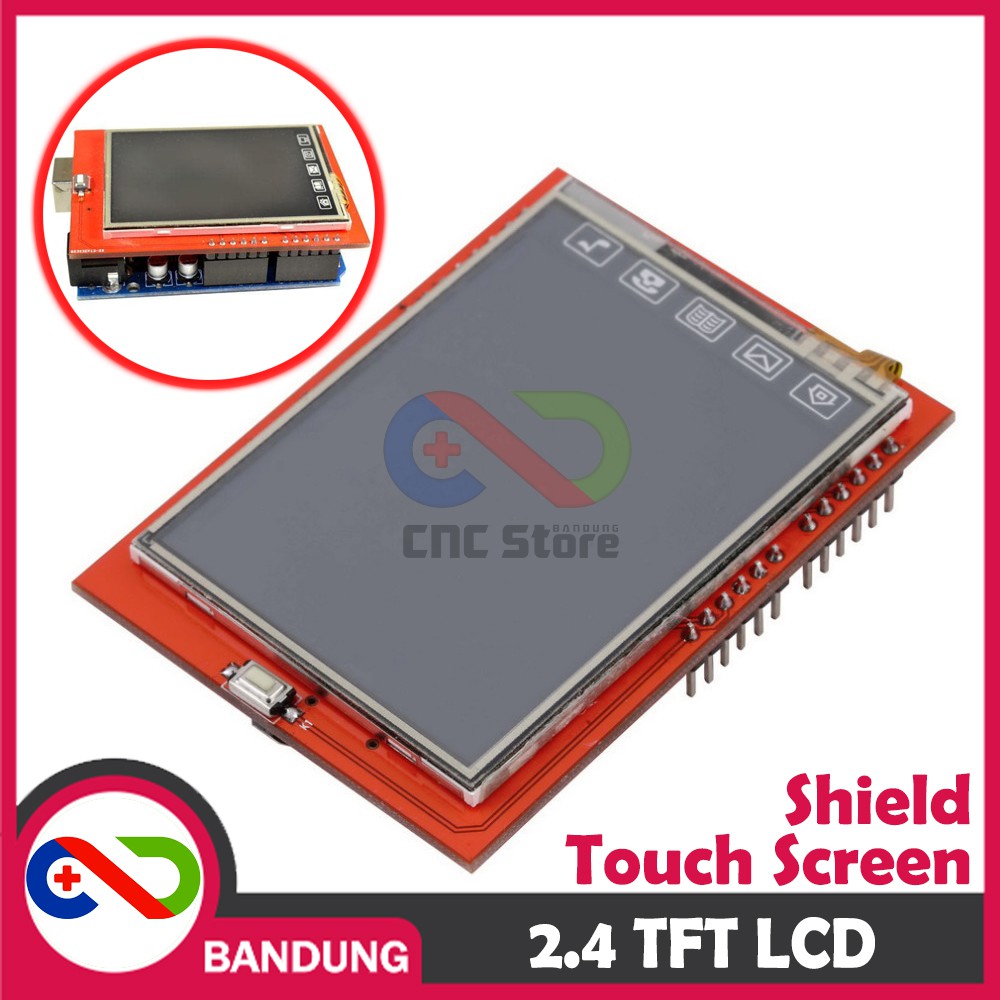

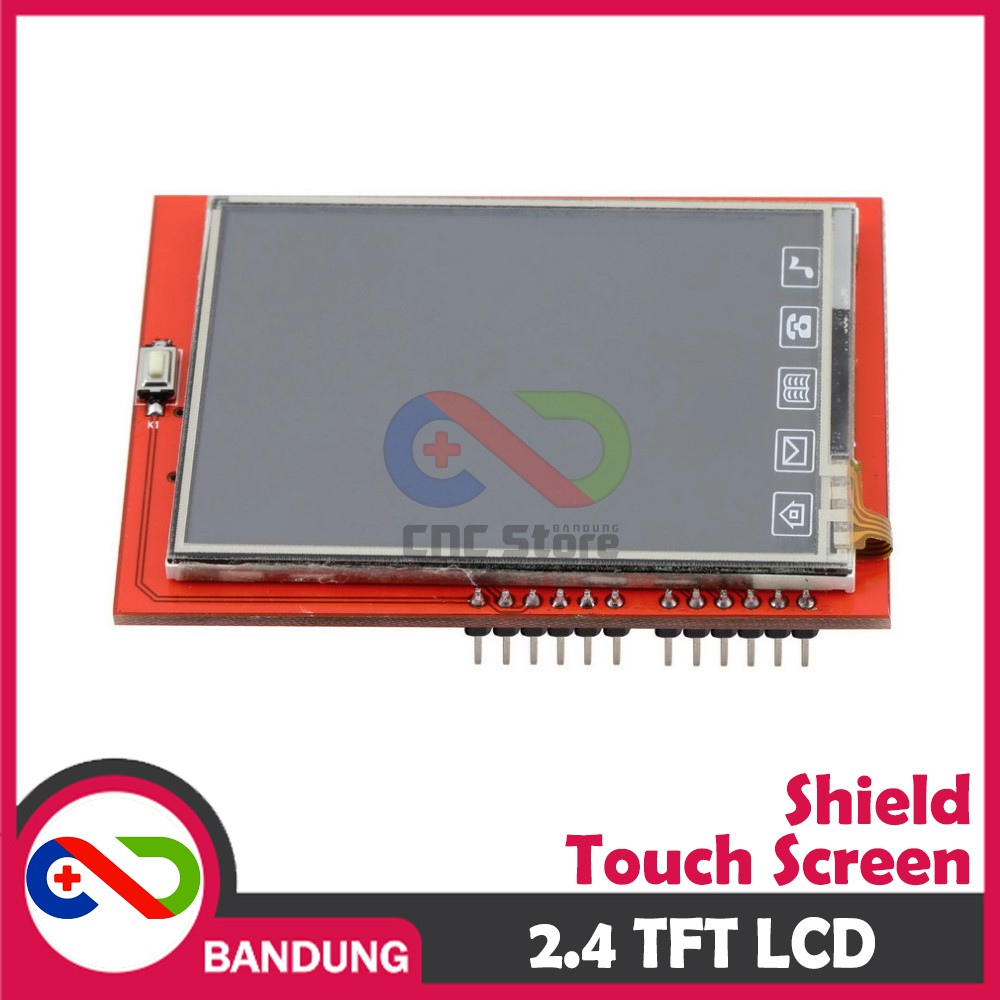

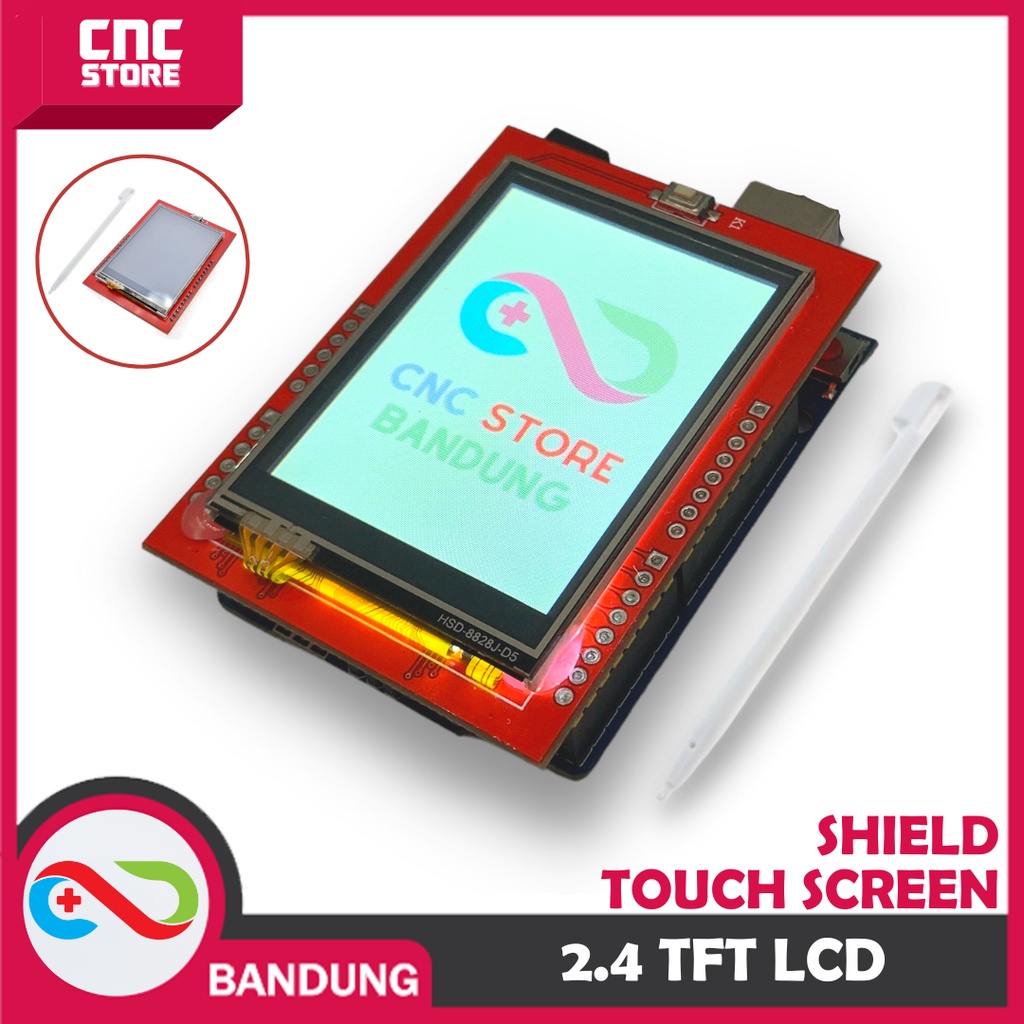

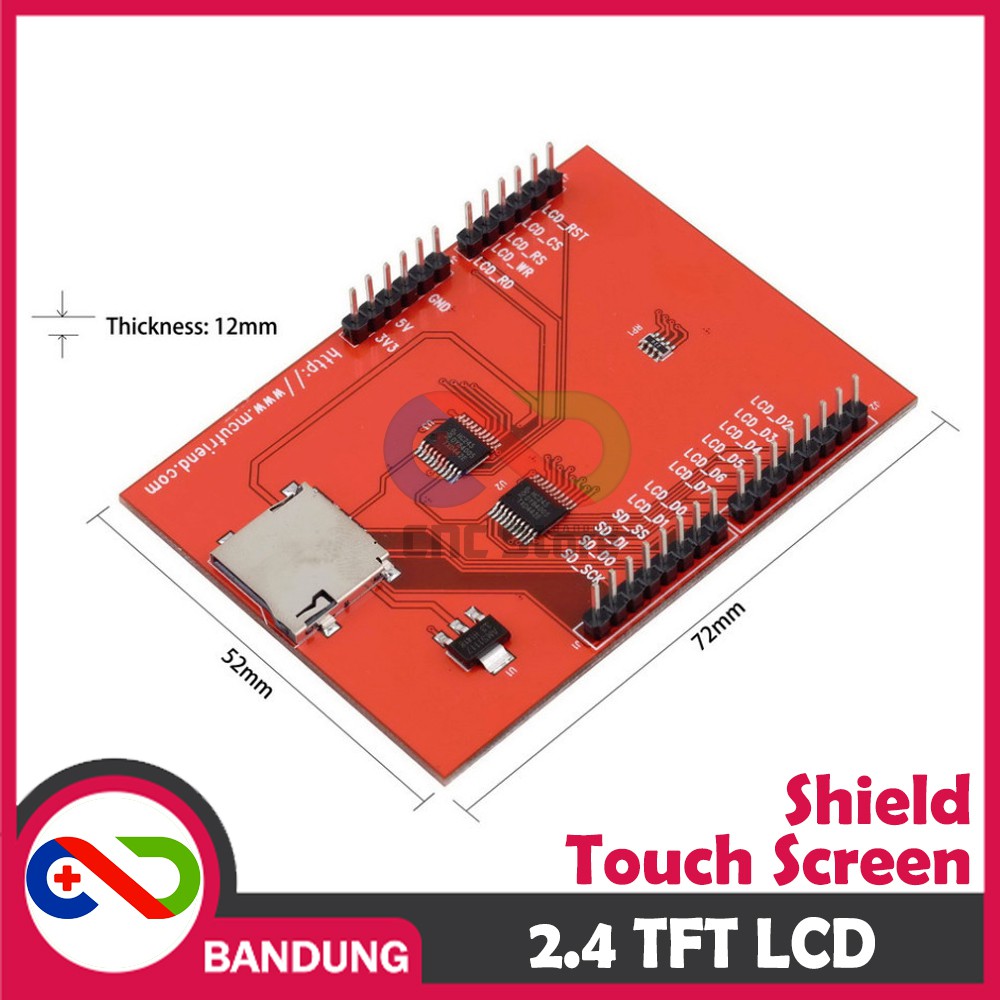

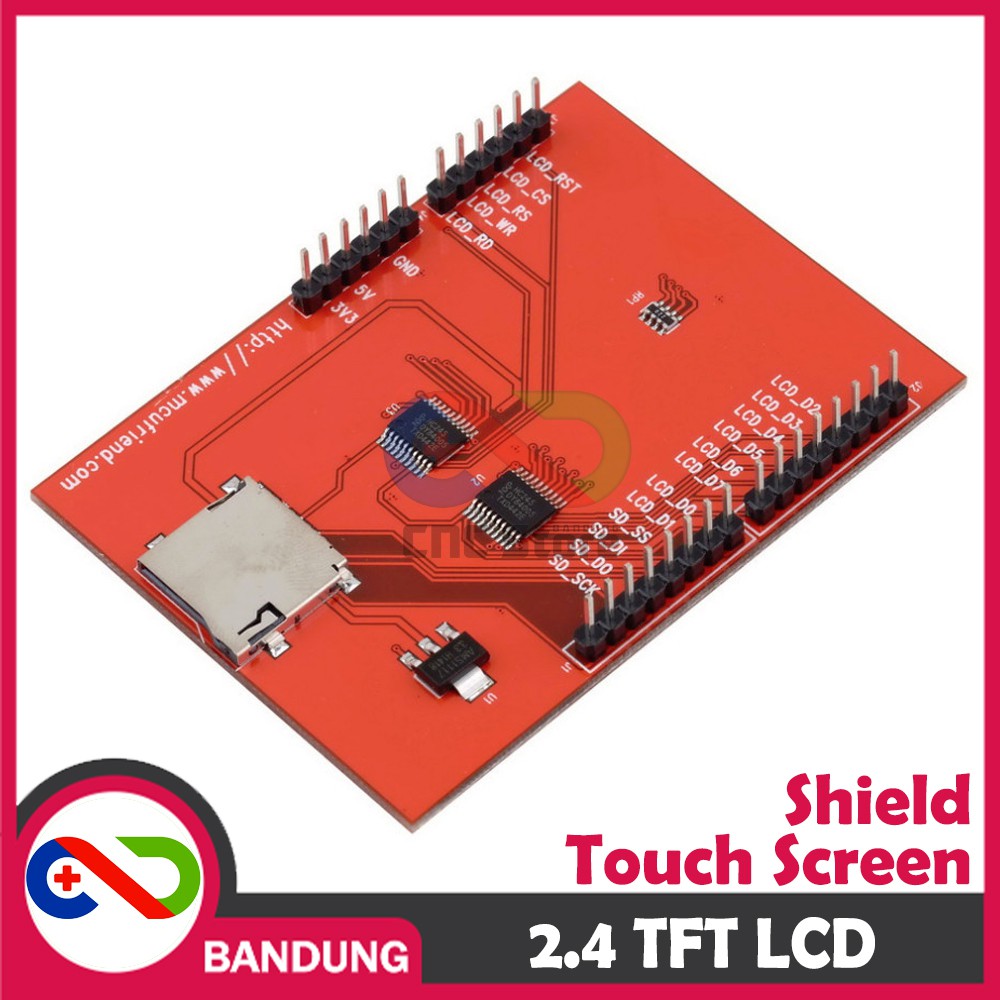

2.4 TFT LCD TOUCH SHIELD MODULE FOR ARDUINO UNO MEGA

Detail 2.4 TFT LCD TOUCH SHIELD MODULE FOR ARDUINO UNO MEGA

DSP-0001
========

Deskripsi:
==================================
The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you\'ll have it running in under 10 minutes! Works best with any classic (UNO/Duemilanove/Diecimila). This shield does NOT work with the Mega but its going to be half the speed of the Uno-type boards because of the way the Mega rearranges all the pins (there is no way to get around this!) This shield is not Leonardo-compatible

Description:
Spice up your project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4" diagonal) bright (4 white-LED backlight) and colorful (18-bit different shades)! 240x320 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Technical Details:
===================================
- 2.4" diagonal LCD TFT display
- 240x320 resolution, 18-bit (color spfd5408 controller with built in video RAM buffer)
- 8 bit digital interface, plus 4 control lines
- Uses digital -3. That means you can use digital nd 5. not using the microSD
- Works with any ATmega328 or Mega (Leonardo not supported yet)
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
- 4-wire resistive touchscreen

Produk Terkait:
==================================
Untuk LCD dengan ukuran yang berbeda-beda bisa langsung cek etalase kita yah:
https://shopee.co.id/shop/62956347/search?page=0&shopCollection=19513218

Paket : 1x 2.4 TFT TOUCH LCD SCREEN SHIELD MODULE FOR ARDUINO UNO
