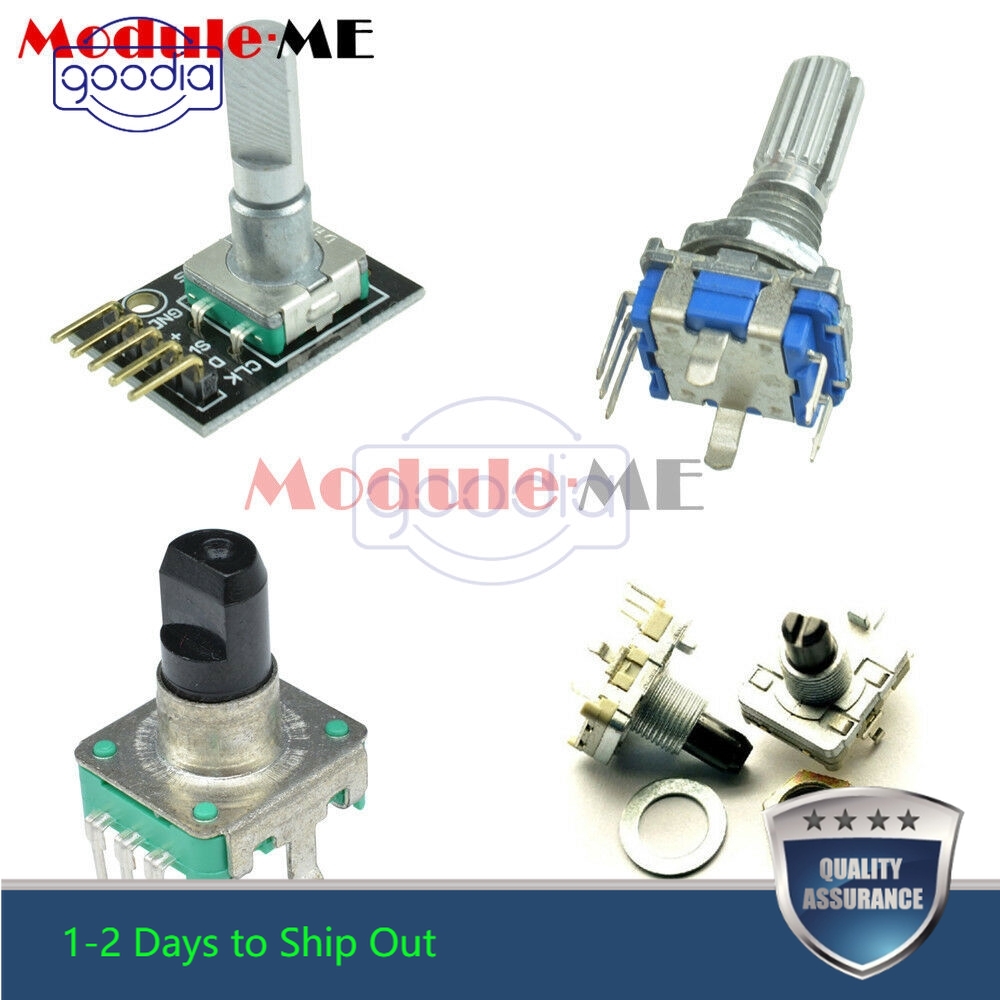

1PC Rotary Encoder EC12 EC16 EC11 Rotary Encoder Module Brick Sensor F Arduino

Detail 1PC Rotary Encoder EC12 EC16 EC11 Rotary Encoder Module Brick Sensor F Arduino

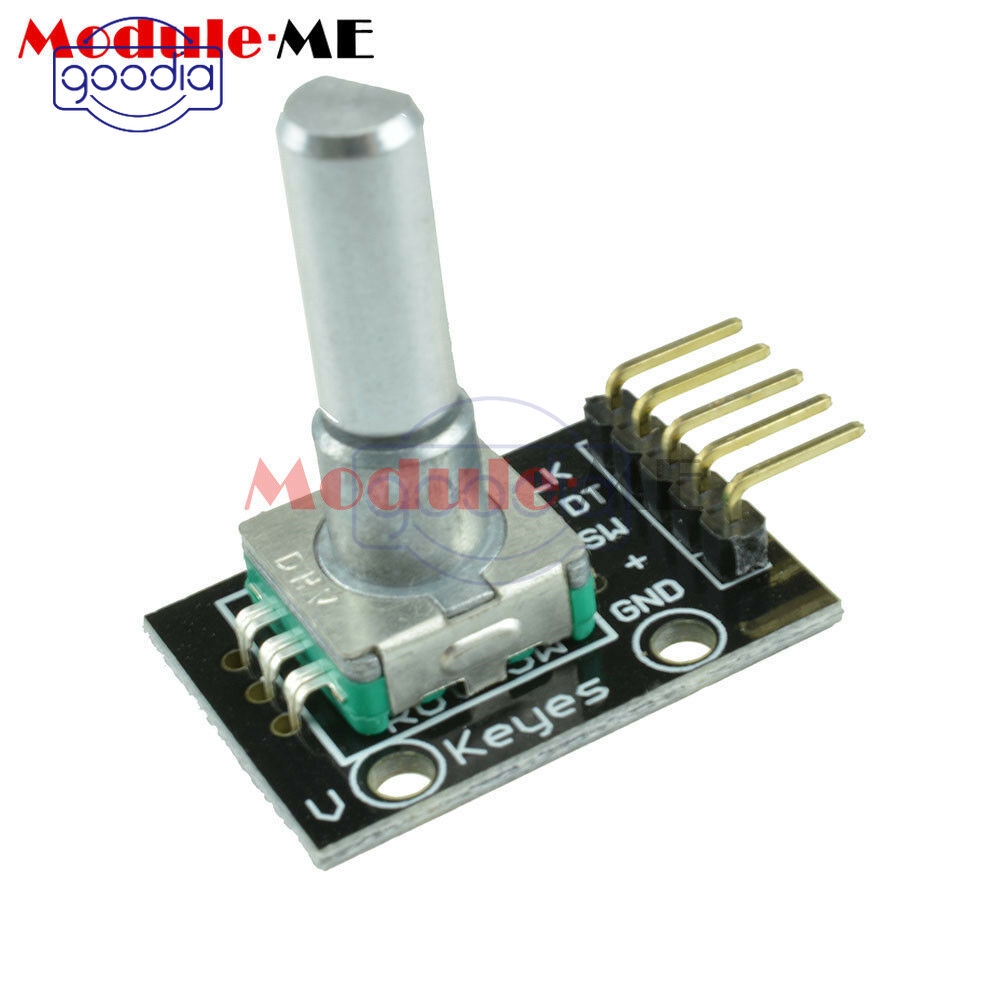

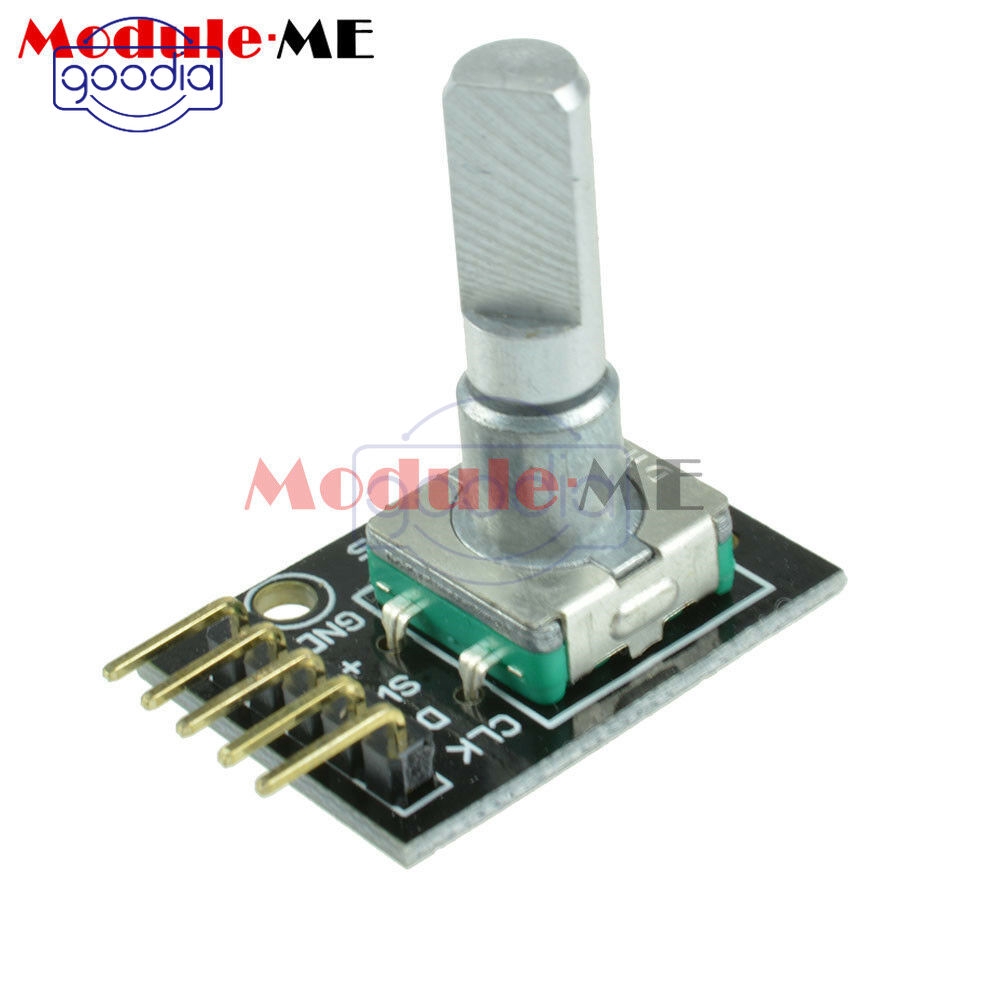

Rotary Encoder Module
100% Brand new and high quality.
Material: Electronic components + PCB
Size: About 31 * 19 * 29mm / 1.22" * 0.75" * 1.14"
Main color: Black
Working voltage: 5V
Pulse circle: 20
By rotating the rotary encoder can be counted in the positive direction and the reverse direction during
rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not
limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0.
Package Included:2 x Rotary Encoder Module Brick Sensor Development Board For Arduino


EC16 15mm without switch
Body Dimension: 19mm x 16mm
Shaft Length: 15mm
Shaft Diameter: 6mm
Package Included:2 x  Rotary encoder with switch EC16 Audio digital potentiometer 15mm handle

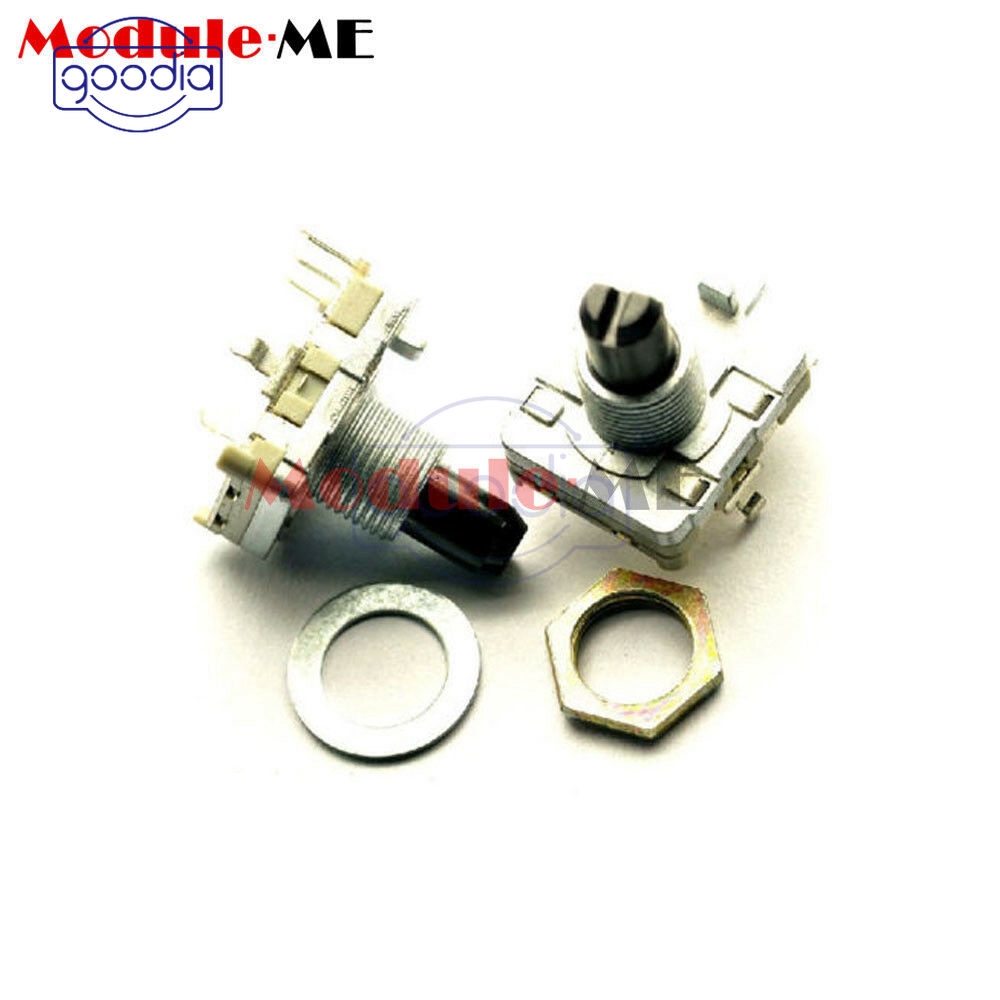

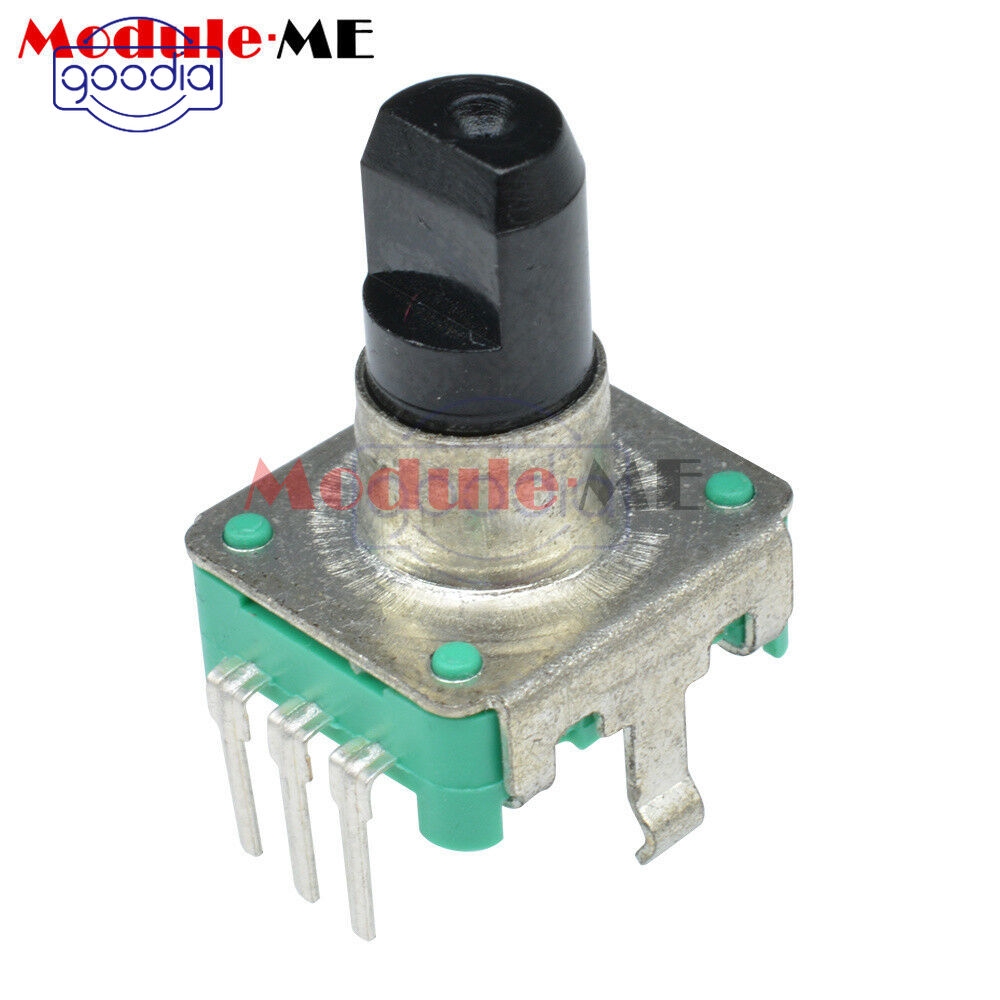

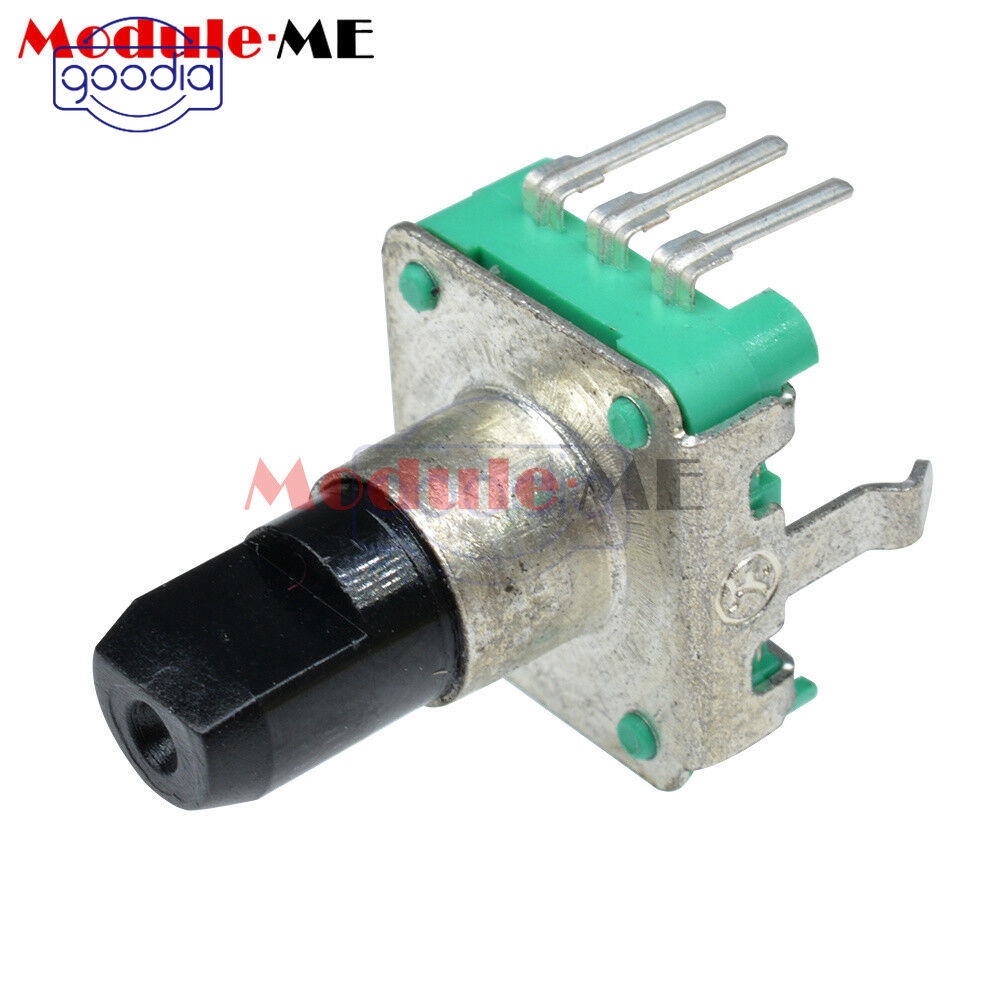

EC12 5mm without switch
Max. Rating: 10 mA 5 VDC
Operating Temperature Range: -30 to 70 degrees celsius
Storage Temperature Range: -40 to 85 degrees celsius
Rotational Life: 30000 cycles minimum
Switch Life: 20000 cycles minimum
location number:20
Pulse number:20
total rotation Angle:360°
phase difference：0.08T
Can be used for data entry as with modern in car CD players,
for volume & on/off control or data selection via LED or LCD display
Perfect for use with PIC or ATMEL microcontrollers
Package Included:2 x Rotary encoder with switch EC12 Audio digital potentiometer 5mm handle

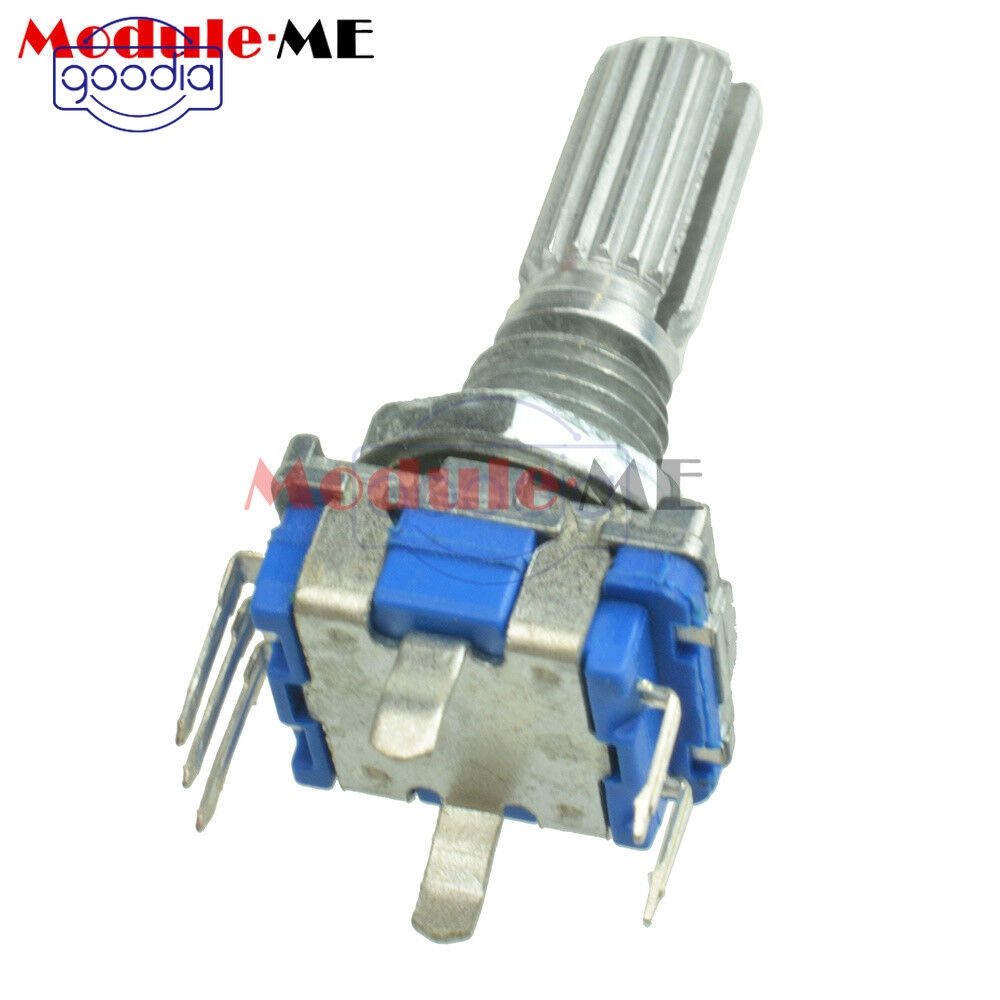

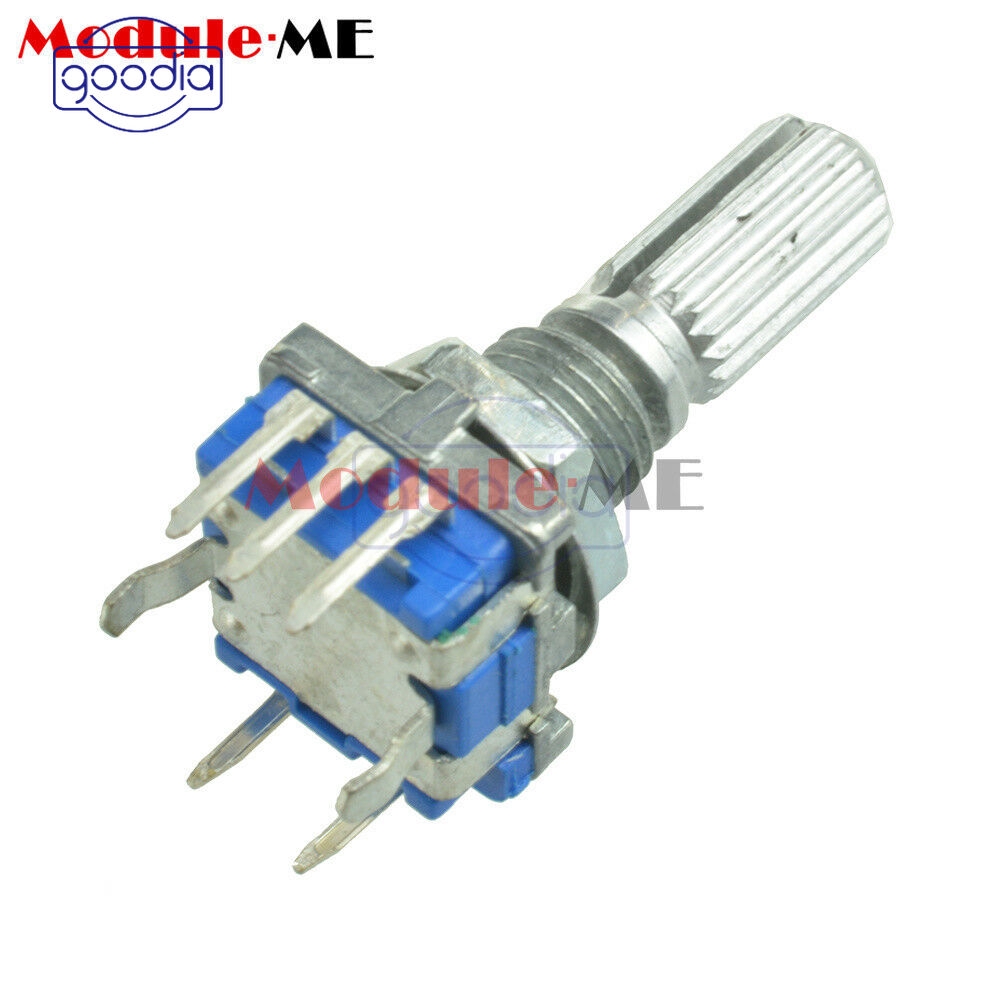

EC11 20mm with switch
1.Location number : 20
2.pulse number : 20
3.operating life : 30000 times
Package included:2 x Rotary encoder with switch EC11 Audio digital potentiometer 20mm handle
