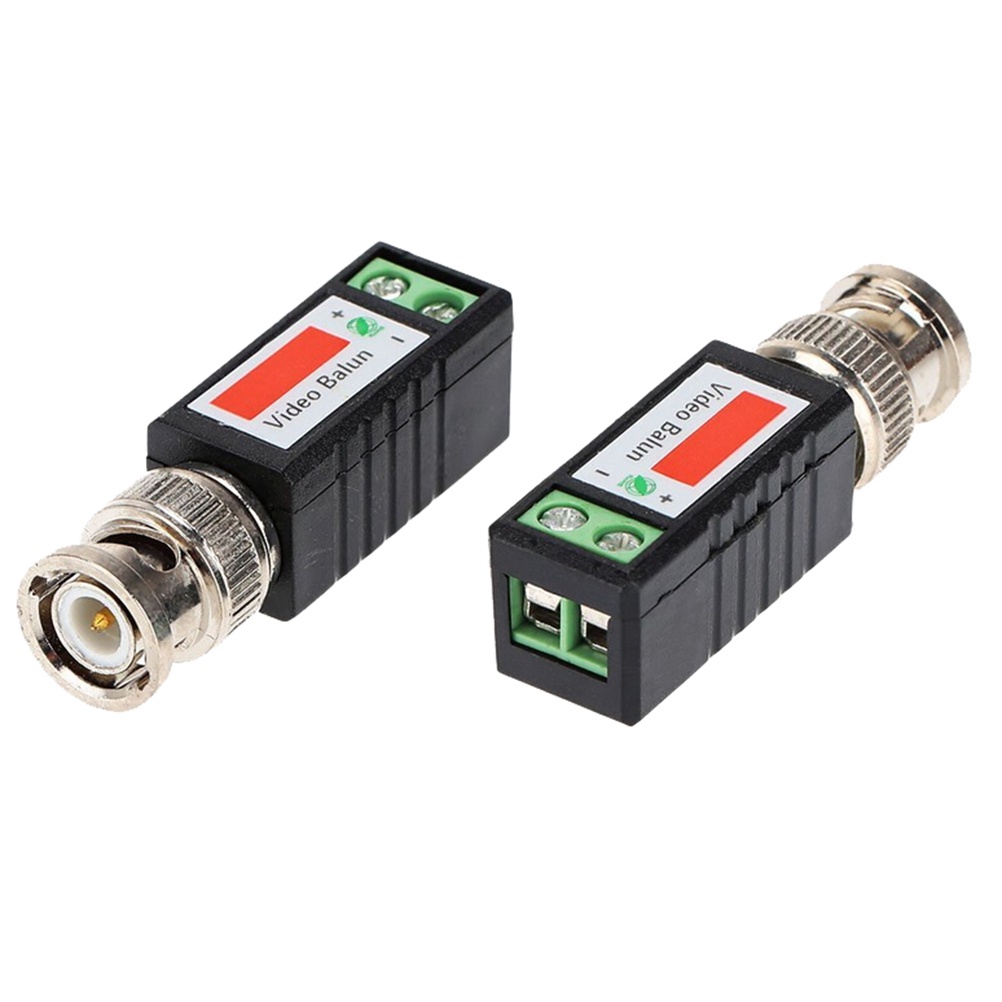

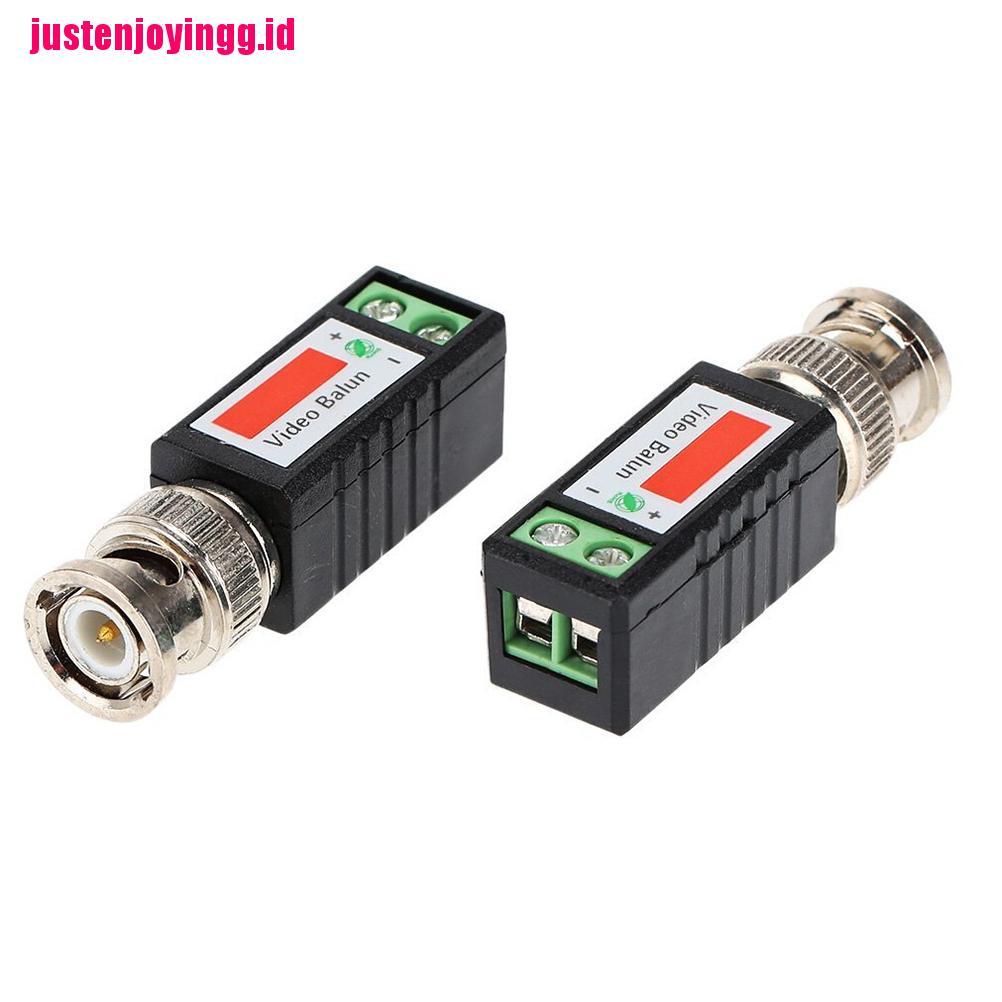

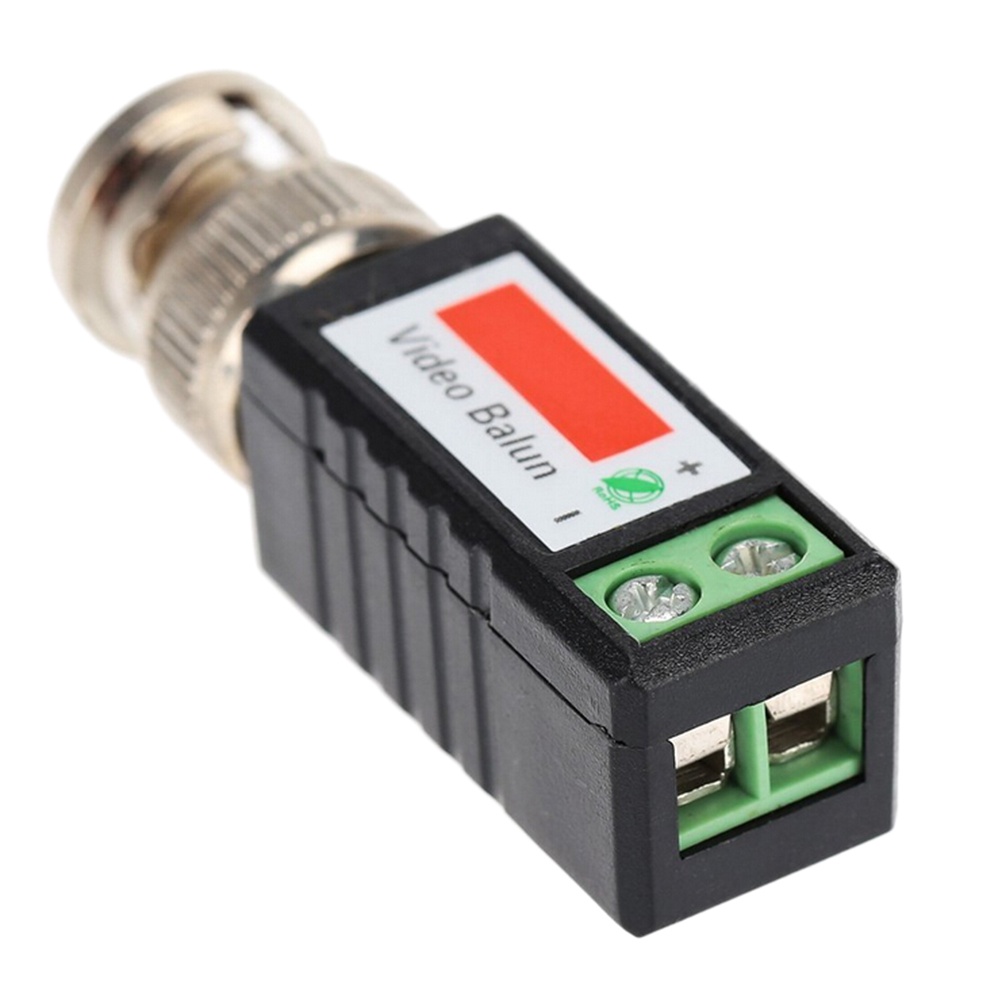

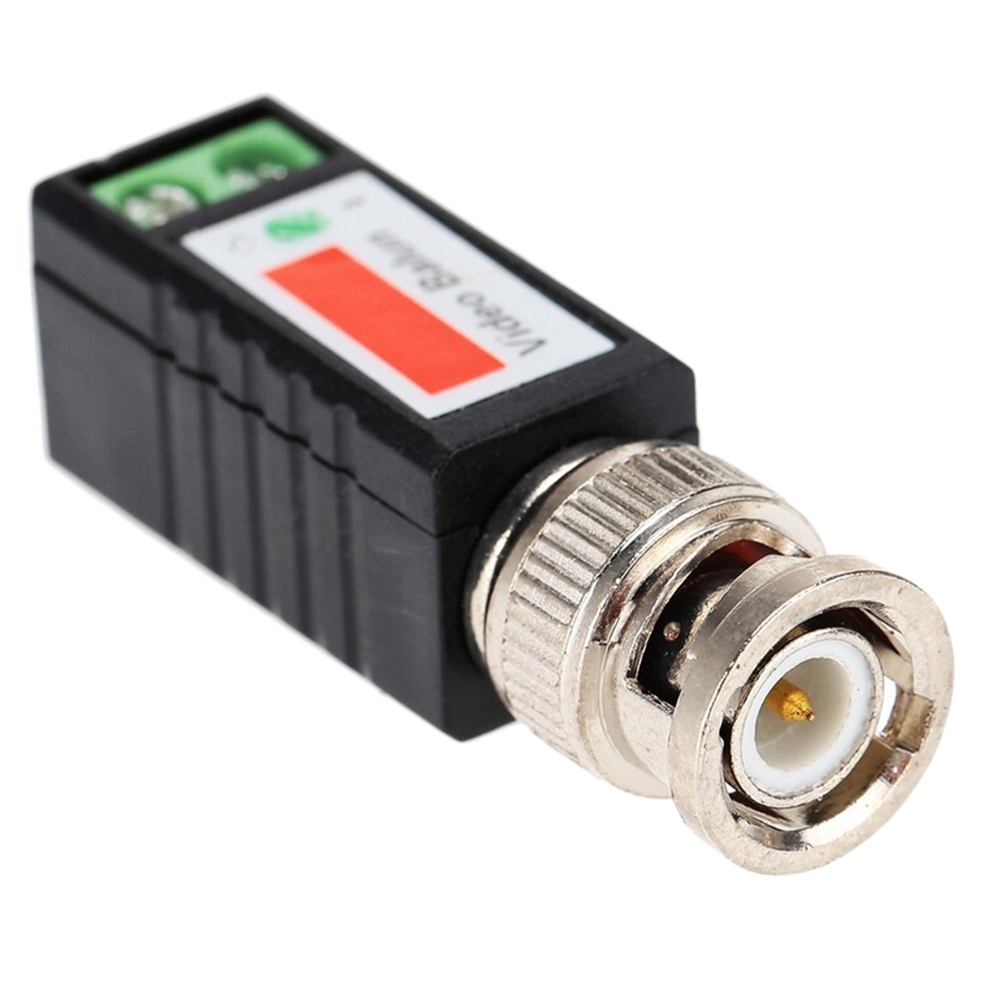

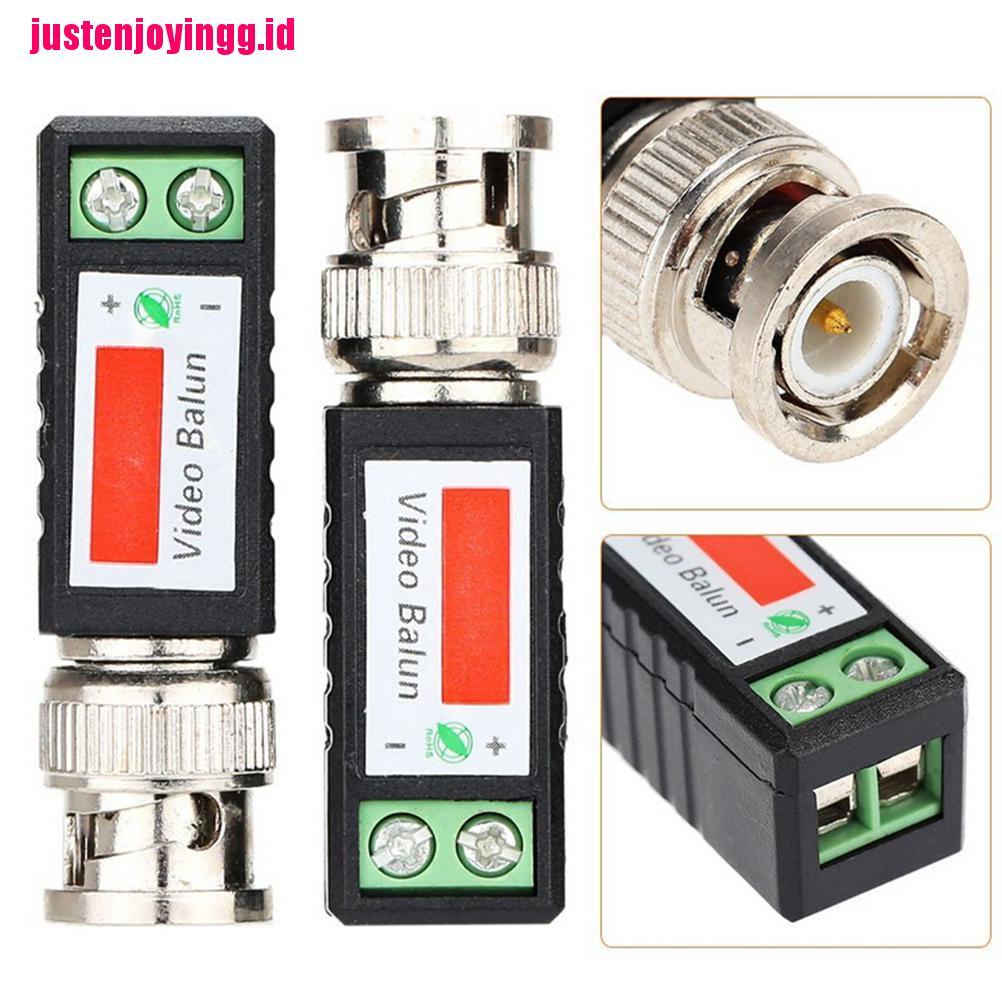

Detail 1pc Konektor Coax CAT5 Pasif BNC Video Balun Ke UTP Untuk Kamera CCTV
Brand new and high quality
Single channel passive video balun
Video transmission via UTP CAT5 cable
Support all video device, such as camera, monitor, DVR card and recorder etc
Full-mition CCTV video at distances up to 2000 ft
Outstanding interference rejection and transient protection
Male BNC allows connection directly to the camera or DVR
Support NTSC, PAL, and SECAM video formats
No power required
Save lots of Extra Cable Money
Loss Ratio: >2dB
Rejection Ratio: <15dB
Interference: >40dB
Input Impedance: 75 ohms
Output Impedance: 100 ohms
Frequency Response: DC-6MHz.
Size: 4.6cm x 1.3cm x 1.3cm - 1.8inch x 0.51inch x 0.51inch
Package Included:1 x Video Balun Transceiver
