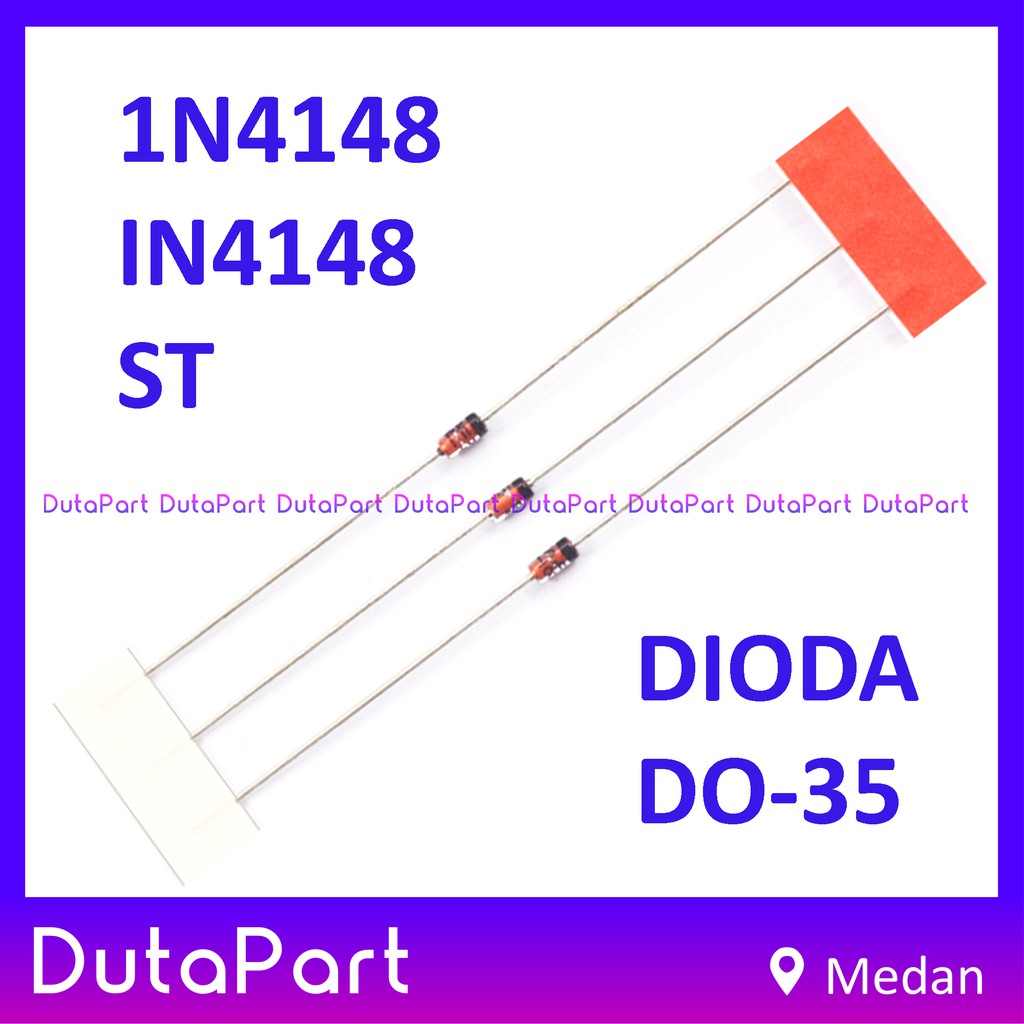

1N4148 IN4148 1N IN 4148 200mA 100v Dioda Fast Switching Diode DO-35

Elektronik > Elektronik Lainnya > 1N4148 IN4148 1N IN 4148 200mA 100v Dioda Fast Switching Diode DO-35

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Duta PartLihat semua produk Elektronik oleh Duta Part

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail 1N4148 IN4148 1N IN 4148 200mA 100v Dioda Fast Switching Diode DO-35

1N4148 IN4148 1N 4148 IN 4148 200mA 100v Fast Switching Diode DO-35

*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***

Description :
Absolute maximum ratings (stress ratings, consult datasheet for recommended ratings)
VRRM = 100 V (maximum repetitive reverse voltage)
IO = 200 mA (average rectified forward current)
IF = 300 mA (DC forward current)
If = 400 mA (recurring peak forward current)
IFSM = 1 A at 1 s pulse width; 4 A at 1 µs pulse width (non-repetitive peak forward surge current)

Electrical and thermal characteristics
VF = 1 V at 10 mA (maximum forward voltage)
VR = 75 V at 5 µA; 100 V at 100 µA (minimum breakdown voltage and reverse leakage current)
trr = 4 ns (maximum reverse-recovery time)
PD = 500 mW (maximum power dissipation)

Untuk info seputar hal teknis dan lainnya, Hubungi kami
