164pcs Tabung Kabel Kawat Menyusut Dengan Panas

Detail 164pcs Tabung Kabel Kawat Menyusut Dengan Panas

Feature:
100% brand new and high quality.
Good electrical, mechanical and chemical performance.
Suitable for electrical insulation, wire bundling, colour coding, mechanical protection, wire/cable joints and repairs etc.
Ideal for Hobbyists and Model Makers, Electrical, Electronic, Automotive and General Purpose uses.
Select the size and length required from the menu above.

Specifications:
Quantity: 164pcs
Color: Black,Orange,Yellow,Blue,Green
Material: Polyolefin
Shrinkage Ratio: 2:1 (will maximum shrink to 1/2 its supplied diameter)
Operating Temperature: -55°C to +125°C
Minimum Shrinkage Temp: +70°C
Full Shrinkage Temp: +110°C Maximum
Tensile Strength: 10.4 Mpa
Dielectric Strength:15 kV/mm
Flammability: Flame Retardant
Approvals: UL Approved

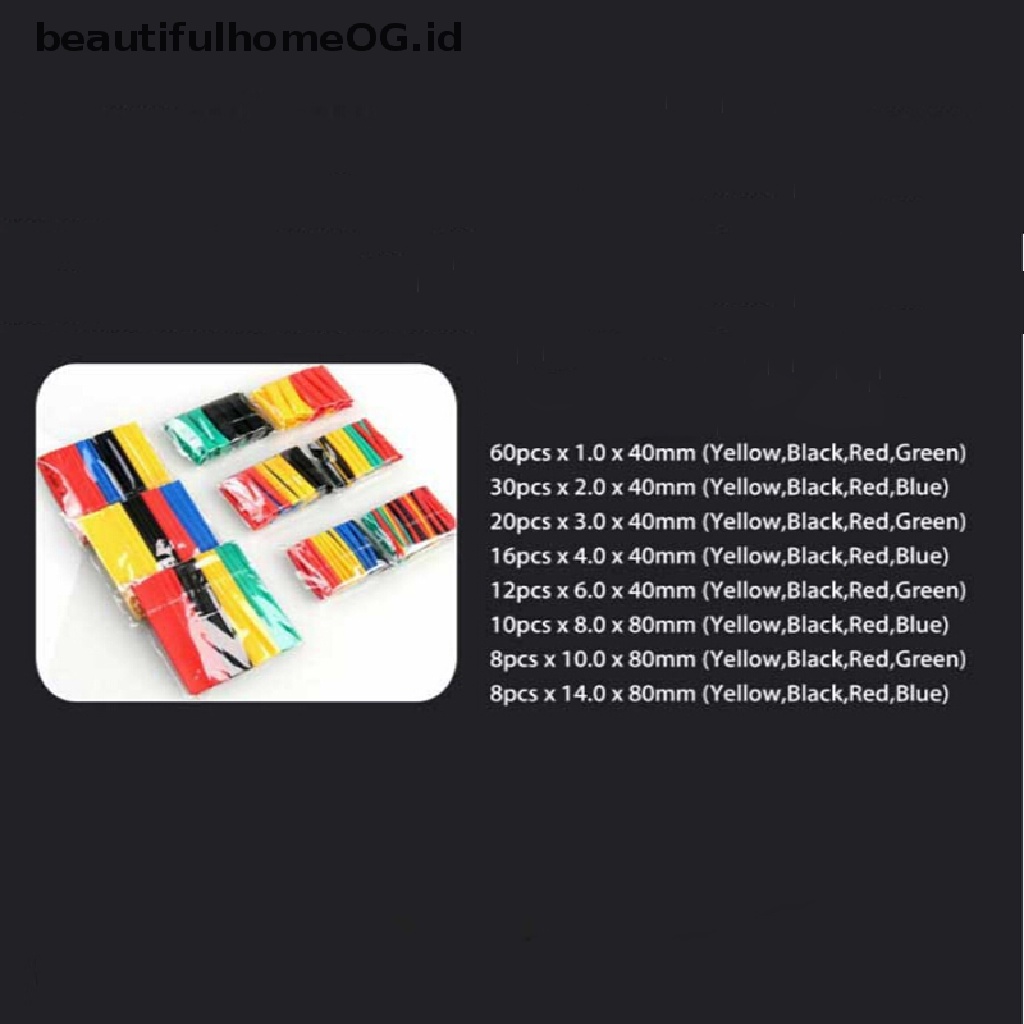

Each Size Includes: (Quantity x Supplied Internal Diameter x Single Length)

164pcs:
60pcs x 1.0mm x 40mm (Yellow,Black,Red,Green)
30pcs x 2.0mm x 40mm (Yellow,Black,Red,Green)
20pcs x 3.0mm x 40mm (Yellow,Black,Red,Green)
16pcs x 4.0mm x 40mm (Yellow,Black,Red,Green)
12pcs x 6.0mm x 40mm (Yellow,Black,Red,Green)
10pcs x 8.0mm x 80mm (Yellow,Black,Red,Green)
8pcs x 10.0mm x 80mm (Yellow,Black,Red,Green)
8pcs x 14.0mm x 80mm (Yellow,Black,Red,Green)

Package included:
1 x 164pcs Heat Shrink Tubing

Gambar produk
