15A DC Buck Converter Step Down Power Adjustable Voltage Regulator

Detail 15A DC Buck Converter Step Down Power Adjustable Voltage Regulator

Module : 15A synchronous-rectified buck
Module Properties: non-isolated step-down module (BUCK)
Input voltage: DC4-32V (Limit 36V)
Output voltage: DC1.2-32V continuously adjustable
Minimum differential pressure input and output: 1V
Output current :0-15A 10A long natural cooling, the temperature does not exceed 60 degrees, the peak of up to 20A. Decrease the amount of higher ambient temperatures use.
Operating temperature: -40 to +85 °C
Operating Frequency: 150KHz
Conversion efficiency: Up to 98% (efficiency and input and output voltage, current, pressure related)
Short circuit protection: Yes (limit current 25A) input fuse is 15A
Over-temperature protection: Yes (over-temperature automatically reduce the output current)
Input Reverse Polarity Protection: None (if required in the input string into the diode)
Installation: four 3mm screws
Connection: terminals, solderless, V-IN as an input, V-OUT is an output
Module dimensions: length 60mm width 51mm height 22mm

Applications:

This module can be applied to the input voltage is higher than the output voltage of the buck areas, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial equipment buck, 12V turn 3.3 V, 12V turn 5V, 24V turn 5V, 24V to 12V and so on

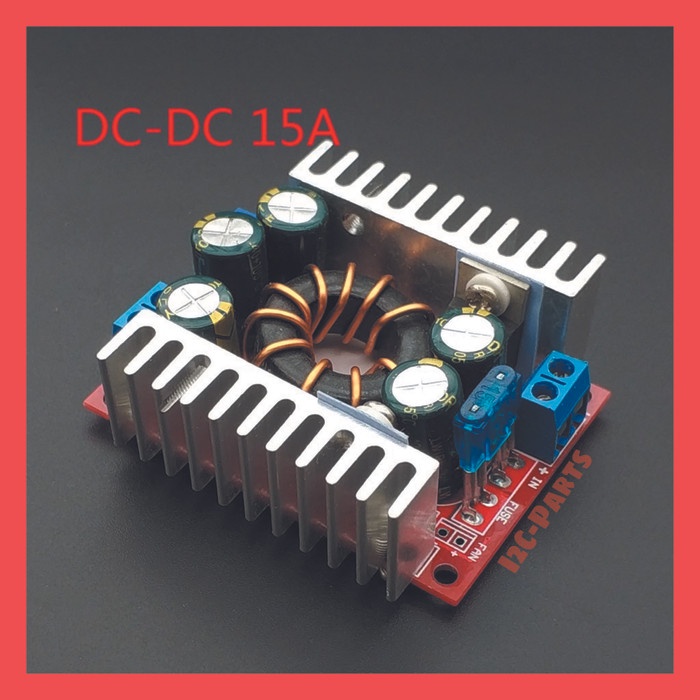

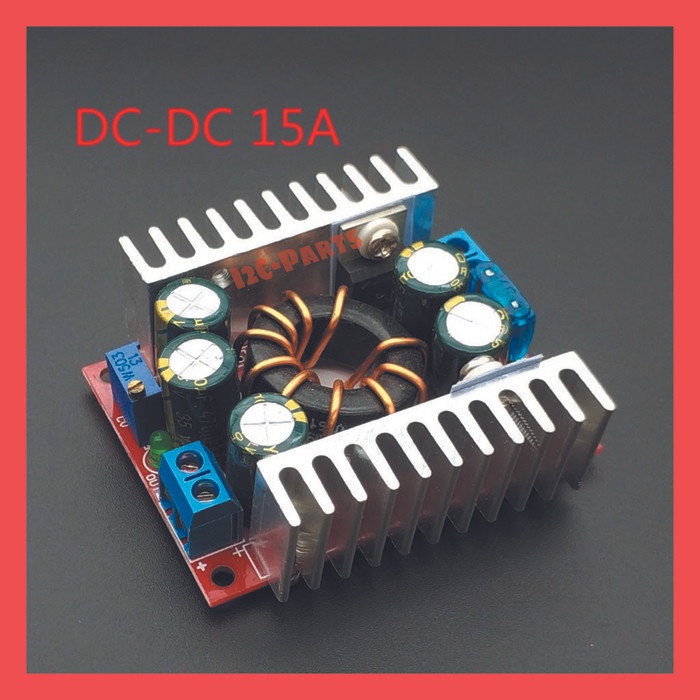

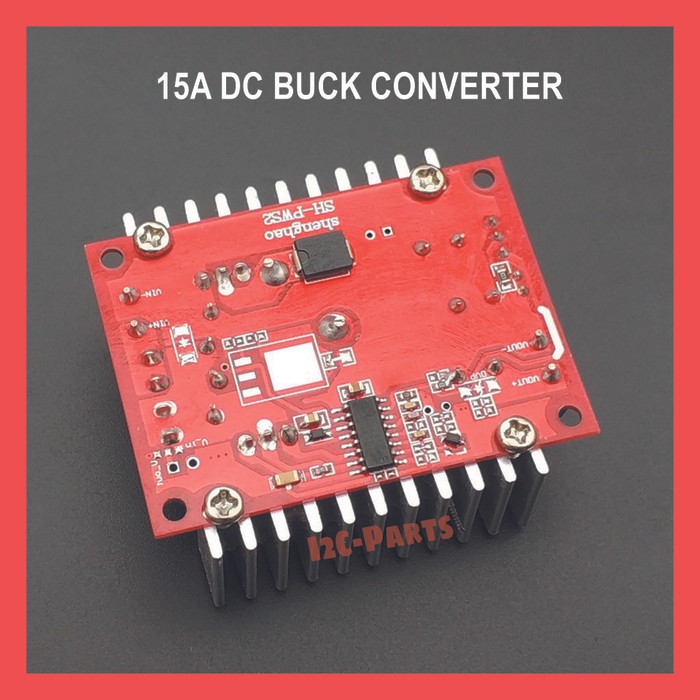

Gambar produk
