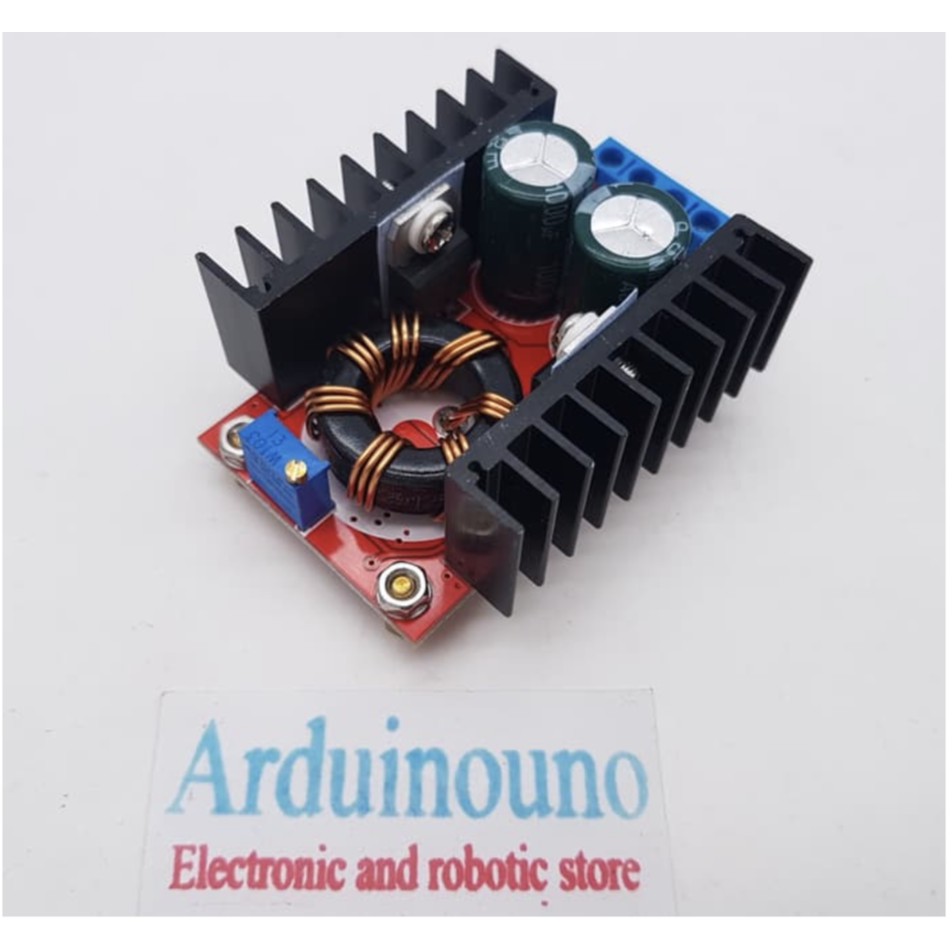

150W Step Up Module DC-DC Boost Converter Adjustable Power Supply

Detail 150W Step Up Module DC-DC Boost Converter Adjustable Power Supply

Deskripsi 150W Step Up Module DC-DC Boost Converter Adjustable Power Supply

Module parameters
Module Properties: non-isolated step-up module
Module Size: Length 65MM * High 23MM * (width 56.5MM including heat sink)
Input: IN + input positive stage, IN- input negative
Output way: OUT + output positive level, OUT- output negative
Wiring : solderless terminal
Input voltage: 10 -32 V
Output voltage: ( 1) continuously adjustable (12-35V) Our default shipping voltage 19V
(2) fixed output (arbitrary choice between 12-35V), purchase please tell the shopkeeper.
Output Current: 6A (MAX)
Input Current: 10A (MAX) (more than 10A, please enhance heat dissipation,)
Output power: natural cooling 100W (MAX), plus fan 150W (MAX)
Operating temperature: Industrial grade (-40 to + 85 ) (ambient temperature exceeds 40 degrees, lower power use, or plus fan)
Full load temperature rise: 45
Load current: Typical 25mA
Short circuit protection : None (Please install overcurrent protection at the input device)
Input reverse polarity protection : None, the input diode in series

Gambar produk
