150W DC-DC BOOST CONVERTER 10-32V TO 12-35V 6A STEP UP

Detail 150W DC-DC BOOST CONVERTER 10-32V TO 12-35V 6A STEP UP

**Aplikasi:
1. Universal power supply utk laptop dalam mobil
Mudah menghidupkan notebook dual core 65w-90w. Dengan input 12v aki untuk laptop 19v 3.42A, modul hanya bersuhu 45C
2. Mengecas aki 24v dari input/aki 12v
3. Menghidupkan peralatan elektronik yang bertegangan tinggi (12-35V DC) dan rakus daya
4. Power driver untuk LED 20w-100w
5. Mengubah tegangan panel surya 12v menjadi tegangan yang lebih tinggi

**Spesifikasi:
Module Properties: non-isolated step-up module (BOOST)
Wiring: solderless terminal
Input voltage: 10-32V DC (input voltage can not be higher than the output voltage, the output stable at the set value)
Output voltage: 12-35V DC (adjustable)
Output current: 10A (MAX)
Input current: 16A (MAX) (more than 10A please strengthen heatsink)
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power
Conversion efficiency: 94% (when Output 19V 2.5A Input 16V)
Output ripple: 2% (MAX)
Working temperature: industrial (-40 to +85 C) (environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling)
Full-Load temperature: 45 degrees
No-load current: 25mA typical
Voltage regulation: +/- 0.5%
Load regulation: +/- 0.5%
Dynamic response speed: 200uS +/- 5%
Short circuit protection: No (Please install a fuse or protection circuit at input parts)
Input Reverse protection: No (Please connect a diode at input parts)
Dimension: 65x3523.5mm

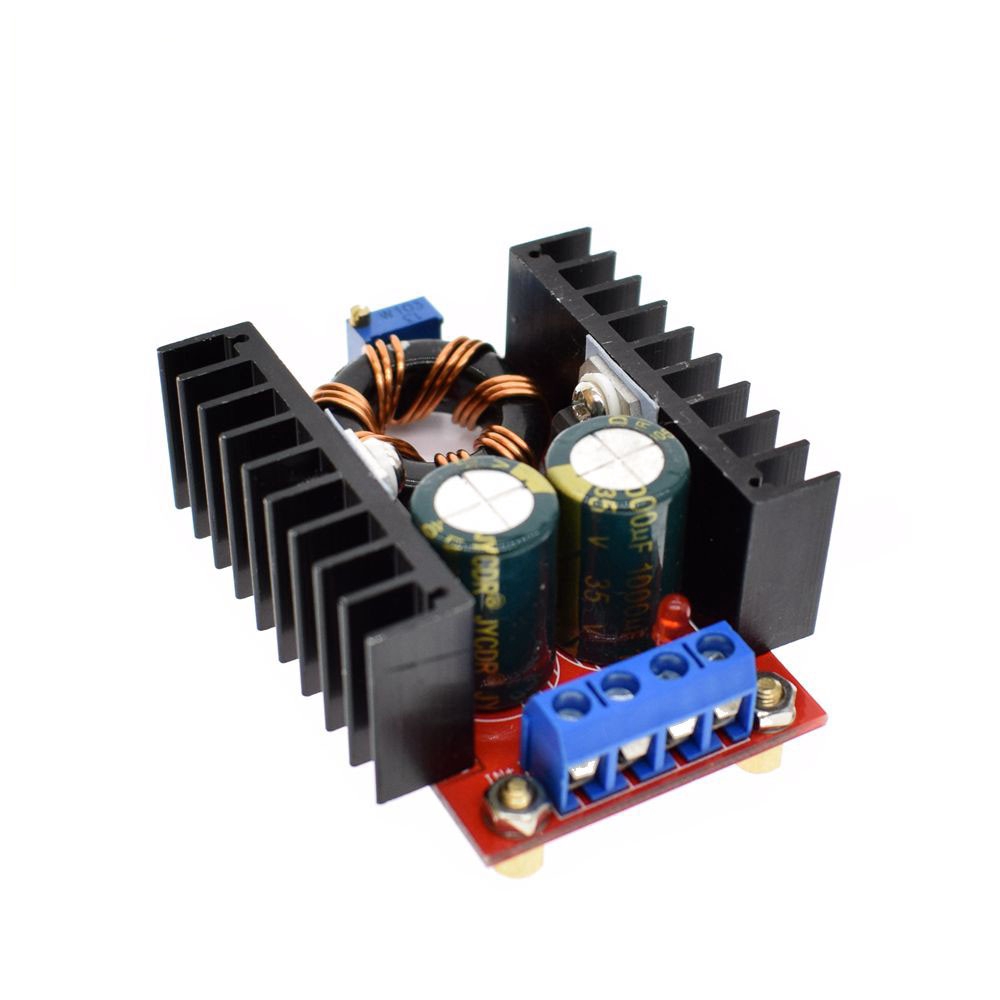

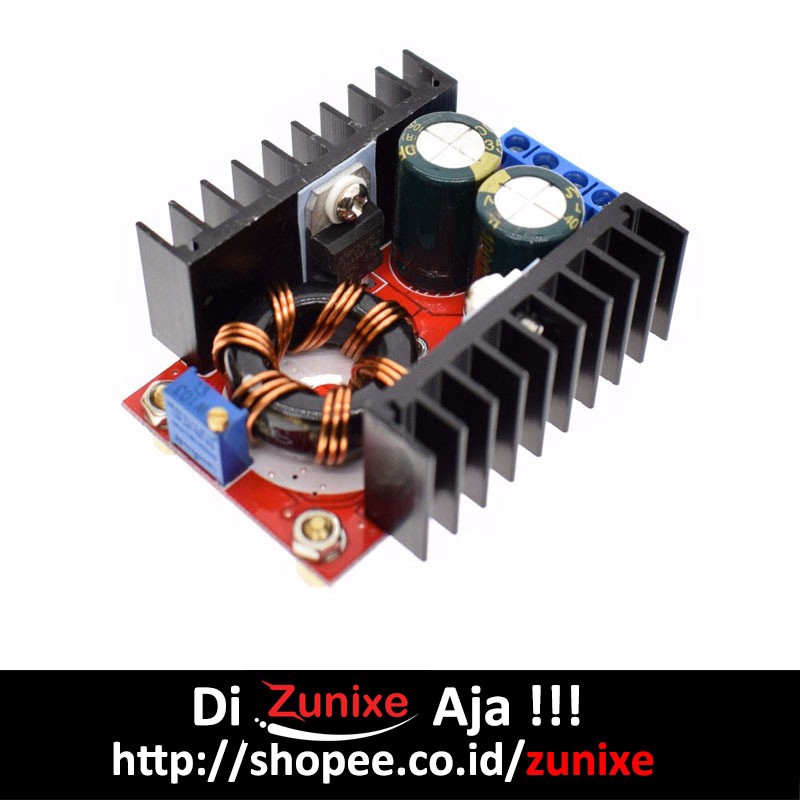

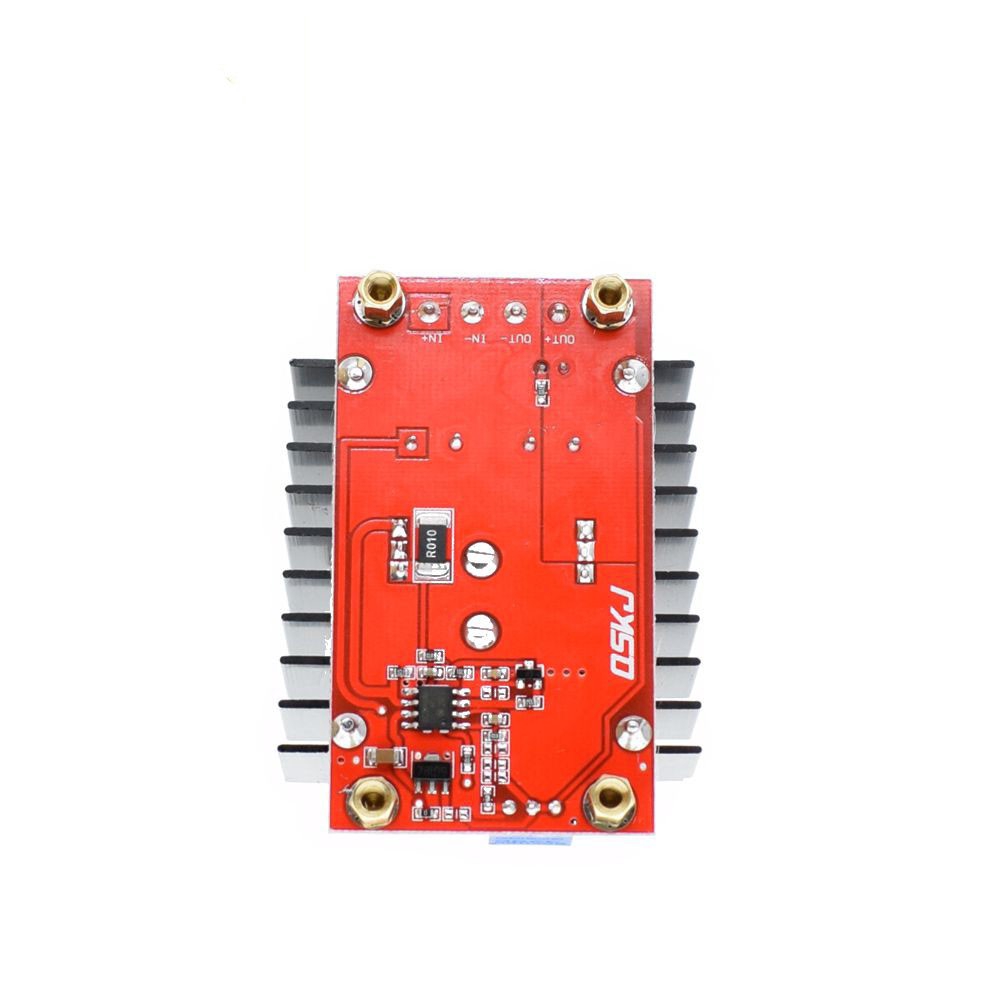

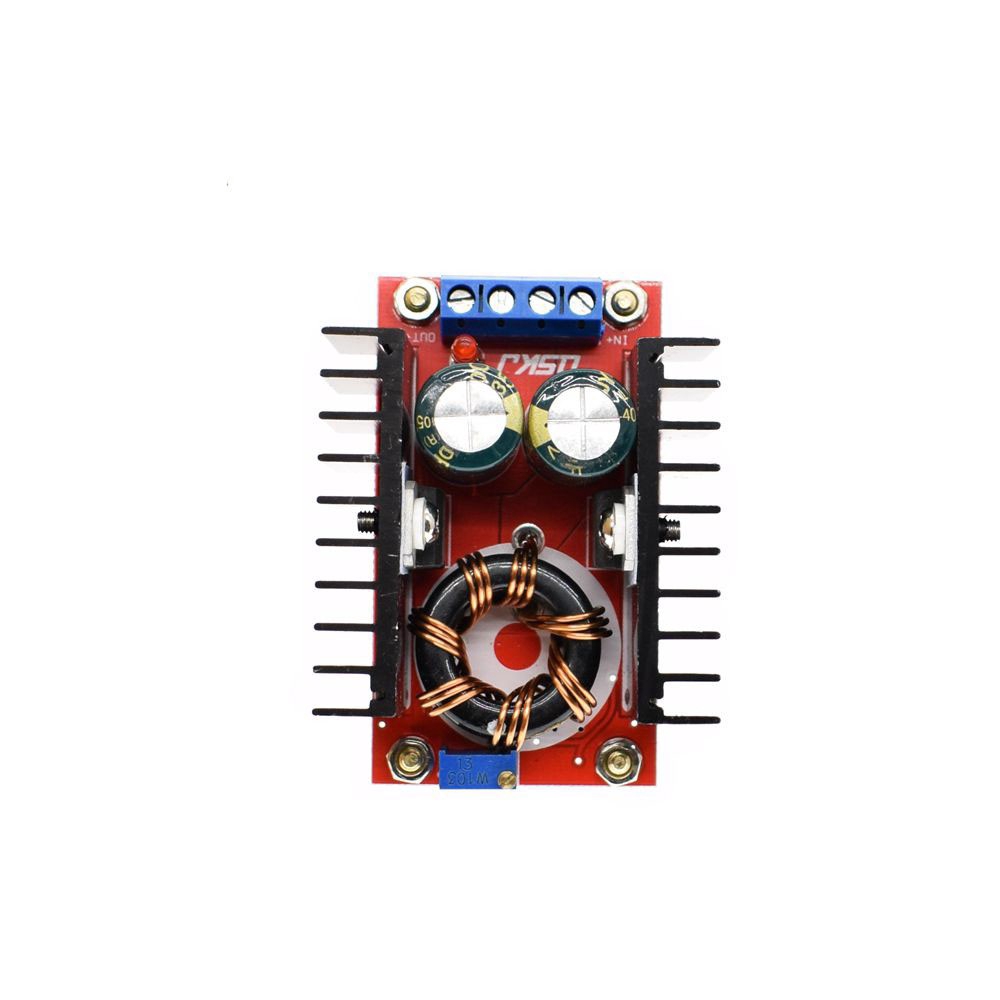

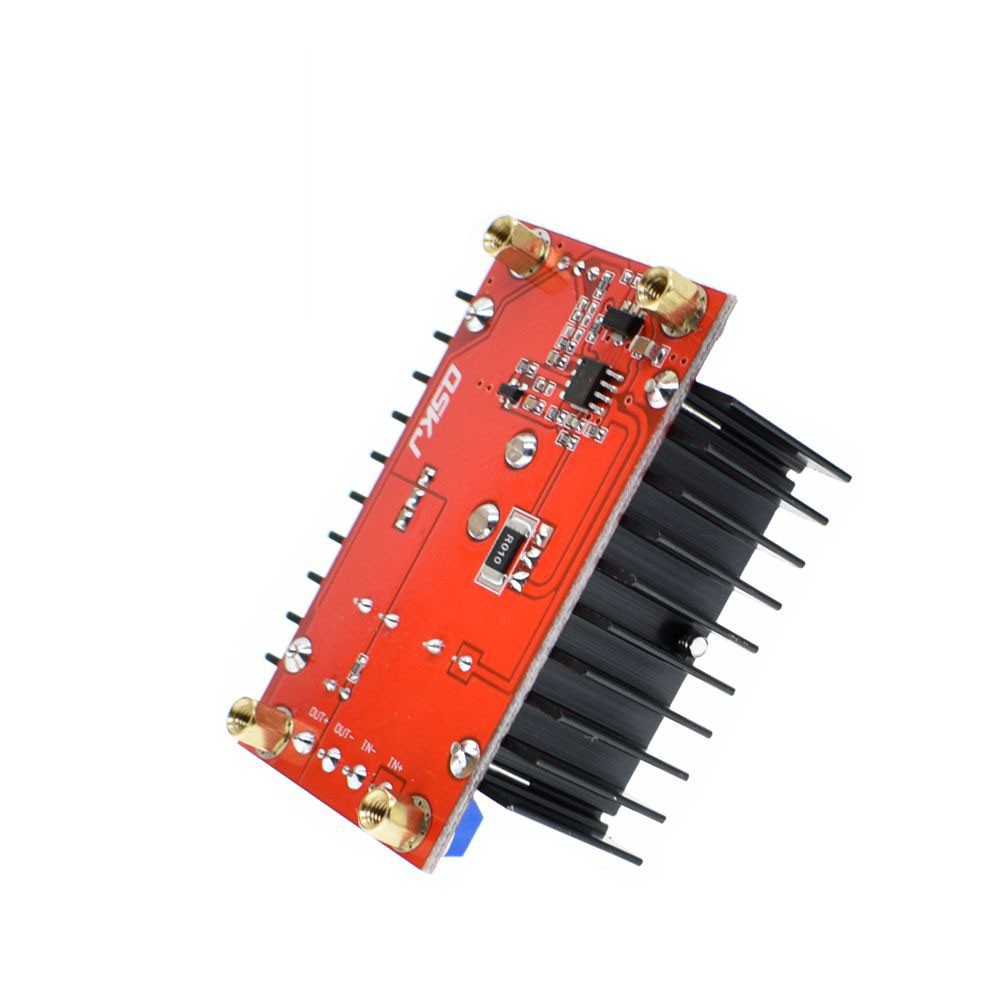

Gambar produk
