Detail 12A DC-DC STEP DOWN POWER MODULE BUCK CONVERTER

12A DC-DC STEP-DOWN NON-ISOLATED MODULE
INPUT : 4.5-30V
Output : 0.8-30V (Default : 5V)
Output Current : 0-12A 100W (up to 200W with extra heat dissipation)
Operating temperature: -40 to + 85
Operating frequency: 300KHz
Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related)
Short circuit protection: YES (limit current 14A) Try not to short circuit
Overtemperature protection: (automatically shut off the output after overtemperature)
Input Reverse Polarity Protection: None (if necessary please enter the string into the diode)
Installation: four 3mm screws
Connection: Terminals, solderless, V-IN is the input, V-OUT output, with the housing module wire output.
Module dimensions: length 60mm width 51mm height 22mm

actual data:
Input 12V Output 5V / 10A, efficiency 81%
Input 12V Output 5V / 6A, efficiency 86%
Input 24V output 12V / 8A, efficiency 91%
Input 24V output 19V / 6A, efficiency 94%

#DCSTEPDOWN #STEPDOWN #STEPDOWNMODULE #STEPDOWNCONVERTER #DCDC #DCCONVERTER #CONVERTER

Gambar produk

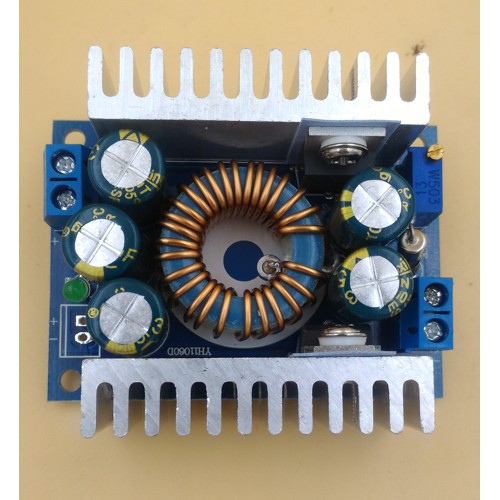

12A DC-DC STEP DOWN POWER MODULE BUCK CONVERTER
