10S 36V 35A BMS Charger Li-ion Lithium Battery Protection Board

Detail 10S 36V 35A BMS Charger Li-ion Lithium Battery Protection Board

Spesification :
Size : 69*51.5*10mm
Weight : 55g
Discharge current in operation : 35A
Charge current(comment port) : ≤5A
Charge current(different port) : N/A
Charge voltage : Li-ion 42V(10S)
Overcharge Protection :
- Overcharge detection voltage : 4.25±0.025V
- Overcharge detection delay time : 100ms
- Overcharge release voltage : 4.15S±0.025V
Overdischarge Portection :
- Overdischarge detection voltage : 2.8±0.05V
- Overdischarge detection delay time : 100±50ms
- Overdischarge release voltage : 3.0±0.1V
Balance Portection :
- Balance voltage : Li-ion 4.25±0.025V
- Balance current : Li-ion 45±5mA
Overcurrent Portection :
- Overcurrent detection voltage : 0.2±0.01V
- Overcurrent protection current : 35±5A
- Overcurrent detection delay time : 10mS
- Release condition : Cut load
Short Protection :
- Detection condition : Exteriorcondition
- Detection delay time : 200uS
- Release condition : Cut short load
Temp. protection :
- over-temp. protection : N/A
- over-temp. release : N/A
Working Temp. : Temp.range : -30℃~80℃
Interior resistance : Main loop electrify resistance : RDS≤15mΩ
Current consumption : Current consunm in normal operation : ≤40.0uA
Application；Ebike,E-scooter,low speed vehicle and other power device

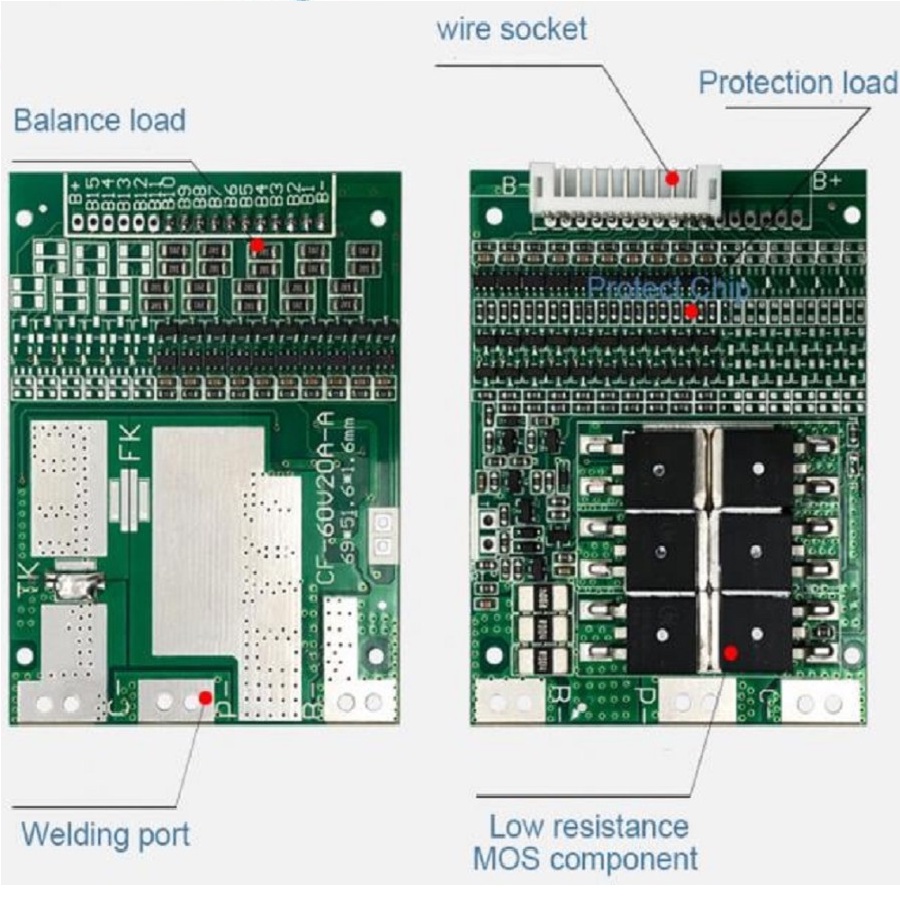

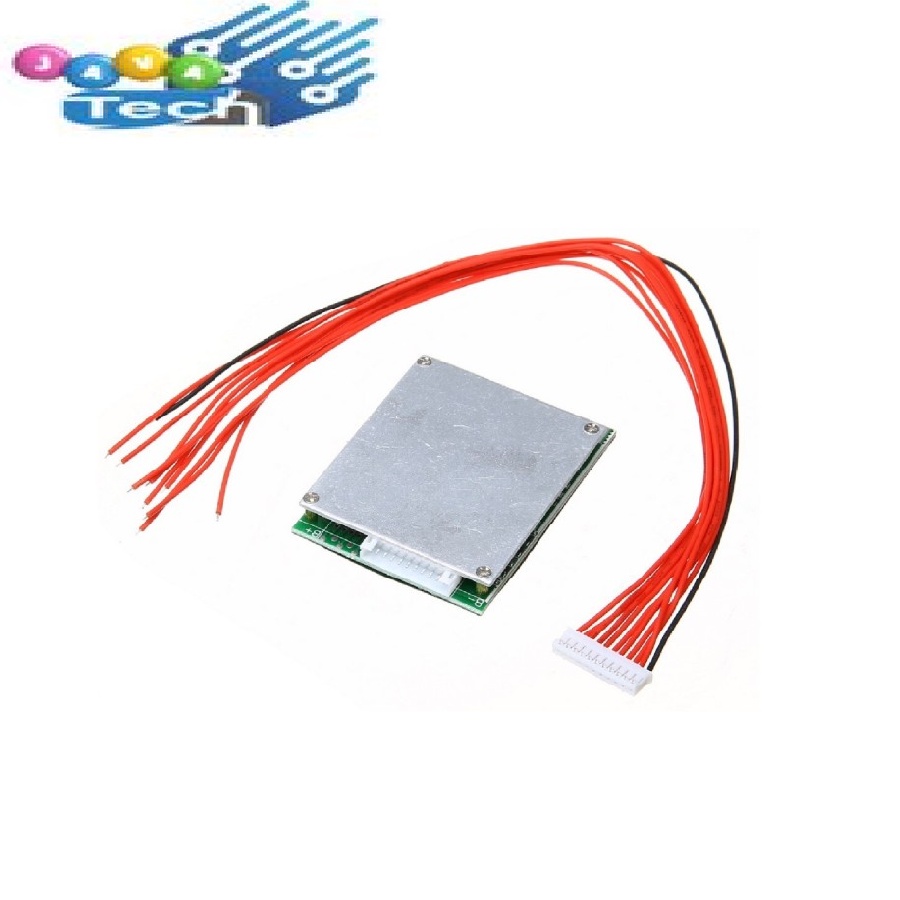

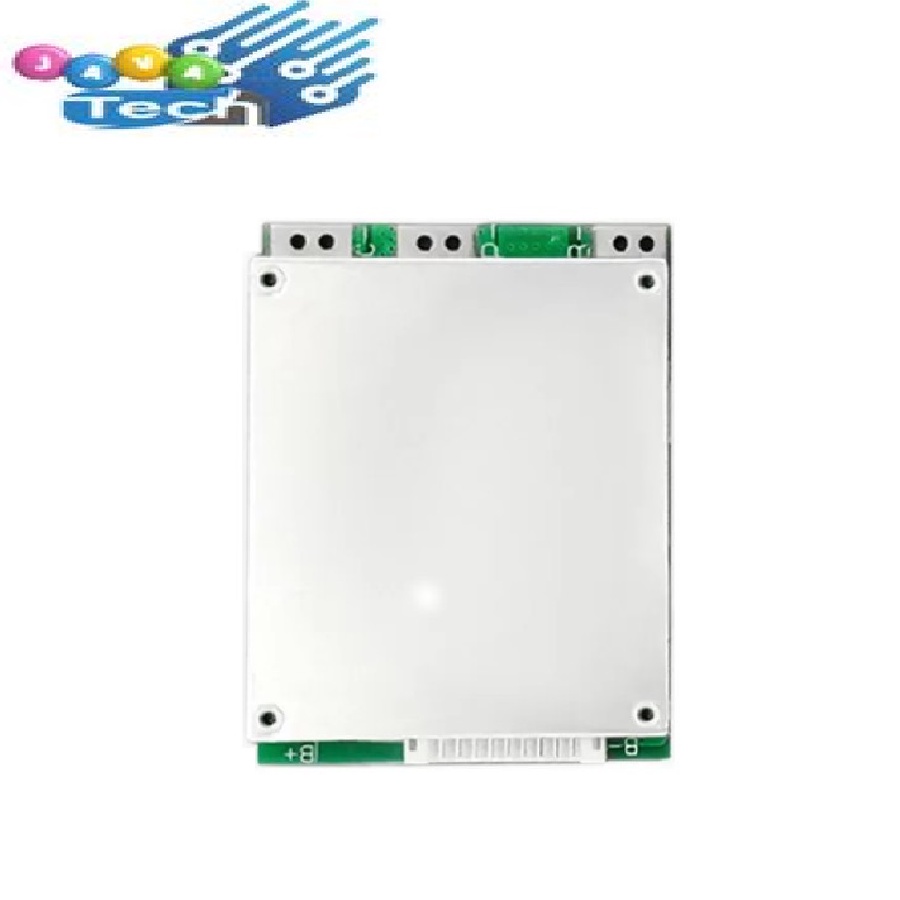

Gambar produk
