10pcs Soket Jack Power Supply DC Female 5.5x2.1mm

Elektronik > Elektronik Lainnya > 10pcs Soket Jack Power Supply DC Female 5.5x2.1mm

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:aatrillioncatalpa.idLihat semua produk Audio oleh aatrillioncatalpa.id

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

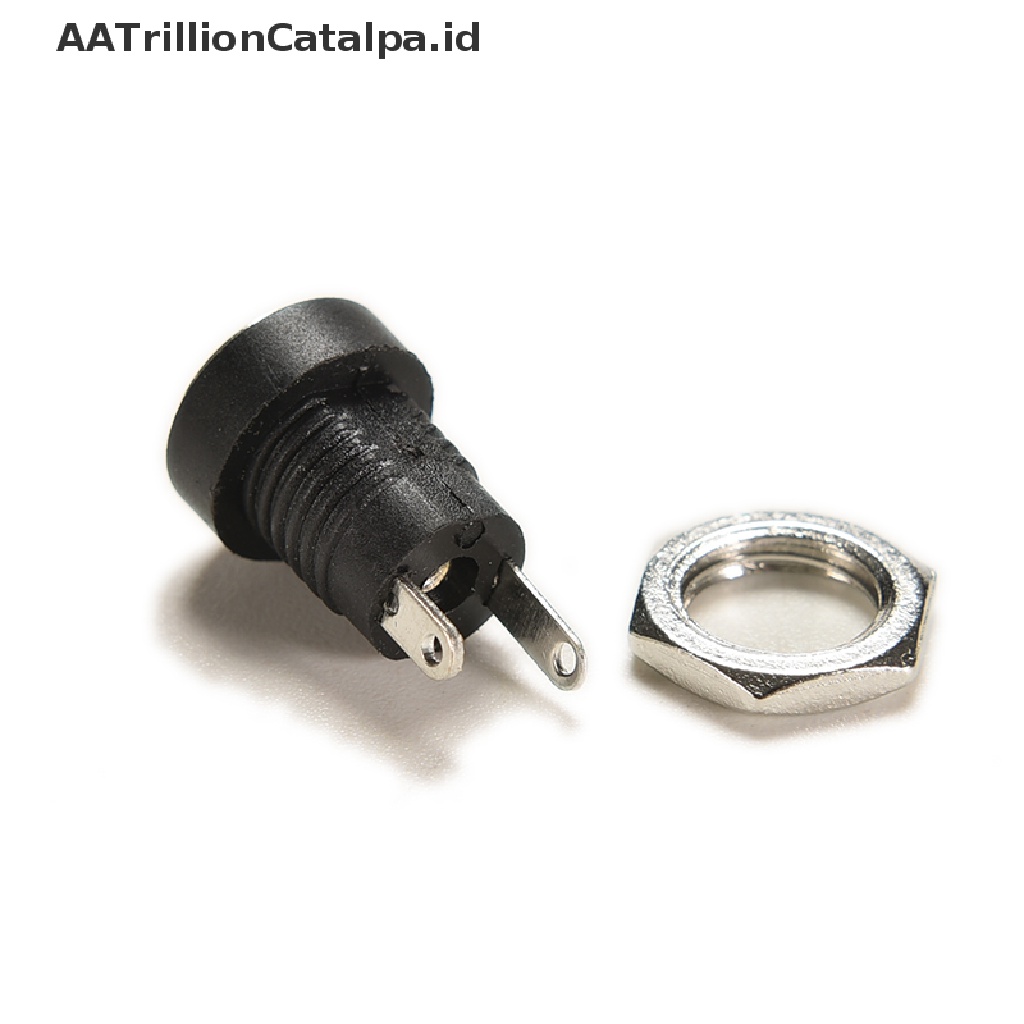

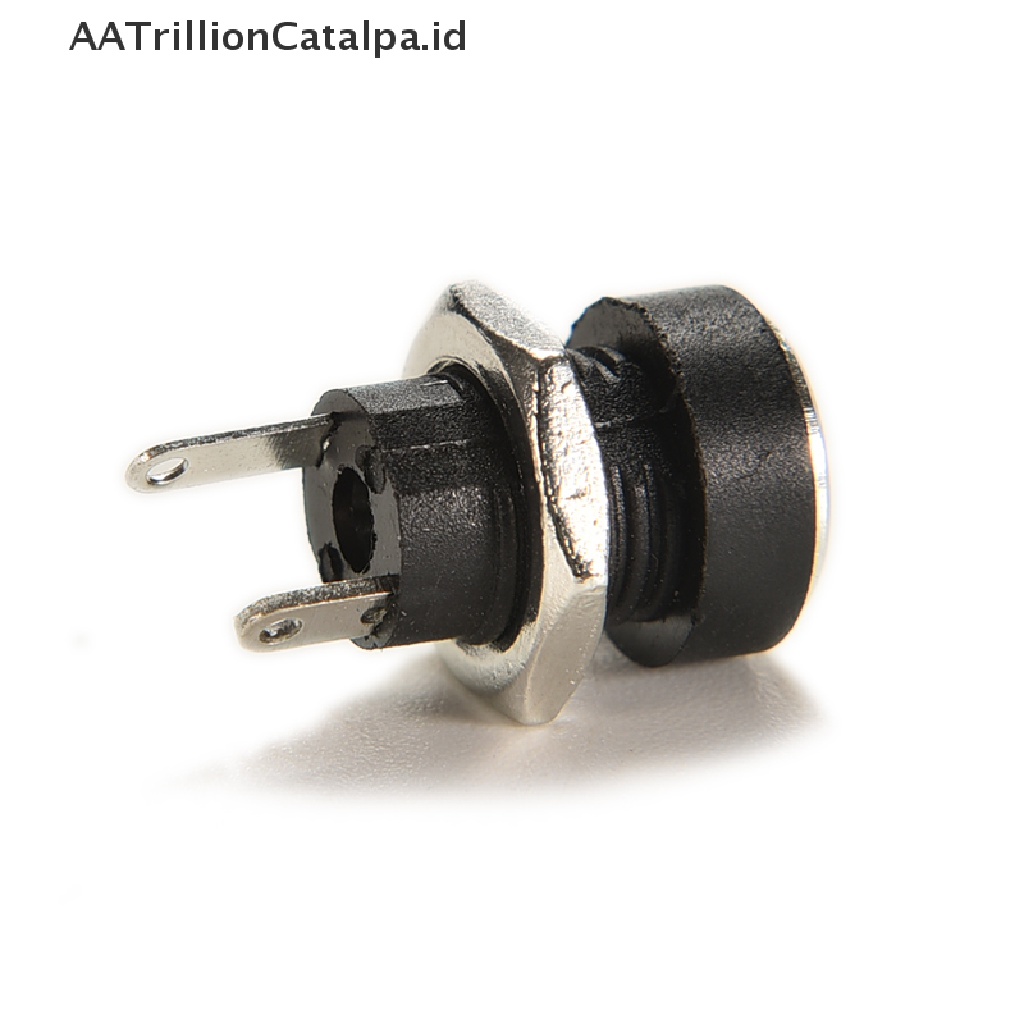

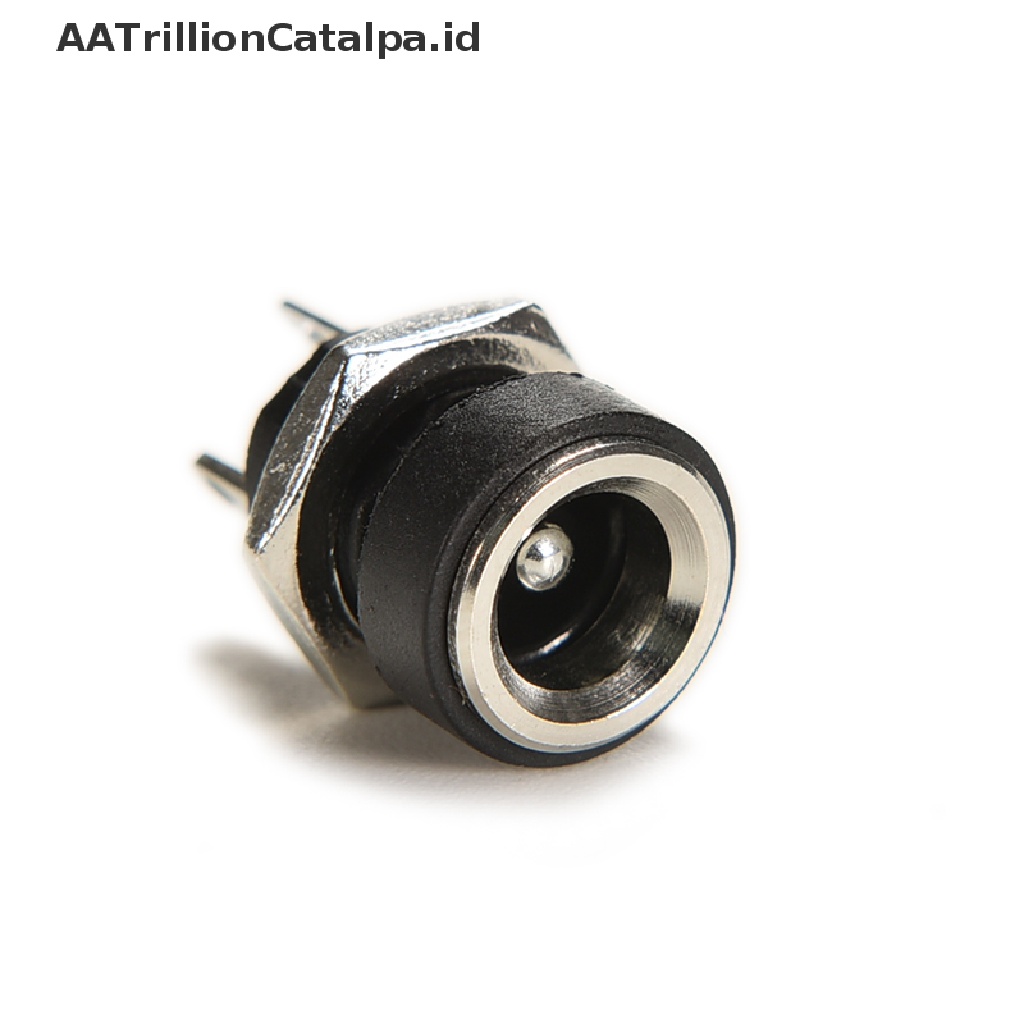

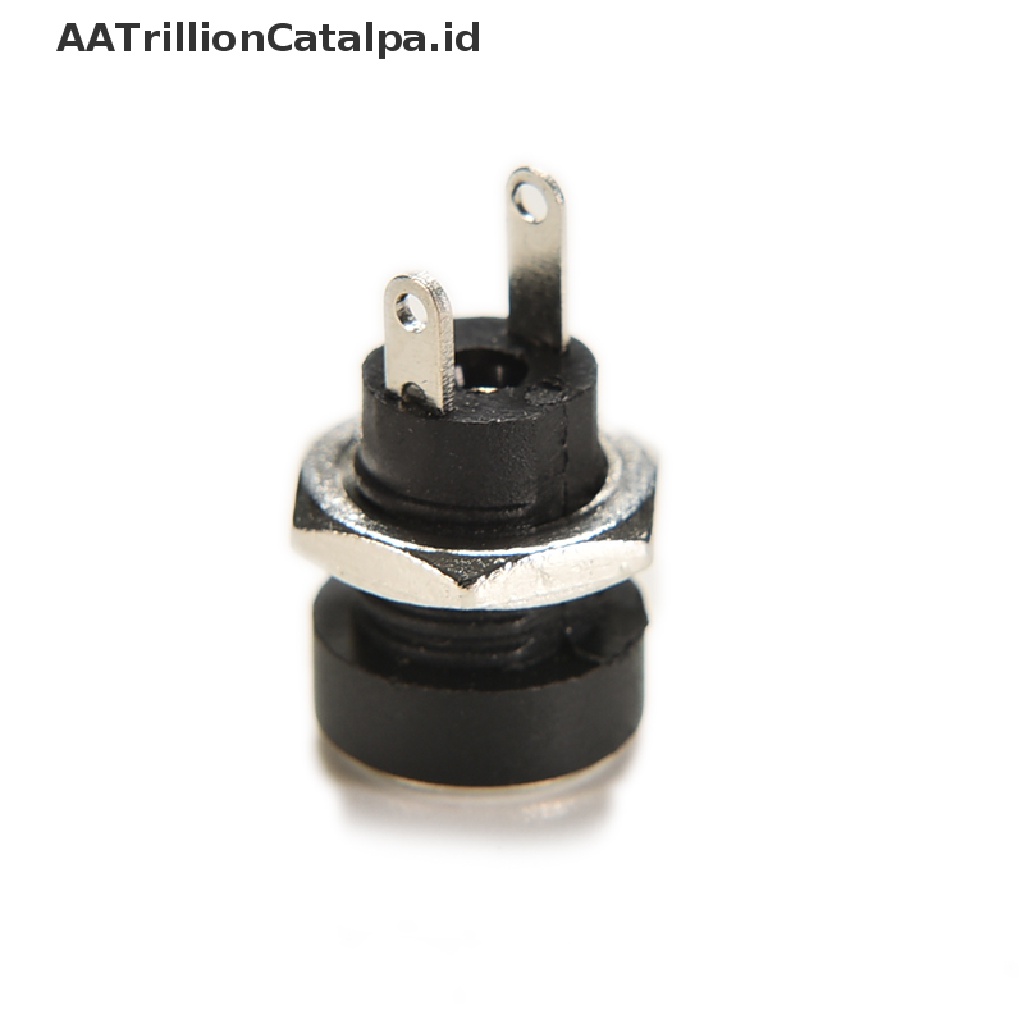

Detail 10pcs Soket Jack Power Supply DC Female 5.5x2.1mm

Features:

Metal panel mounting plastic/metal 2.1mmx5.5mm DC socket

2 terminal type-positive & negative
Fitting hole of 7.8mm required.

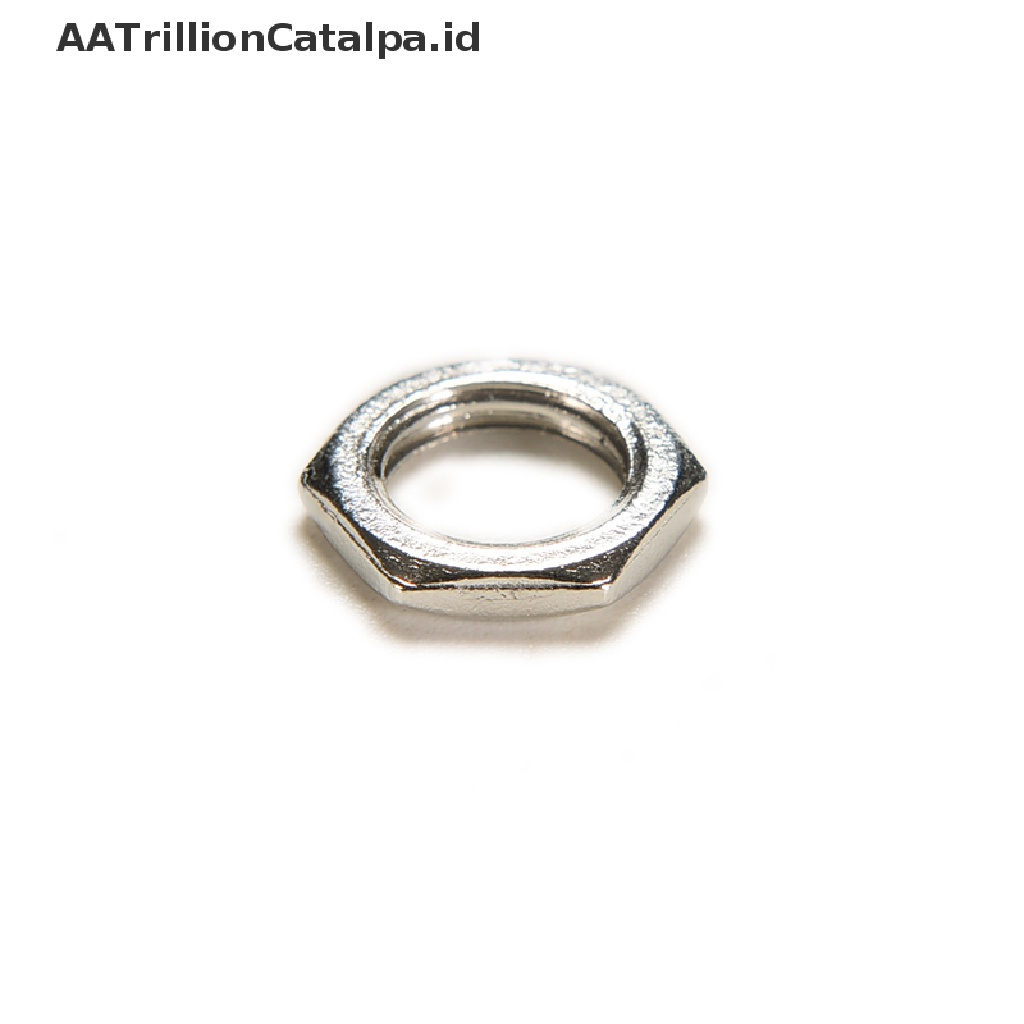

Complete with rear fixing locking nut.
It will take 3.2mm push on connectors or solder fit.
Requires total clearance behind panel of 13mm

Specifications:
Contact rating: MAX 3A 12V DC
Connector size: 2.1mm x 5.5mm x 9mm
Product size: 10mm x 10mm x18mm
Max panel depth: 3mm

Package include

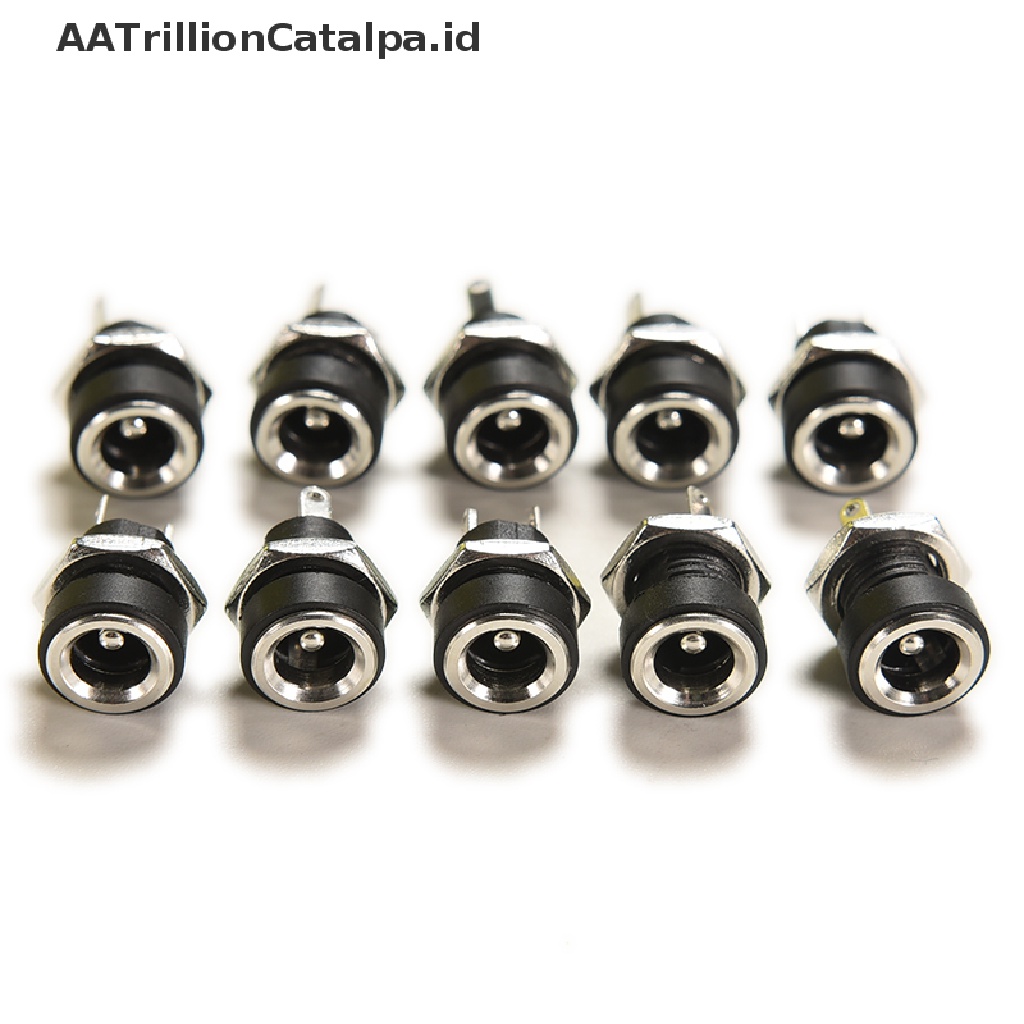

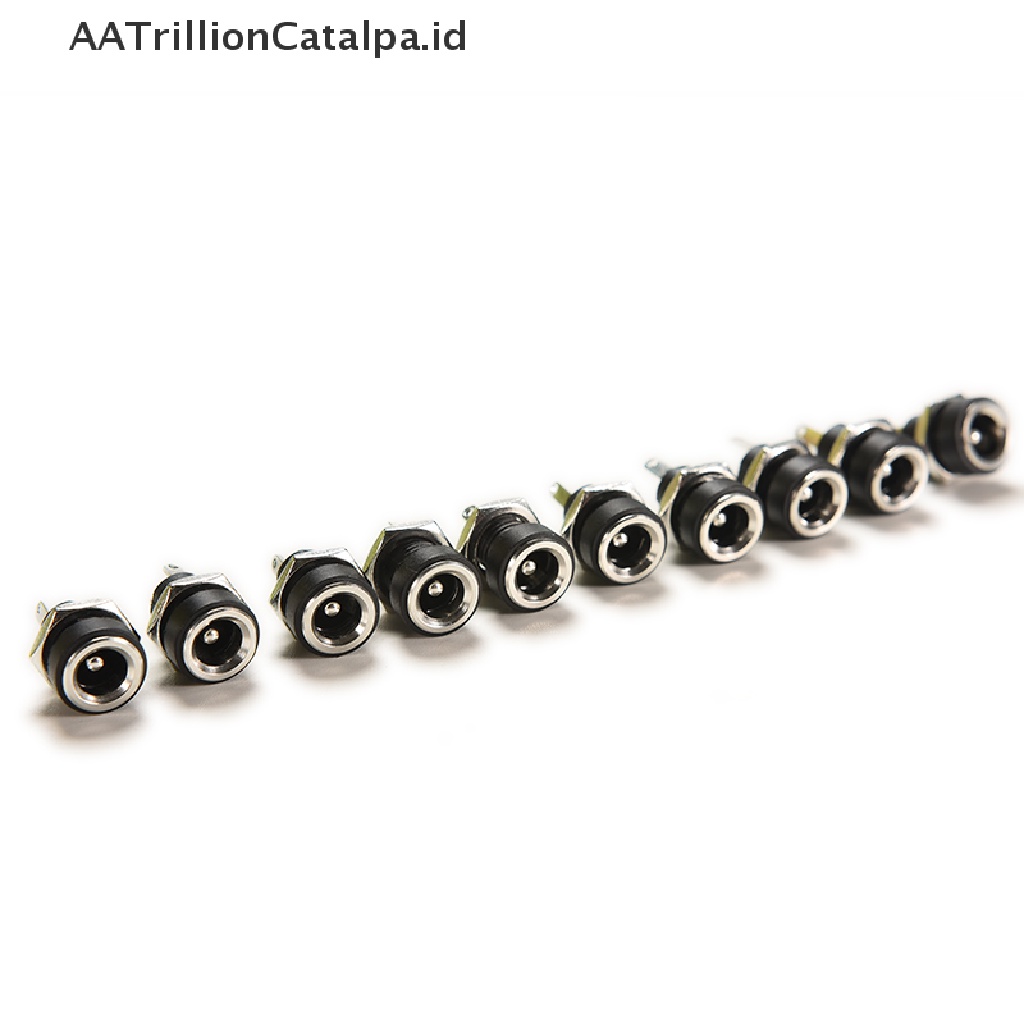

10 x DC Power Supply Female Panel Mount Connector
