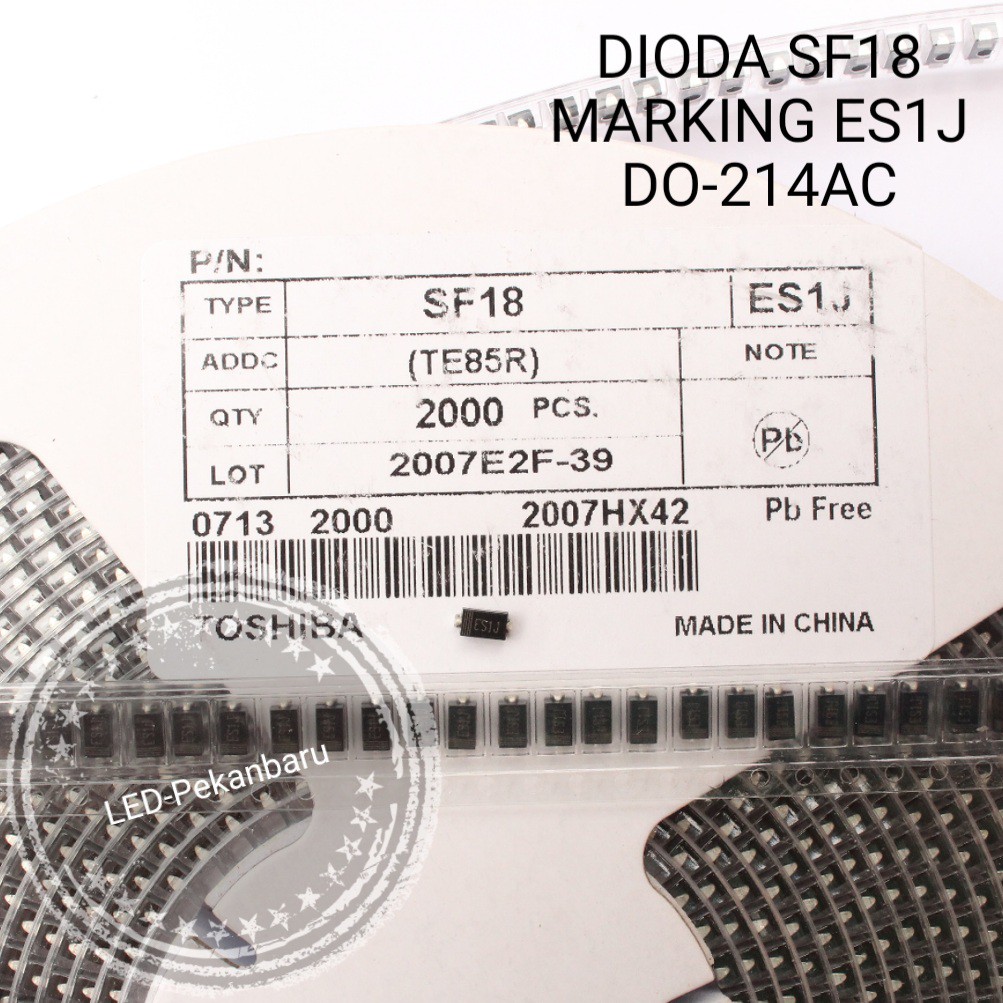

Description: The ES1J from Fairchild is surface mount fast rectifier in SMA (DO-214AC) package. This device features glass passivated junction, low profile package and fast recovery time for high efficiency.
Feature: Maximum repetitive reverse voltage Vrrm of 600V Non repetitive peak forward surge current IFSM of 30A Maximum forward Voltage VF of 1.7V at IF 1A Maximum forward current IF(AV) of 1A Power dissipation of 1.47W Reverse recovery time trr of 35ns Operating junction temperature of 150C
