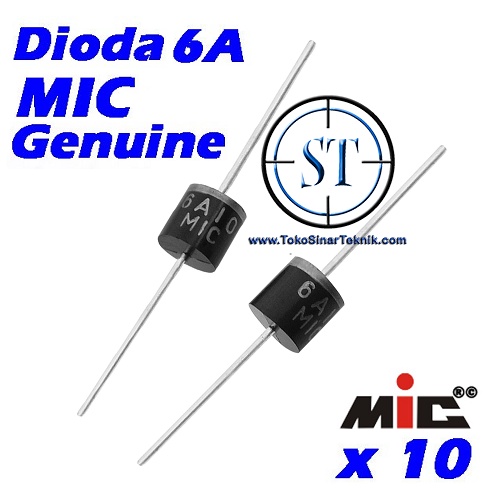

10Pcs Dioda 6A MIC Diode 6 Ampere Rectifier Penyearah TV 6A10 ASLI kualitas Bagus

Detail 10Pcs Dioda 6A MIC Diode 6 Ampere Rectifier Penyearah TV 6A10 ASLI kualitas Bagus

MINIMAL PEMBELIAN 10,000 RUPIAH TIDAK TERMASUK ONGKIR
MOHON MAAF ORDER DI BAWAH ITU AKAN KAMI TOLAK TRIMS


Harga diatas mendapatkan 10 Pcs dioda 6A
6A10 6A 1000V MIC Dioda Diode Rectifier R-6


Dioda 6A10
Harga untuk 1 0buah
Merk = MIC
Arus Maks 6A, Voltase Maks 1000v

- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.

MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.07 ounce, 2 grams

SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:6.0Amps
Peak Forward Surge current: 400A
Maximum Instantaneous Forward Voltage at 6.0A :0.95v
Maximum Full Load Reverse Current :1mAmps
Typical Junction Capacitance :150pF
Typical Thermal Resistance : 10
Package: R-6
