Detail 10A10 10A 1000V MIC Dioda Diode Rectifier R-6

10A10 10A 1000V MIC Dioda Diode Rectifier R-6

*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***

FEATURES :
- Low cost construction.
- Fast switching for high efficiency.
- Low reverse leakage
- High forward surge current capability.
-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.

MECHANICAL DATA :
- Case: transfer molded plastic
- Epoxy: UL94V - 0 rate flame retardant.
- Polarity: Color band denotes cathode end.
- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
- Mounting position: Any
- Weight: 0.07 ounce, 2 grams

SPECIFICATION :
Maximum Repetitive Peak Reverse Voltage: 1000v
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:10.0Amps
Peak Forward Surge current: 450A
Maximum Instantaneous Forward Voltage at 10.0A :0.95v
Maximum Full Load Reverse Current :1mAmps
Typical Junction Capacitance :150pF
Typical Thermal Resistance : 10
Package: R-6

Untuk info seputar hal teknis dan lainnya, Hubungi kami

Gambar produk

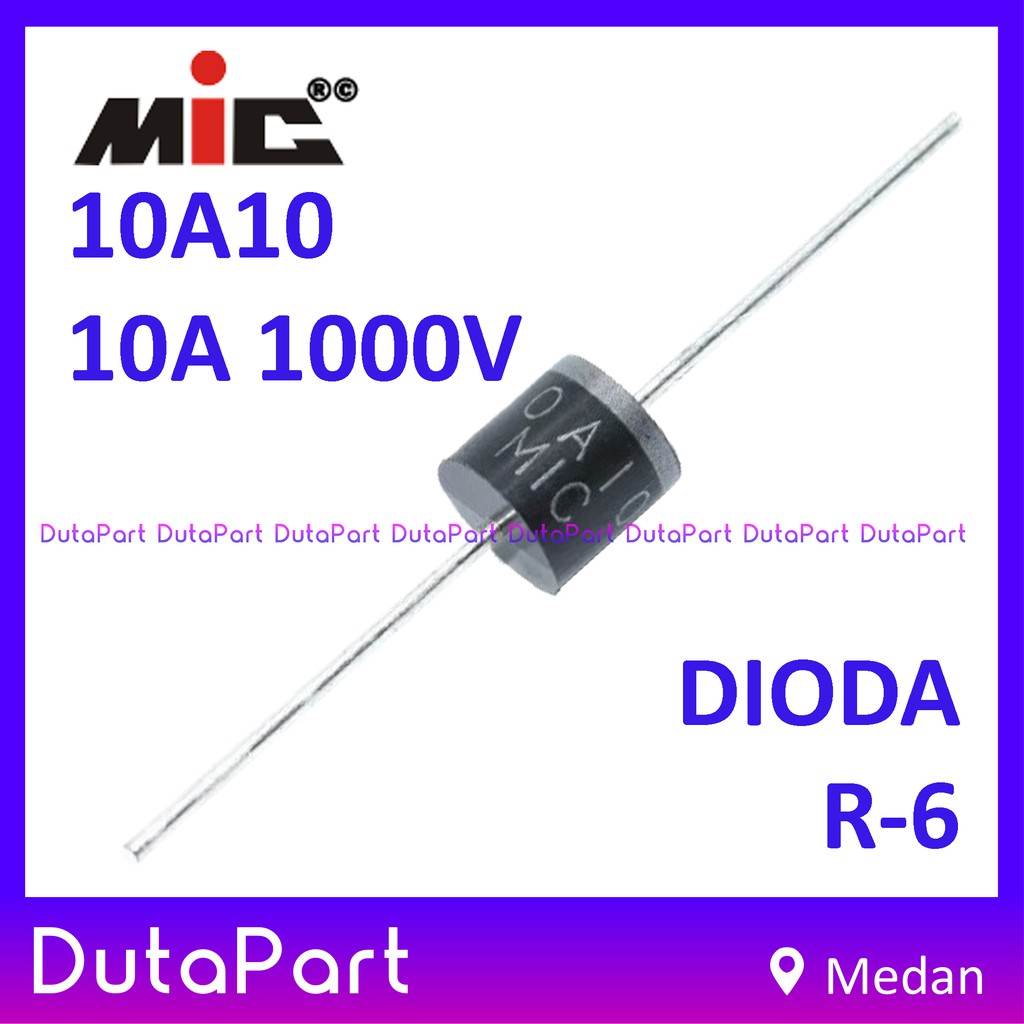

10A10 10A 1000V MIC Dioda Diode Rectifier R-6
