Detail 10 Pcs PCB Mount 5.5x2.1mm Female DC Power Jack Plug Socket Konektor Warna Hitam

Description:
Operating temperature range: -40-55 °
Rated load: DC 30V 0.5A
Contact resistance: ≤0.03Ω
Insulation resistance: ≥ 100MΩ DC250V
Pressure resistance: AC 500 (50Hz) / min
Insertion force: 3-20N
Life: 5000 times

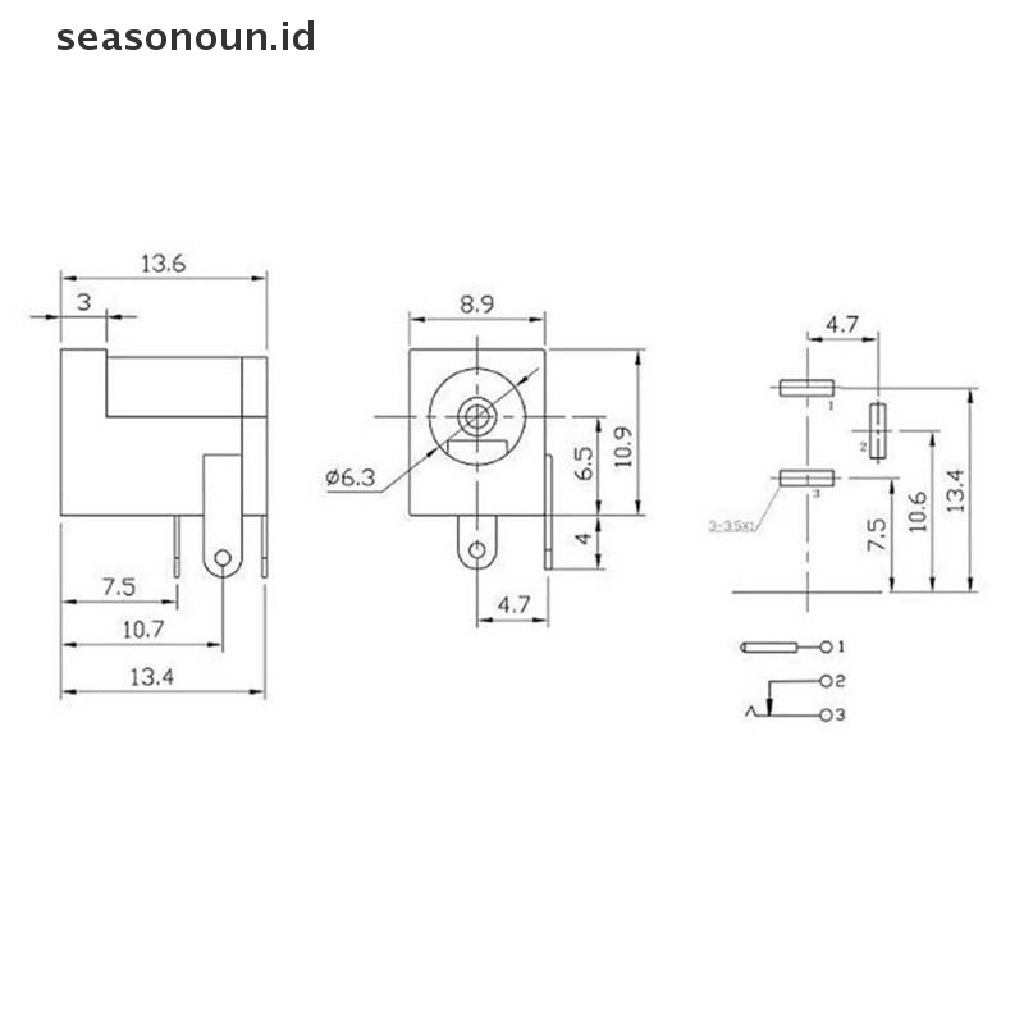

Power socket 5.5 * 2.1MM / 2.0MM (round needle)
Quantity:10Pcs


Package includes:
10Pcs DC Power Jack Plug Socket Connector


Note:
1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color which is showed on the pictures.
2.Please forgive 1 cm/0.39"-3 cm/1.18" measuring deviation due to manual measurement.
