[10-C9] XY-L30A DC 6-60v 30A Storage battery Charging Control Protect

Detail [10-C9] XY-L30A DC 6-60v 30A Storage battery Charging Control Protect

Deskripsi [10-C9] XY-L30A DC 6-60v 30A Storage battery Charging Control Protect

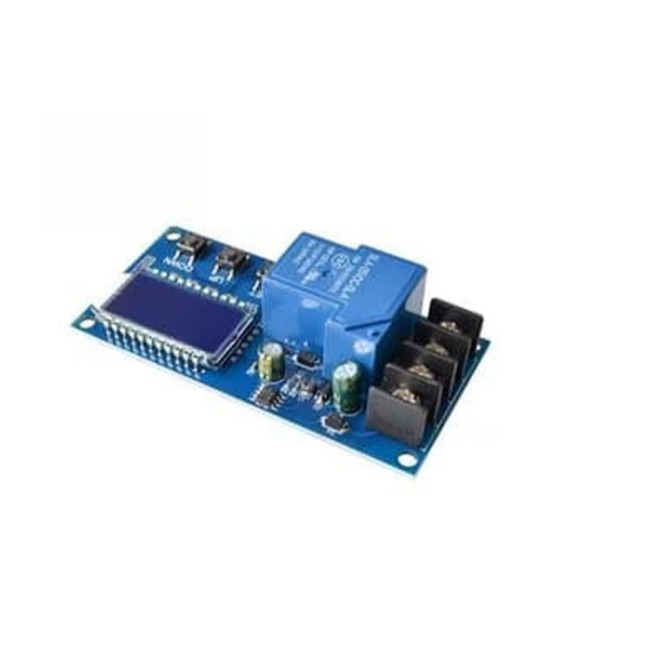

Module Highlights:

Support Lead-acid battery and Acting Battery,voltage range:6V~60V;

Can display voltage,percent of battery,charging time at the same time through LCD;

The function is very powerful,realizes the automatic charge control,

the control charge time, also may set up and uploads the corresponding parameter through the serial port;



Function description

Automatic Charge control function

By setting the volt-HI:UP volt-LI:dn;When the battery voltage is below the volt-LI:dn,the relay leads,the charger begins to charge the battery;when the battery voltage is up to volt-HI:UP,the relay is diconnected and the automatic charge is completed once;

Charge Time Control Function:

How to turn on the time control function?

After entering the parameter set, set the parameter op is non-zero, then turn on the time control function, op default parameter is:–:–h, the default does not turn on time control function;

After the opening Time control function (OP is non-zero), when the battery voltage is the lower volt-LIdn, the charger began to charge the battery, the system began to clock; During the timing, the battery voltage volt-HIUP, relay disconnect; If the OP time is up, the battery voltage is still the lower volt-LIdn, the relay keeps the conduction, automatically closes the charge time control function, and flashes the H:ER to remind the user, the time parameter setting is unreasonable; Press any key to stop flashing;


Note: Time format: 00:59 (00 for hours, 59 for minutes) The maximum time is 99:59, which is 100 hours.



Parameter Setting
a) Press and hold the SET key to enter the setting interface;
b) Switch the parameters you want to set by short press SET;
c) After the selection of parameters, can be set by the UP/DOWN key to support the short press, long press (fast increase or decrease); To set other parameters, repeat step b, c);
