10 /100Mbps Fast Ethernet Fiber Optical Media Converter Single Mode 20KM 4 RJ45

Detail 10 /100Mbps Fast Ethernet Fiber Optical Media Converter Single Mode 20KM 4 RJ45

The Media Converter is use to expanding existing Gigabit Ethernet networks. The easy implementation and expansion of 1000Base-TX/FX networks can be further assured with this converter.

The converter is completely transparent when connected so the network performs exactly the way it did before - only now, it allows the co-existence of both copper and fiber mediums.

Main Features:
Complies with IEEE 802.3 10 base-T standard, IEEE 802.3u, IEEE802.3d, IEEE802.3ab, IEEE 802.3x
Auto negotiation function allows UTP port to auto select 10M, 100M or 1000M
Ethernet port supports MDI/MDI-X auto crossover
Extends distances up to 20km (single mode fiber)
Auto MDI/MDI-X support on RJ-45 port
Support Full Duplex and Half Duplex
Status LED's for Power, FRL, 10/100, FRX and FDX to easily monitor network status
1Mbit RAM for data buffer
Supports jumbo frame size 9K bytes

Optical Port:
1310nm Single mode
Connectors: SC connector

Ethernet Port:
Connectors: RJ-45 Connector
LED Indicators:
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 100Mbps, else light off
TX: Light on when TP speed is 100Mbps,else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off

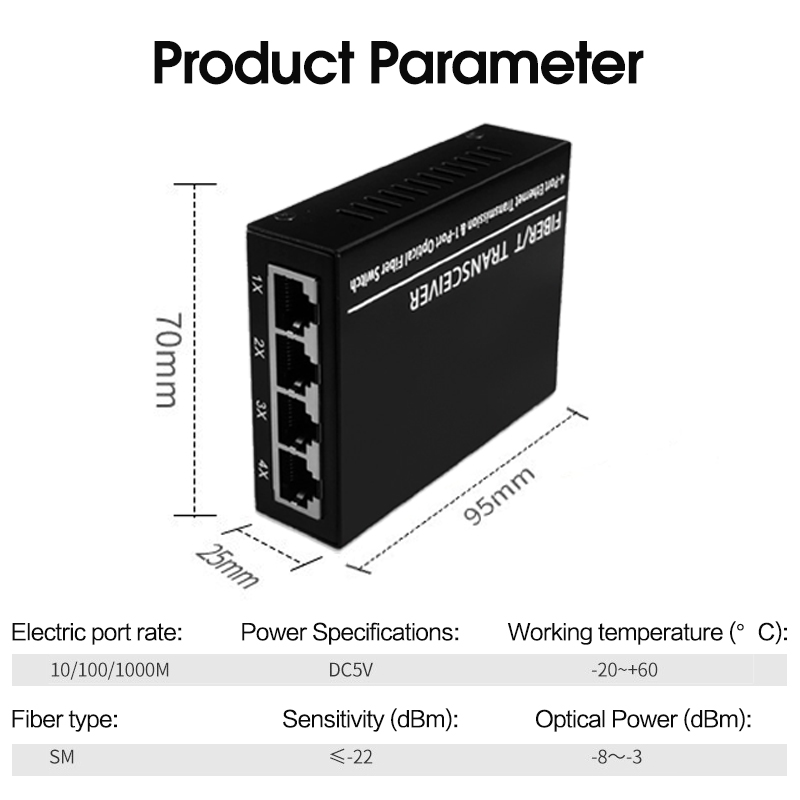

Specifications:
Output voltage: DC 5V/2A
Power dissipation: ≤3 watts
Operating Temperature: 0°C to 60°C

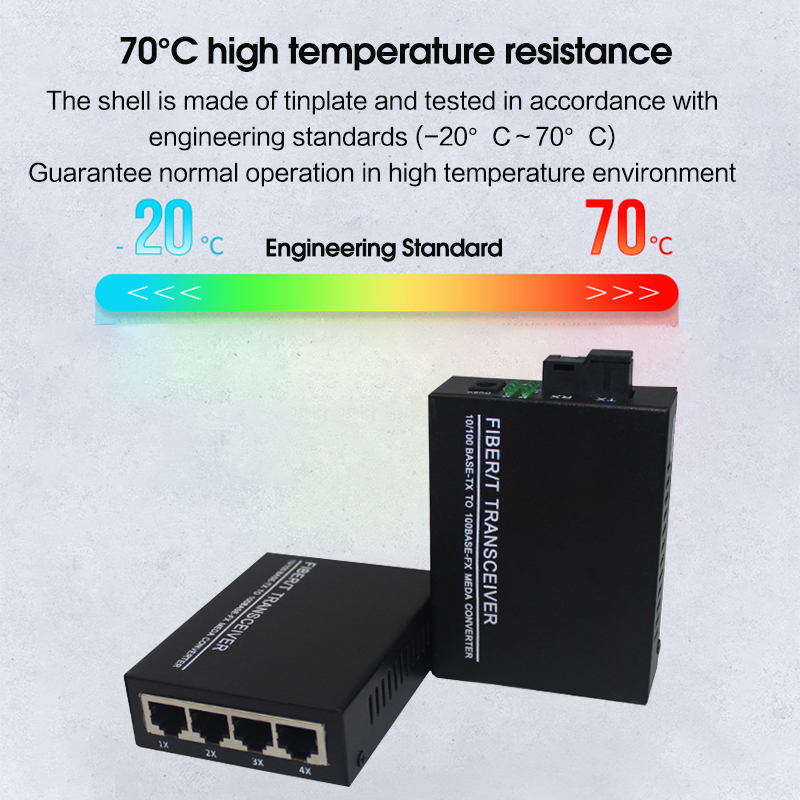

Storage Temperature: -20°C to 70°C
Housing: Metal enclosure
