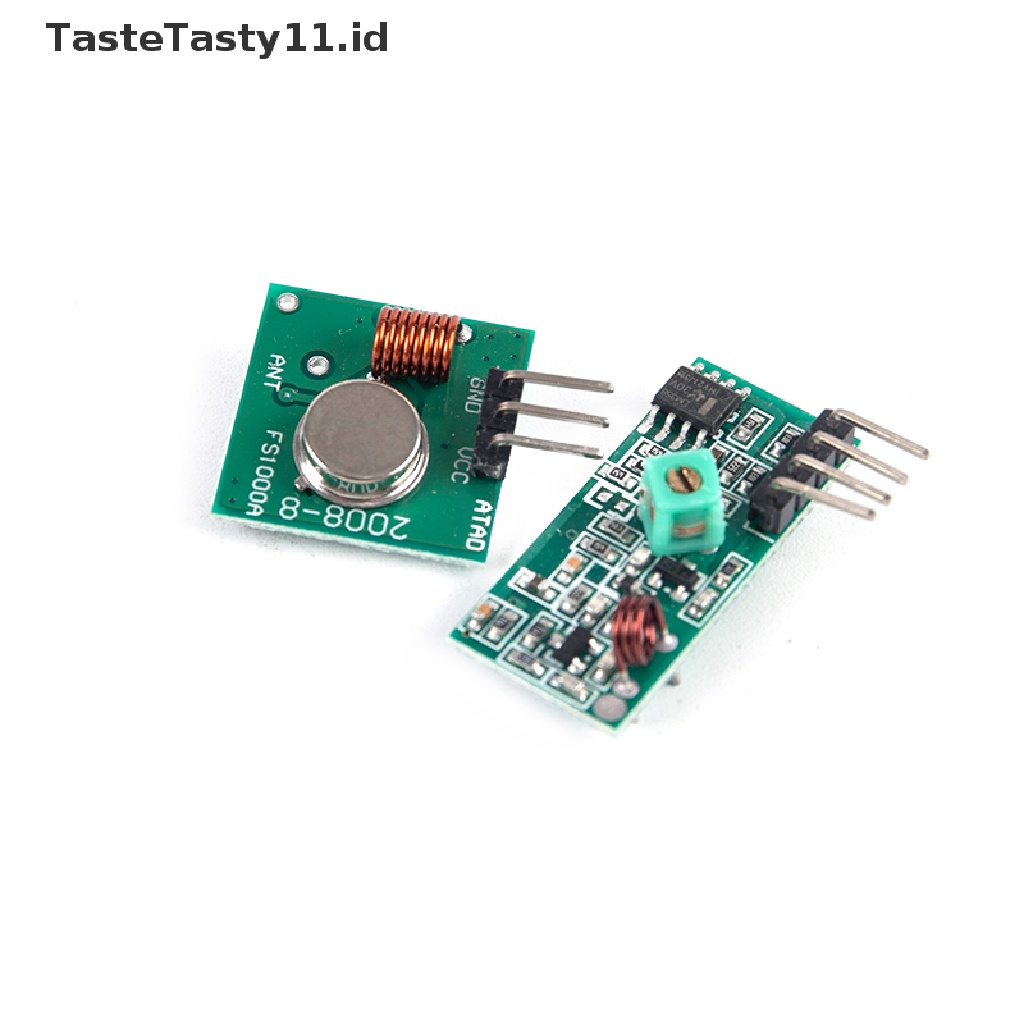

1 Set Modul Receiver Transmitter RF Wireless 433Mhz 5V DC 315MHZ

Detail 1 Set Modul Receiver Transmitter RF Wireless 433Mhz 5V DC 315MHZ

Product Parameters
Receiver module technical parameters
Actual working distance: 50-100 meters
Working voltage: DC5V
Quiescent current: 4MA
Receiving frequency: 433.92MHZ
Receiving Sensitivity: -105DB
Size: 30*14*7mm
External antenna: 32CM single core wire, wound into a spiral

Transmitter module technical parameters
Product Model: MX-FS-03V
Launching distance: 20-200 meters, the voltage is different, the effect is different)
Working voltage: 3.5-12V
Dimensions: 19*19mm
How it works: AM
Transfer rate: 4KB/S
Transmit power: 10mw
Transmission frequency: 433M
External antenna: 25cm ordinary multi-core or single-core wire
Pinout from left to right: (DATA; VCC; GND)
Application:
Remote control switch, receiving module, motorcycle, car anti-theft products, home anti-theft products, electric door, shutter door, window, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote control retractable door, remote control rolling gate, panning Doors, remote control door openers, door closers and other door control systems, remote control curtains, alarm hosts, alarms, remote control motorcycles, remote control electric vehicles, remote control MP3, etc.
