Detail 1 SET Connector JST XH2.54-10P Straight Header 2.54mm CI22 10 pin Straight Hi #RekanEasyWare ...
EasyWare Part#: EPB00172
Catatan:
- Produk ini merupaka varian SET, yakni akan mendapatkan: Header Male Straight/Right Angle, Female dan Metal Terminal sejumlah pin yang dipesan.
- Harga akan jauh lebih hemat menggunakan link ini, daripada beli satuan.
Spesifications :
- Type: Straight Pin Header Connector
- Pitch: 2.5mm
- Poles: 10 pins
- Wire Range:0.2mm² (24AWG)
- Applicablw printed board thickness: 0.8 ~1.6mm
- Voltage rating: 250V AC/DC.
- Current rating: 3A AC/DC
- Working temperature: -25°C ~+85°C
- Withstand voltage: 1000V/min
- Contact resistance: ≤0.02 ohm
- Insulation resistance: ≥1000M ohm
- Color: white
Kelengkapan :
* 1x SET Connector JST XH2.54-10P Straight Header 2.54mm CI22 10 pin Straight :
- 1 x Conector JST XH2.54 Female 10p
- 1 x Connector JST XH2.54 Male 10p
- 10 x Metal Terminal 2.50mm

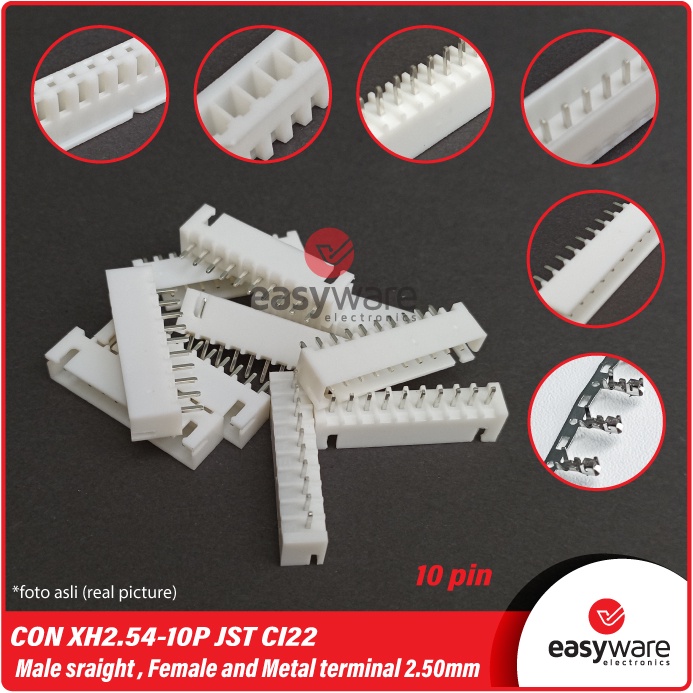

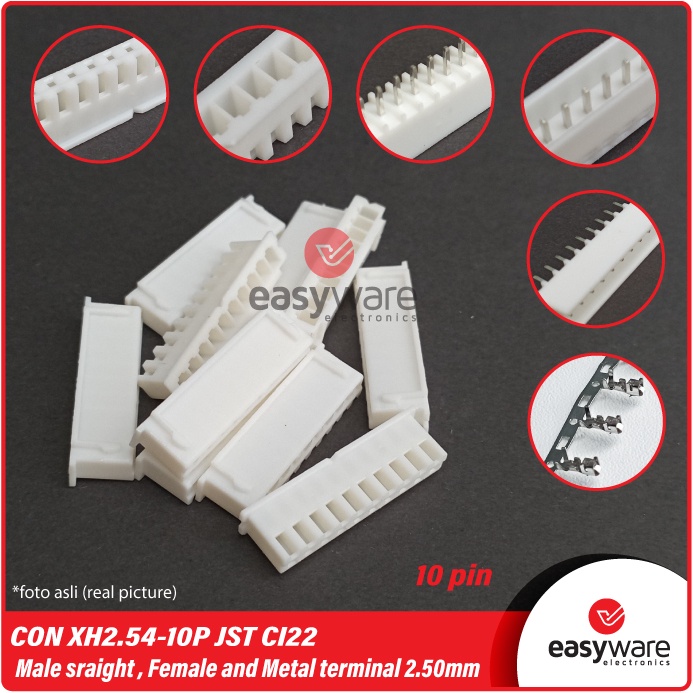

Gambar produk 1 SET Connector JST XH2.54-10P Straight Header 2.54mm CI22 10 pin Straight 1 SET Connector JST XH2.54-10P Straight Header 2.54mm CI22 10 pin Straight 1 SET Connector JST XH2.54-10P Straight Header 2.54mm CI22 10 pin Straight
