1 Pasang Transceiver Video Power Bnc Cat5E 6 Rj45 Coax

Detail 1 Pasang Transceiver Video Power Bnc Cat5E 6 Rj45 Coax

Description

Features:

Innovative combination design,compact size and easy installation, built in transient suppression protection.

ABS plastic case, power indicator, real-time display of power supply status,no power is needed.

60dB crosstalk and noise immunity,high transmitter quality.

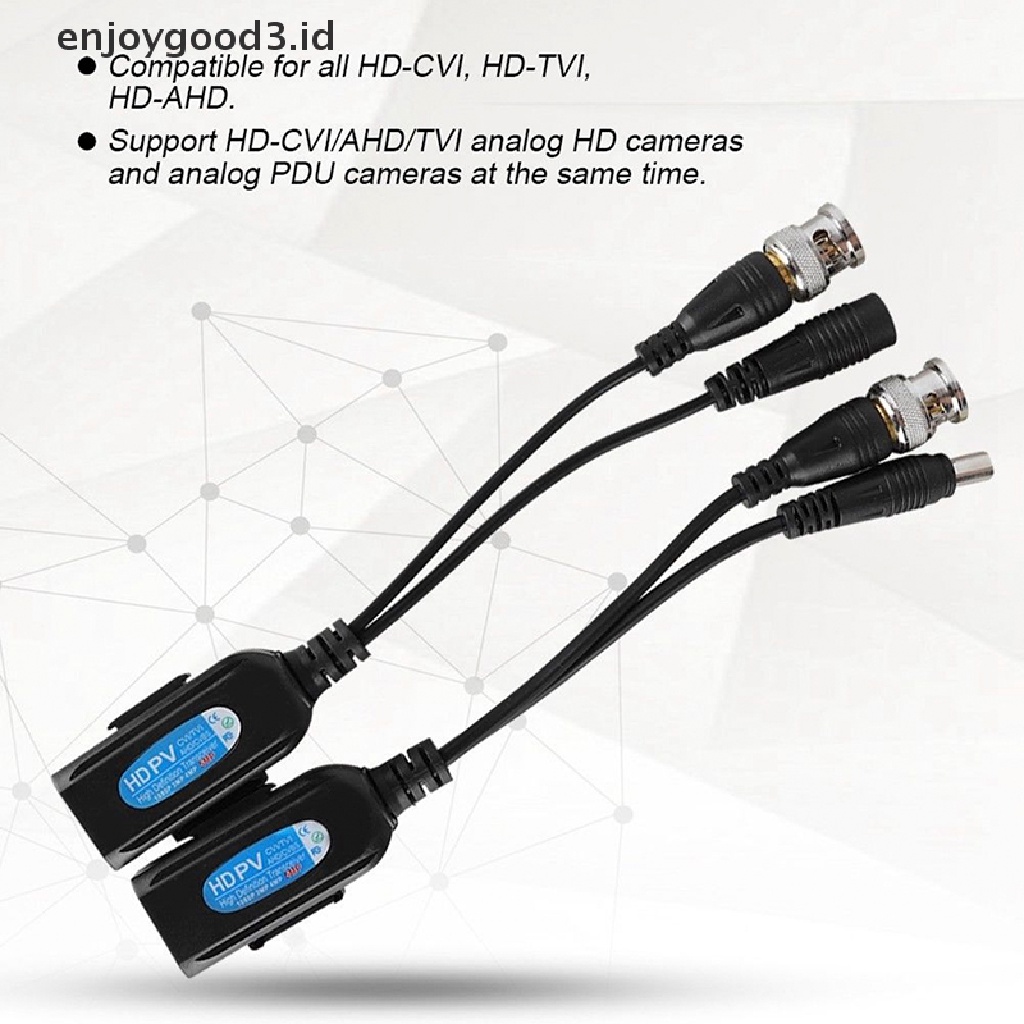

Compatible for all HD-CVI, HD-TVI, HD-AHD.

Support HD-CVI/AHD/TVI analog HD cameras and analog PDU cameras at the same time.

The 720P / 1080P TVI camera can reach 250 meters.

The 720P AHD camera can reach up to 320 meters.

Specifications:

Shell Material: ABS

Color: Black

Frequency Response: DC to 60Mhz

Attenuation: 0.5dB type

Video Formats: NTSC, PAL and SECAM

CMRR: 60dB

Surge Protection: 4KV

ESD: 8KV

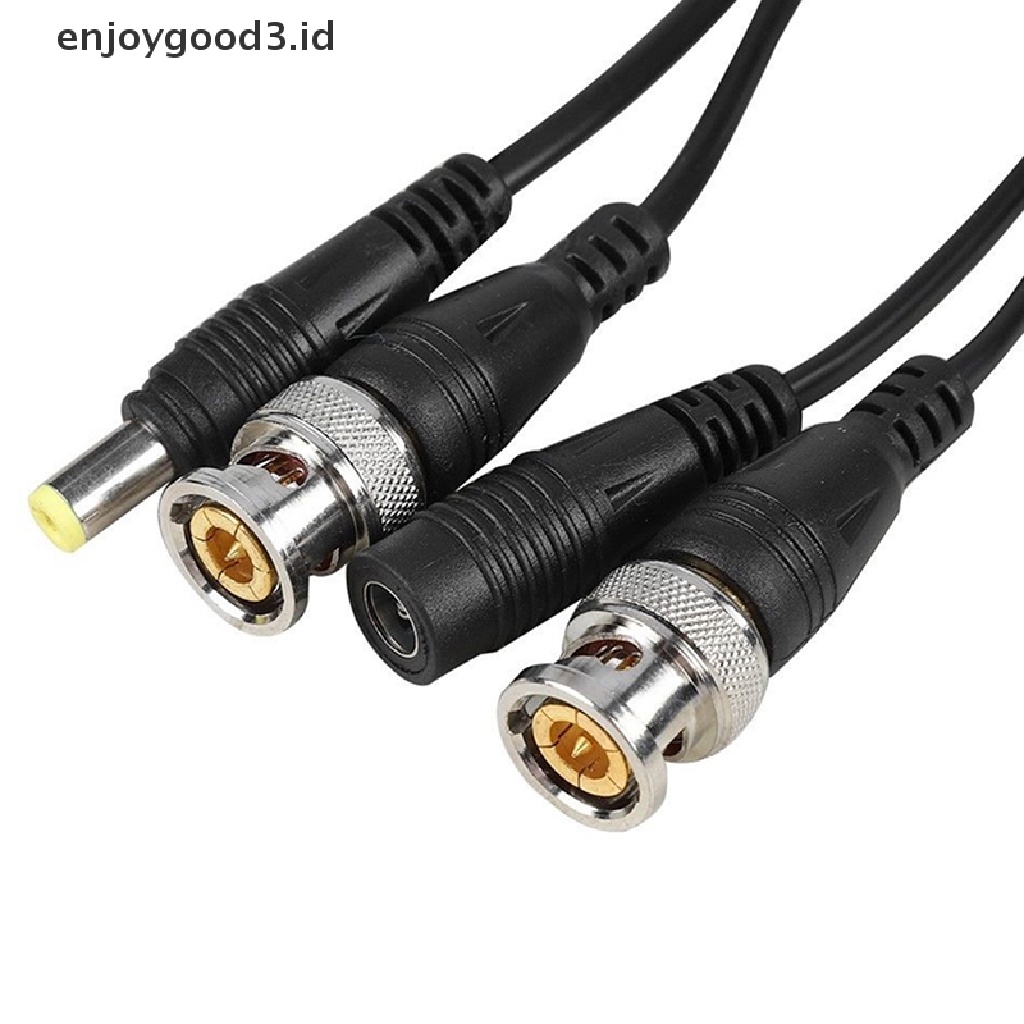

Connectors: Male BNC and "Prees-Fit"Terminal blocks

Impedance:

BNC: 75 ohmas

Terminal: 100 ohms

Working Temperature: -10 ℃ to +70 ℃

Storage Temperature: -30 ℃ to +70 ℃

Humidity: (non-condensing) 0-95Percent

Size: Approx.4.7*2.6*2.0cm/1.9*1.0*0.8in

Cable Length: Approx.11.6cm/4.6in

Package Weight:70.0g/2.5oz



Package List:

1 Pair * Video Transceiver

Notes:

1. RJ45 Video Balun is not waterproof, for indoor use only.

2. Make sure the RJ45 for Camera Side and DVR Side are the same standard. Wrongfully mixing the colors may result in burning the camera and devices.

Gambar produk
