1 Pair BNC To RJ45 Passive Video Power Audio Balun Transceiver For CCTV Camera

Detail 1 Pair BNC To RJ45 Passive Video Power Audio Balun Transceiver For CCTV Camera

_________________❀Dunia.art❀______________
Selamat datang di toko kami, sebagian besar produk kami ready stok, harga terendah dan kualitas terbaik.

Description:

Features:
100% brand new and high quality.
Easy installation, using the standard UTP cable system.
Using UTP cable ( CAT5, RJ45) to transmit video, audio signal instead of co-axial.
Support all video device, such as camera, monitor, DVR card and recorder etc.
Image with high quality in long distance.
Built - in transient protection.Excellent anti-jamming ability.
Real-time monochrome or color transmission PAL, NTSC, SECAM and other standard baseband video signal.
Passive UTP video transmission equipment, and can be used for sending and receiving, without providing power.

Specifications:
Item Type:
1#: Passive Power & Video Balun
2#: Passive Power Video & Audio Balun (Optional)
Shell Material: ABS
Color: Gray
Size: 43×22×21mm/1.69×0.87×0.83in (Approx.)
Video Format: NTSC / PAL / CCIR / SECAM
- Frequency respond: DC-6MHz
- Common-ode / differential-mode rejection: 15HKz - 6MHz 60dB type
Video In / Out: BNC (Male) x 1 + BNC (Male) x1
Power Input: DC 12V
Frequency Response: DC to 6MHz
Impedance:
- Coaxial cable BNC Male: 75 Ω
- UTP RJ45 Data Connector: 100 Ω
Working temperature: -10 ℃ to +70 ℃
Storage temperature: -30 ℃ to +70 ℃
Humidity: (non-condensing) 0-95%
Quantity: 1 Set(1 Pair) (other accessories demo in the picture is not included)


Package includes:
1 Pair X BNC To RJ45 Passive Video Balun Transceiver For CCTV Camera

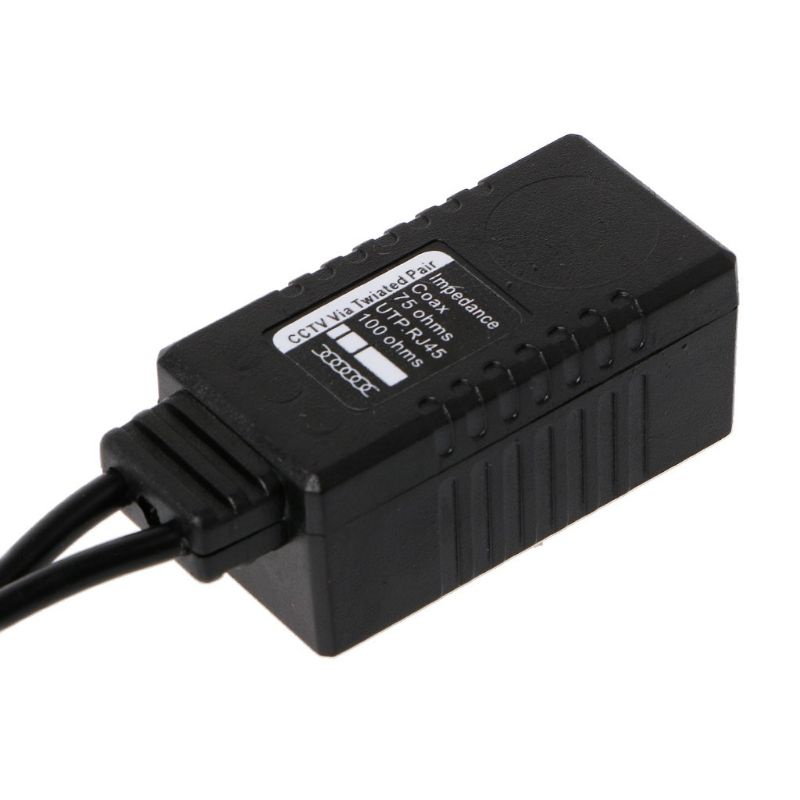

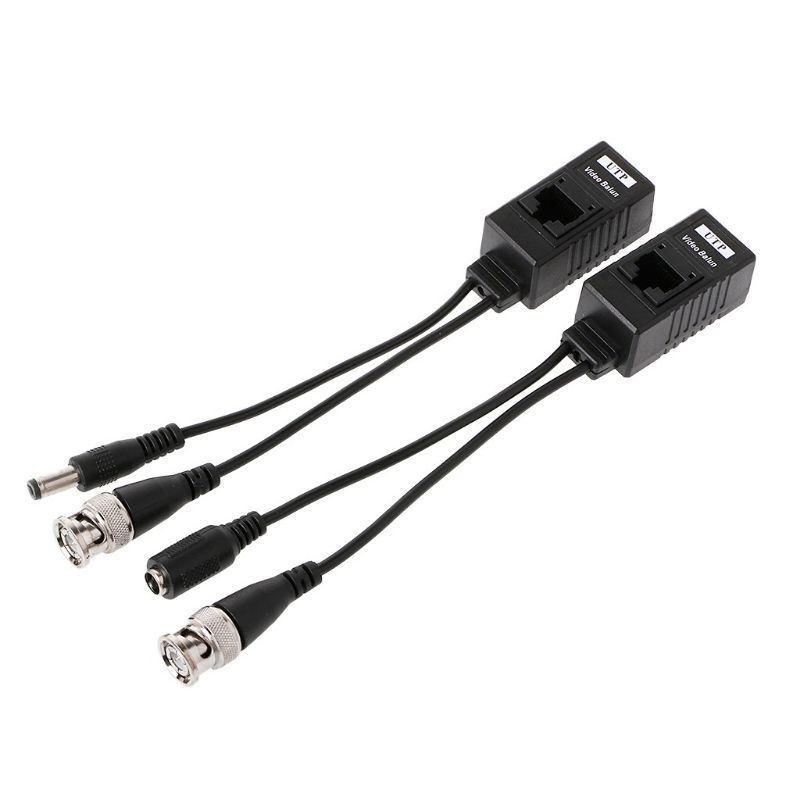

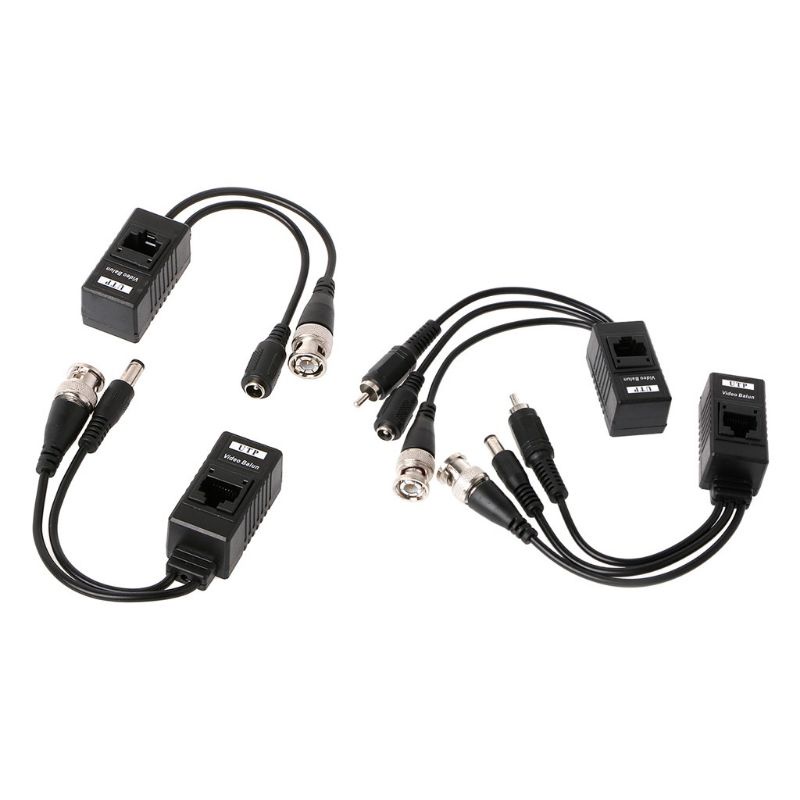

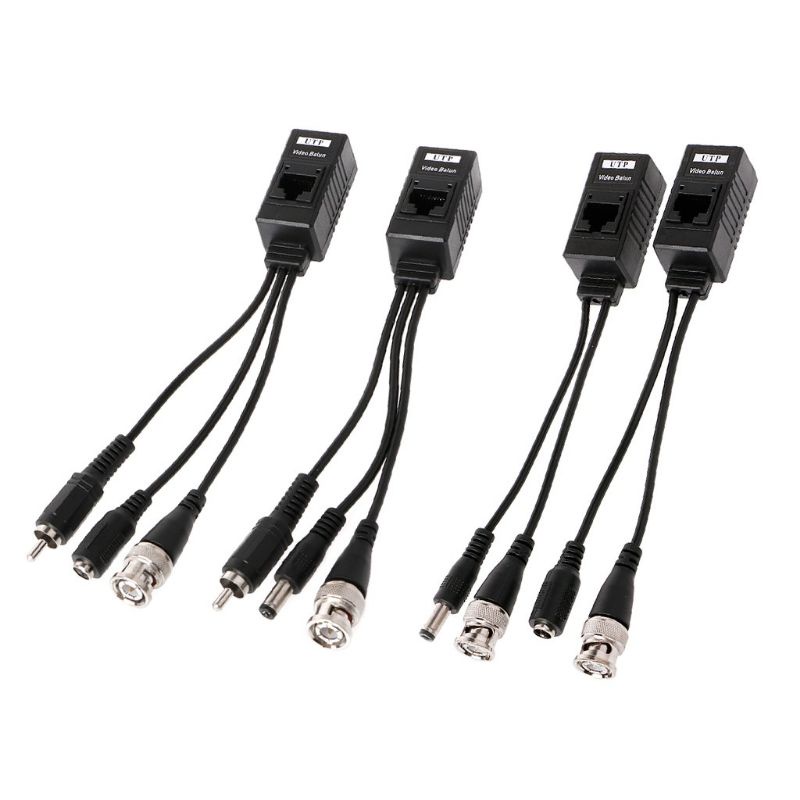

Gambar produk
