1 Channel Relay Module 24V High / Low Level Trigger

Elektronik > Elektronik Lainnya > 1 Channel Relay Module 24V High / Low Level Trigger
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:i2cpartshopLihat semua produk Elektronik oleh i2cpartshop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail 1 Channel Relay Module 24V High / Low Level Trigger

1 Channel 24V Relay Module With Optocoupler High/Low level Trigger relay module solid state relay module For Arduino

Module description:

1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;
2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3. the module Operating voltage 24V ;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design, even if the control line is broken, the relay will not operate;
6. the power indicator (green), the relay status indicator (red)
7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
8. module size: 50mm*26mm*18.5mm (L*W*H)

Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN: can be high or low level control relay
1 Channel 24V Relay Module With Optocoupler High/Low level Trigger relay module solid state relay module For Arduino Module description: 1. the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A; 2. using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA; 3. the module Operating voltage 24V ; 4. the module can be high or low by a jumper setting trigger; 5. fault-tolerant design, even if the control line is broken, the relay will not operate; 6. the power indicator (green), the relay status indicator (red) 7. the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient 8. module size: 50mm*26mm*18.5mm (L*W*H) Module interface: 1. DC+: positive power supply (VCC) 2. DC-: negative power supply (GND) 3. IN: can be high or low level control relay

Gambar produk

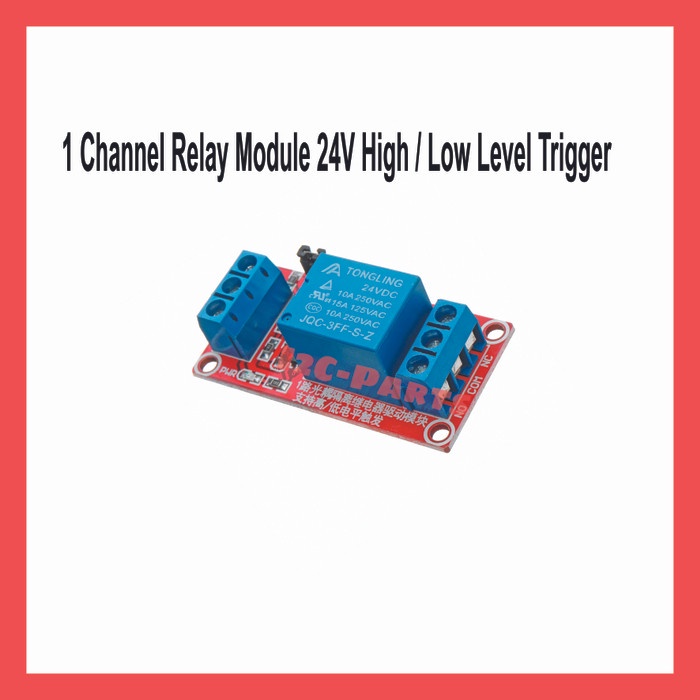

1 Channel Relay Module 24V High / Low Level Trigger
1 Channel Relay Module 24V High / Low Level Trigger
