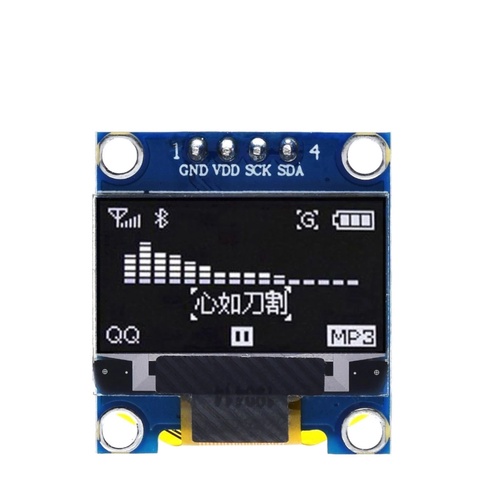

1.3 inch white I2C OLED Module 128x32 1.3" LCD for Arduino ESP STM

Detail 1.3 inch white I2C OLED Module 128x32 1.3" LCD for Arduino ESP STM

OLED displays advantages:
+ Lighter and thinner
+ Brighter and more contrast
+ Do not require a backlight
+ Low power consumption (only around 40mW)
+ Have a true black background, which makes for a more accurate video display
+ Can be refreshed much faster than LCDs, making them suitable for high-speed and high framerate video
+ Very wide field of view (approaching 170°)
+ Can be seen in a variety of lighting environments, both indoor and outdoor


Pin Definition:
+ VCC: 3.3 - 5V
+ GND: Ground
+ SCL: Serial clock
+ SDA: Serial data


Spesification:
+ Size: 1.3 inch
+ Resolution: 128 x 64
+ Color: white, blue (optional)
+ Viewing angle: > 160°
+ Backlight: OLED self-illumination, no backlight required
+ Driver chip: SH1106
+ Communication method: I2C
+ Power consumption: 0.04W (normal operation)
+ Voltage support: DC 3.3 - 5V
+ Working temperature: -30 to 80°C


Note:
The components at the back of the module and the arragement may be different between each shipment, but the functionality should be the same.


Package includes:
1x OLED Module
