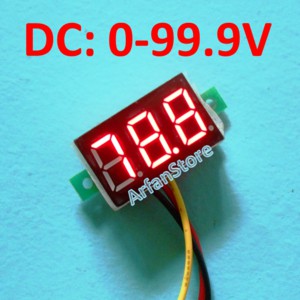

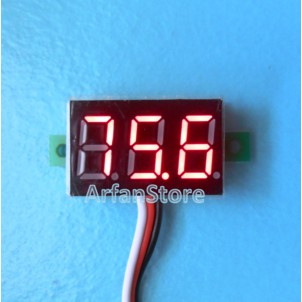

Detail 0-99.9V DC Mini Voltmeter Digital Volt Meter Display Merah 3 Kabel
0-99.9V DC Mini Voltmeter Digital Volt Meter Display Merah 3 Kabel
Spesifikasi: Operating voltage: 3.3~30V (with reverse polarity protection) Test voltage: 0~99.9V Operating Current: 20mA Display: 0.28 inch LED, red,blue (color optional) Screw Hole Size: 2mm Measurement rate: 500mS / times Extreme working conditions: Minimum operating voltage: +3.3 V Maximum working voltage: +30 V Operating Temperature: -10~+65 degree Operating Humidity: 10~80% (non-condensing) Working pressure: 80~106kPa sun exposure: no direct exposure Dimension: 2.8 x 2 x 1.5cm(L x W x H) Cable length: Approx.13cm

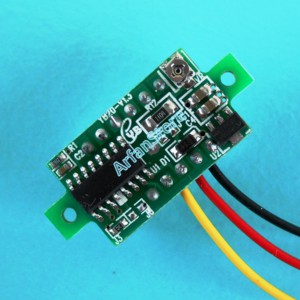

Cara Pasang: Merah (positif) + Hitam (negatif): Power Supply 3.3-30V Kuning/Putih (positif) + Hitam (negatif): Pengukuran tegangan 0-99.9V
Catatan: - Karena kabel hitam hanya 1, jadi bisa disambung / dibuat cabang (common negative)
- Kabel Merah dan Kuning bisa di gabung, pengukuran max menjadi 30V.
- Harap perhatikan dalam pemasangan jangan sampai terbalik.
