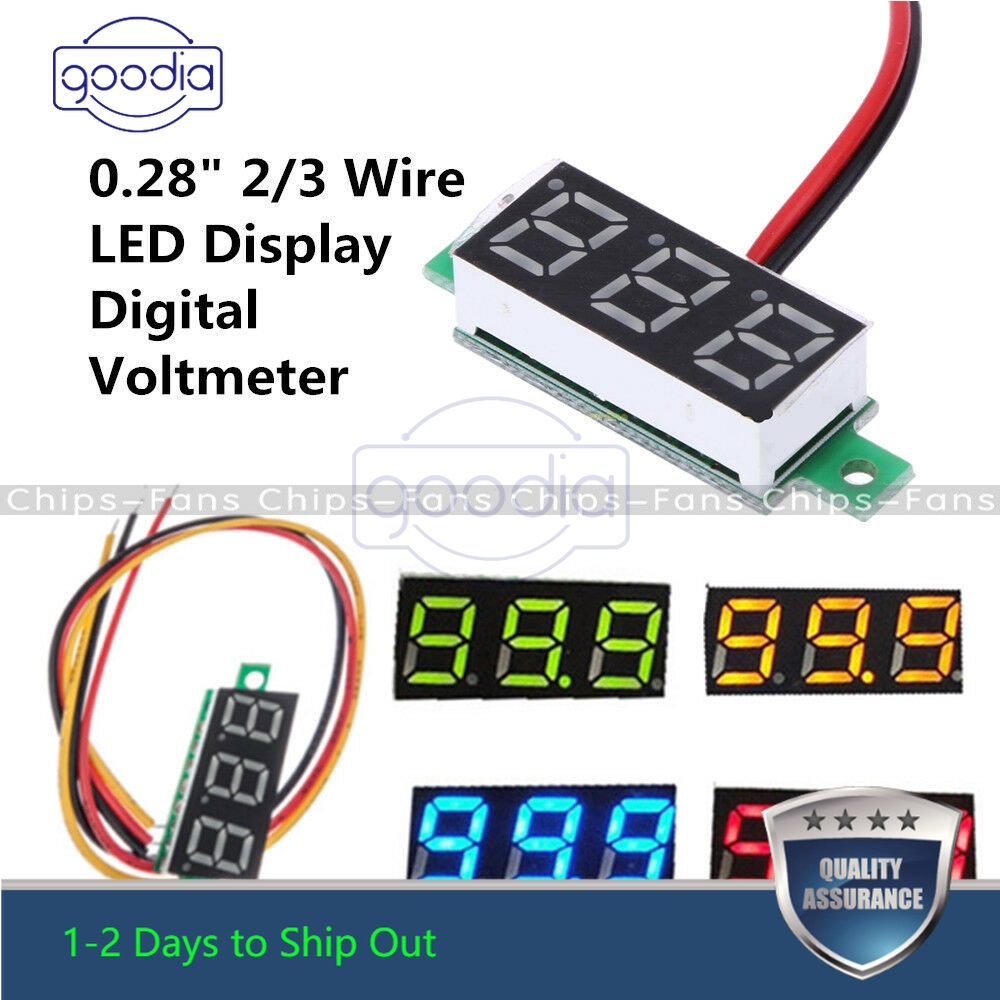

Detail 0.28 " 2/3 Wire Display Led Digital Voltmeter Pengukur Tegangan Panel Meter
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickWhy choose our store?
» 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store.
» 〖 READY STOCK 〗 for all of our products.
» 〖 SAME DAY POST 〗 for all orders made before 5pm.
» 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days.
» 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate
» Working hour : Mon - Sta @ 09:00 -20:00
»〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount

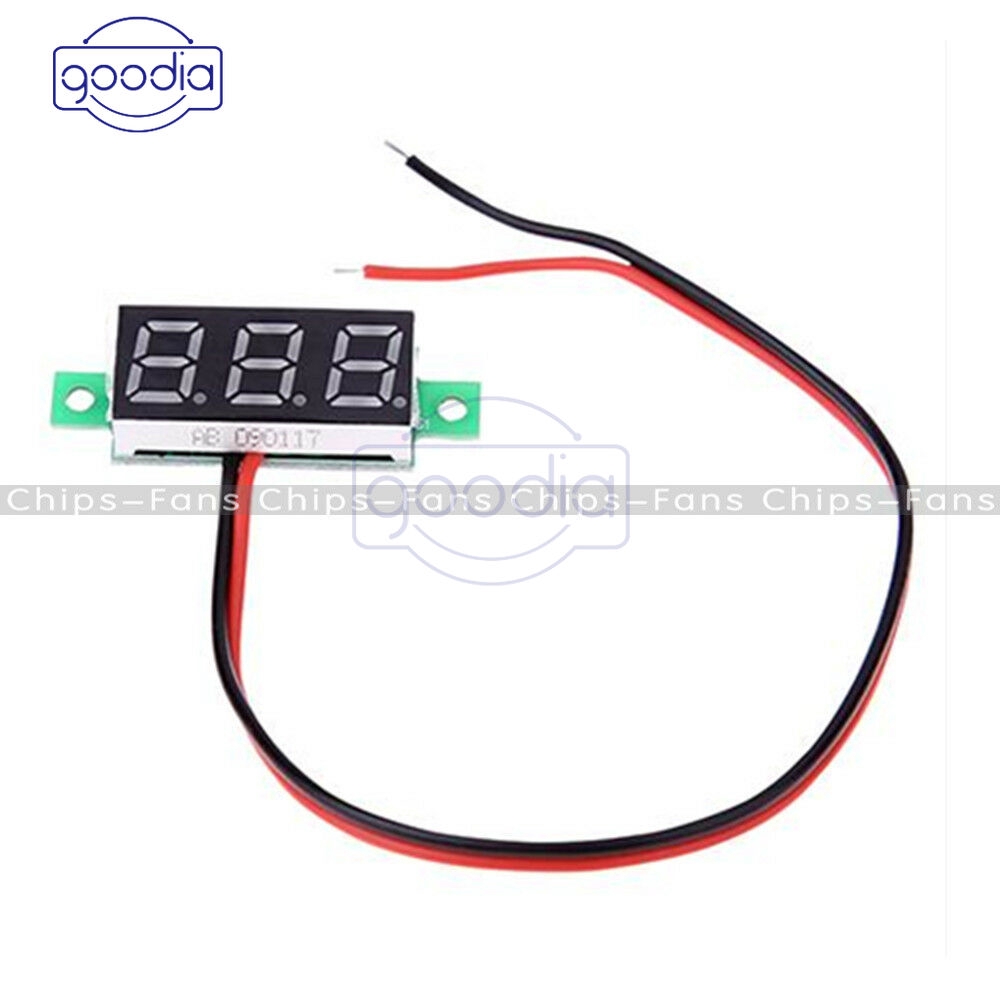

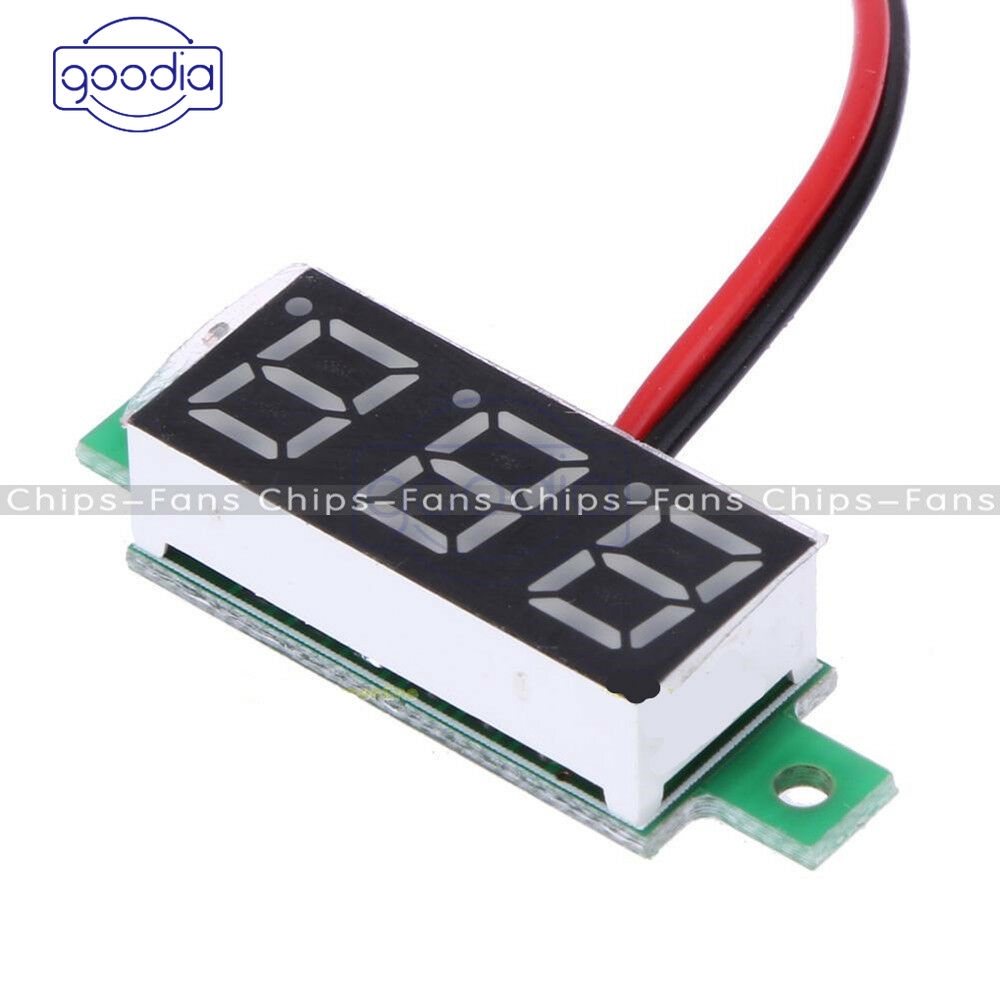

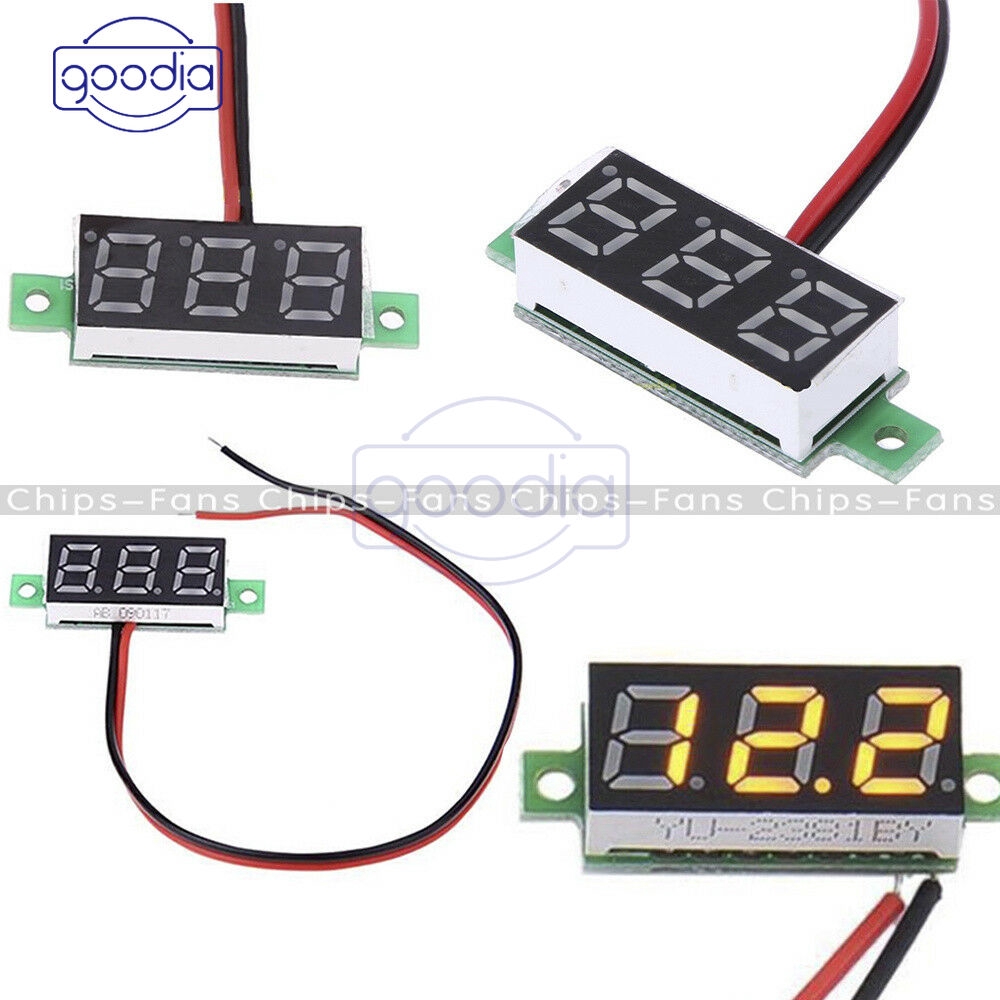

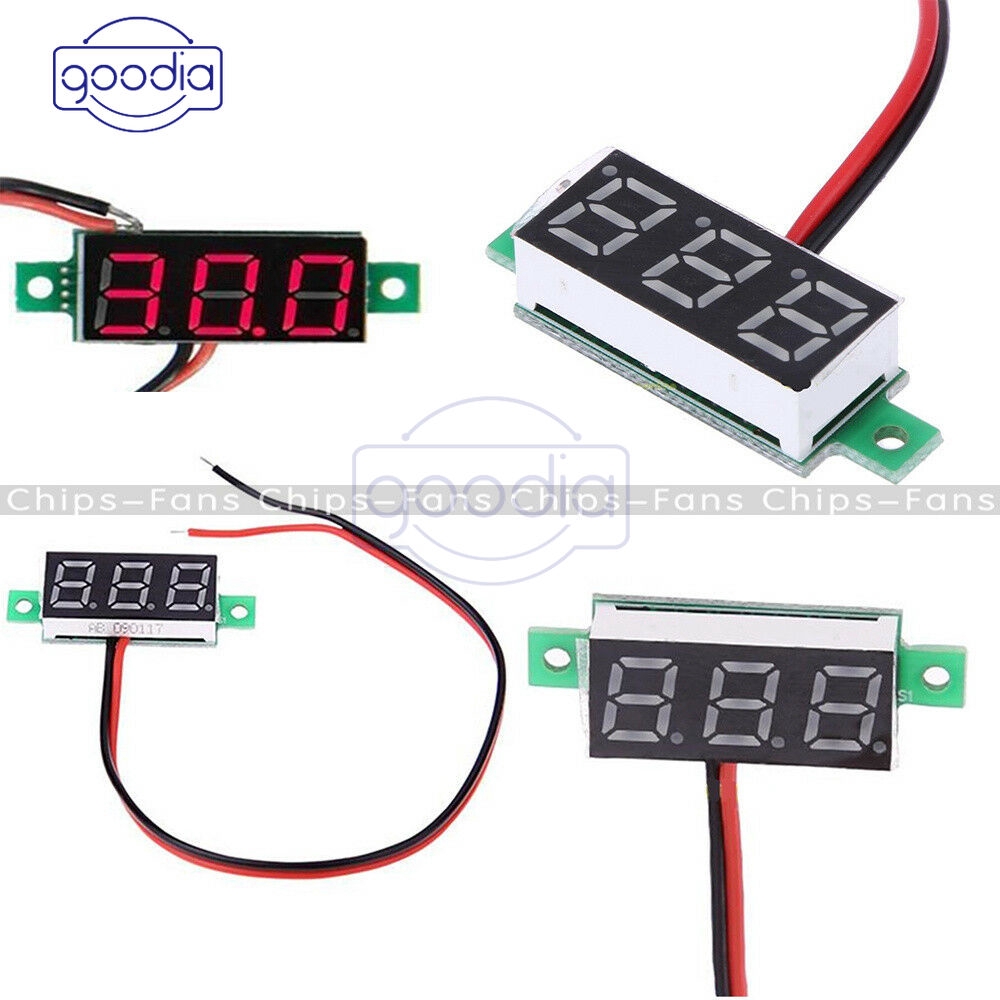

2 Wires
100% Brand new and high quality
precision automatic adjustment ,when less than 10V accurate to 0.01V, more than 10V accurate to 0.1V
Two wire connection, with reverse polarity protection
Display color: Yellow/Red/Green/Blue
Two-wire Measurement range: DC 2.5-30V, 2.7-30V, 3-30V
Min. input voltage: DC 2.5V, 2.7V, 3V
Max. input voltage:DC 30V(Higher than this voltage is has a risk of overburning)
Permissible error: 1%(±1 digit)
Display mode: three digit 0.28'LED digital tube
Size: 3.30 x 1.10 x 0.70cm (L*W*H)
Speed ratio: about 200ms/time
Current Consumption: <20mA(Generally 5-15 mA)
Install hole size: 23 x 10.5mm
Working temperature: -10℃~ +65℃
Package Included:1PC*0.28" 2 Wire Mini DC Digital Panel Voltmeter Panel Mount LED Voltage

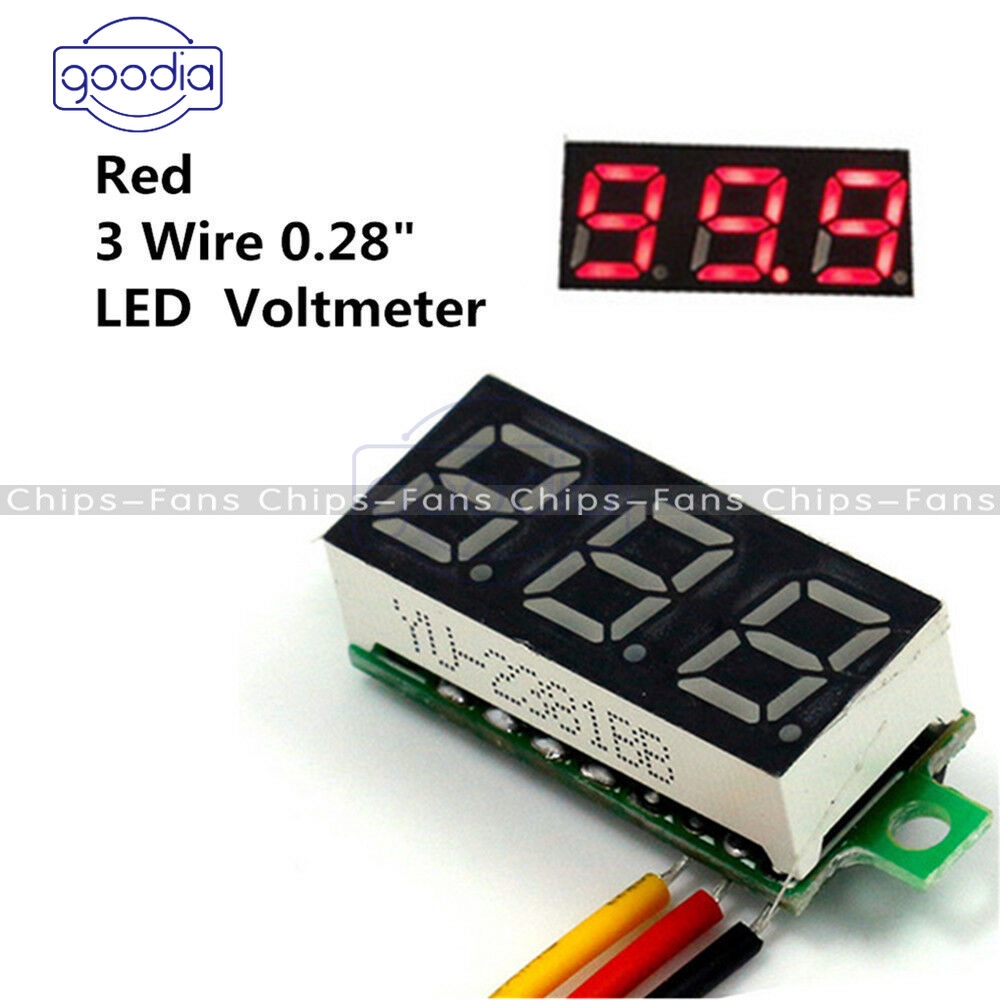

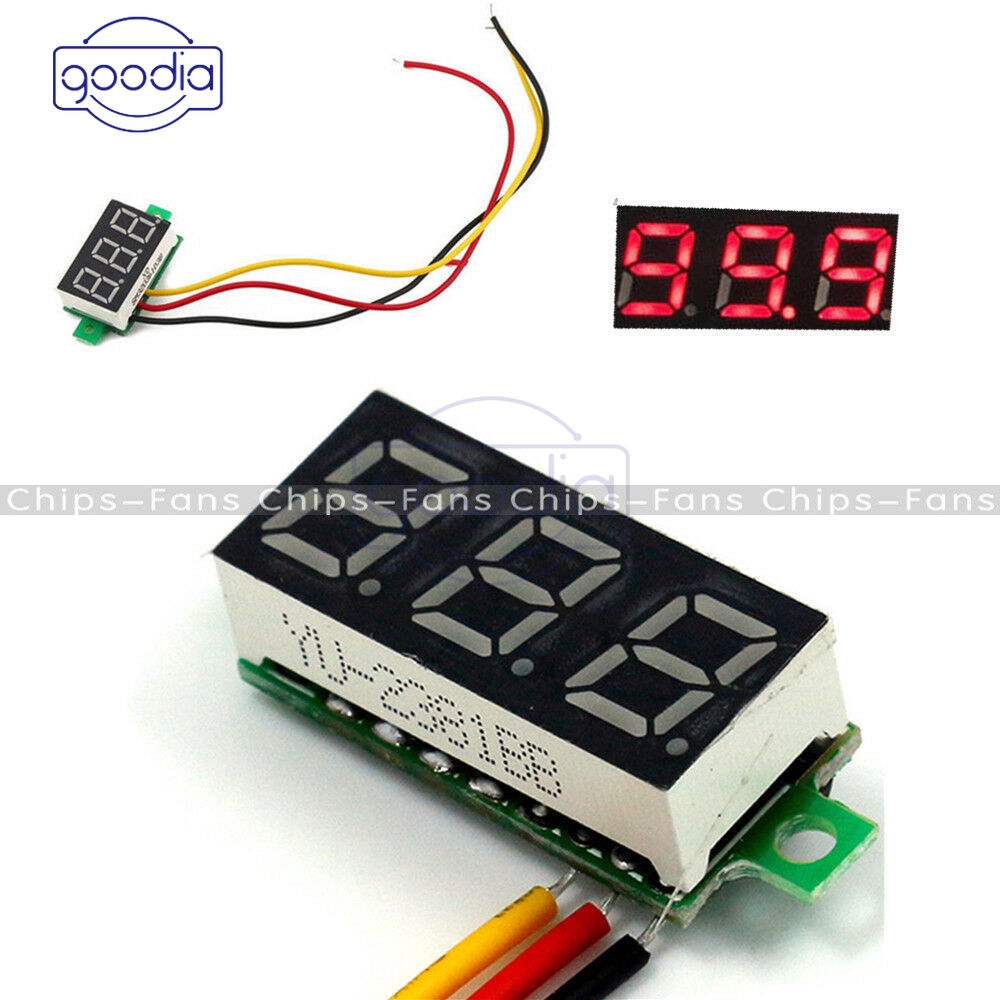

3 Wires
Color: Red/Yellow/Blue/Green
Three line Measuring range: DC 0V-100V
Two line measuring range: DC 4-30V
Working current: More than 20Ma
Input range: DC 5-30V
Display: Three 0.28inch digital tube
Dimensions: 24mm * 11mm * 9mm
Perforation size: 23mm * 10.5mm
Refresh rate: 200mS / times
Measurement accuracy: 1%
Operation Temp: -10 - +65 degree
Feature:
1. Three wires digital voltmeter, 0.28" LED display, mini size, with reversal protection.
2. Measure voltage range 0-100V, need DC4-30V external power supply.
Package Included:1PC*3 wires 0.28'' Digital Voltmeter
