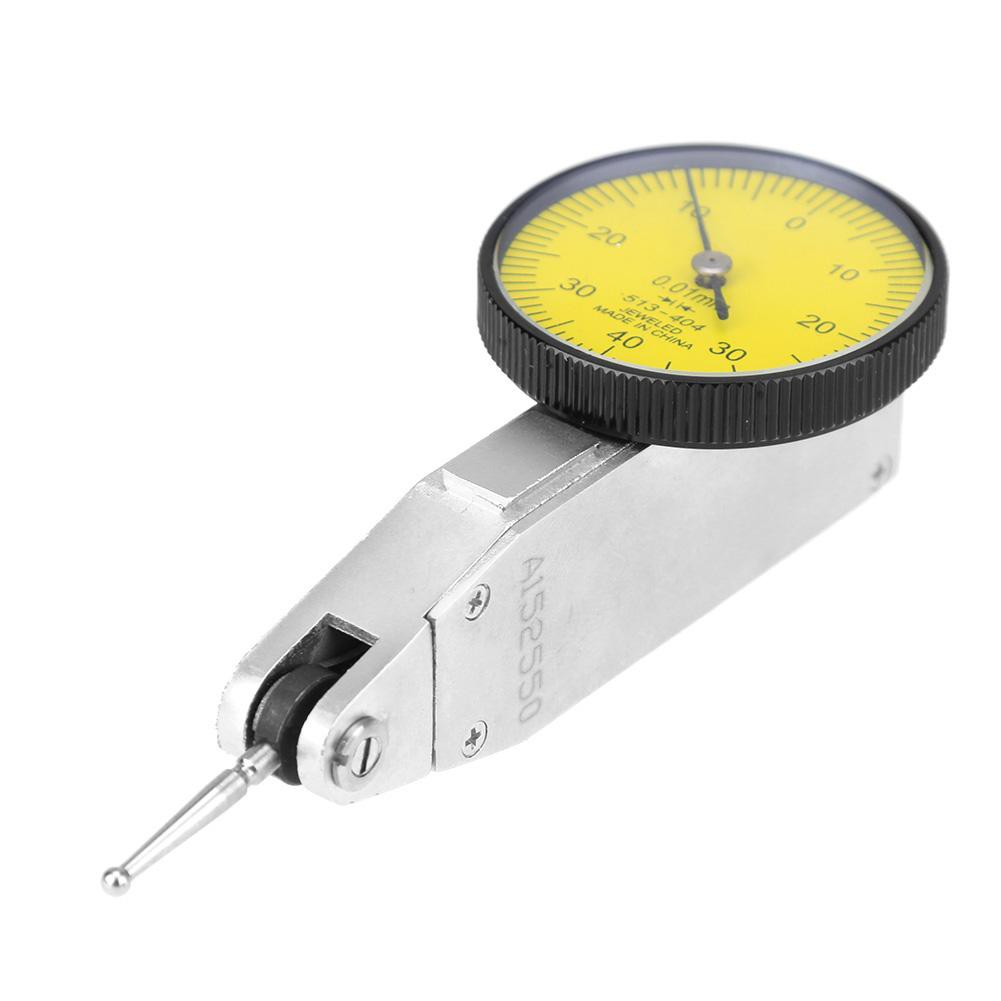

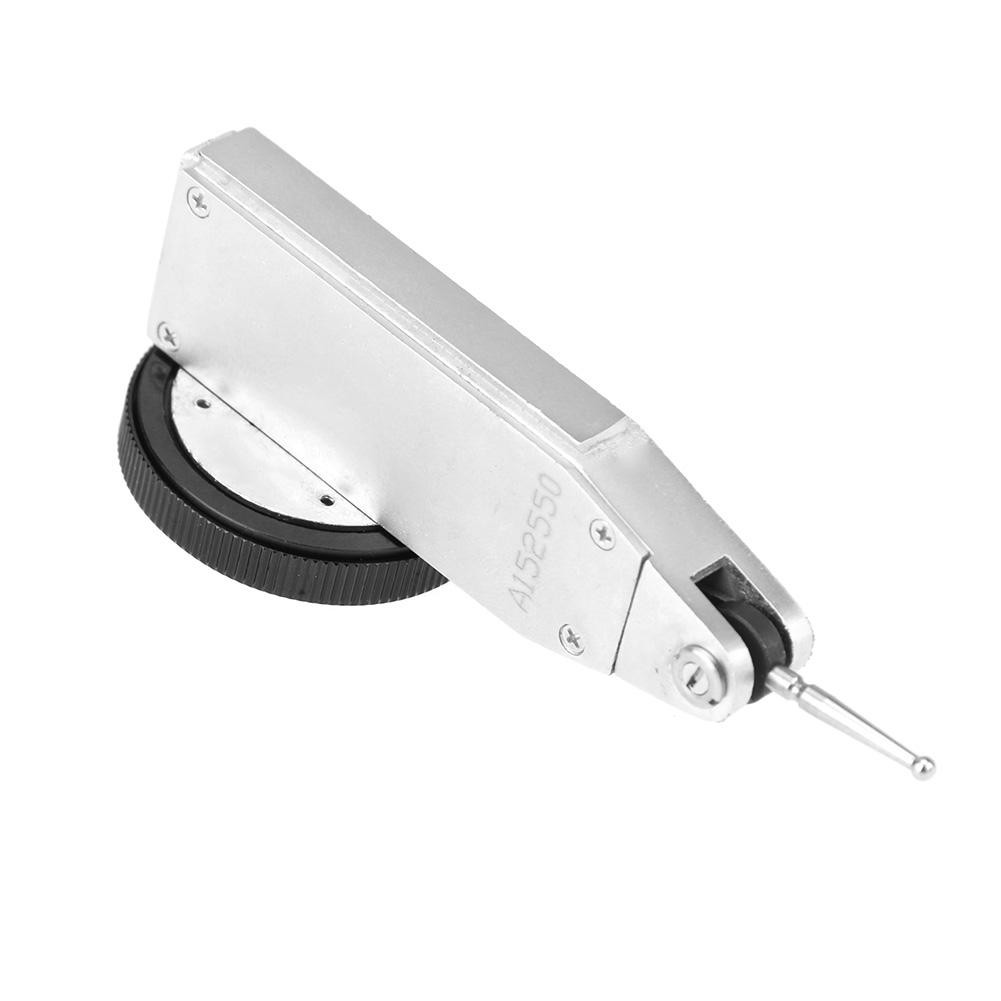

0-0.8mm Precision Waterproof Dial Test Lever Indicator Gauge Scale Meter L&6

Detail 0-0.8mm Precision Waterproof Dial Test Lever Indicator Gauge Scale Meter L&6

Video perkenalan produk 0-0.8mm Precision Waterproof Dial Test Lever Indicator Gauge Scale Meter L&6. Sumber: Shopee.

Features:
Accurate and convenient measurement of narrow or concave objects, and the dial indicator is difficult to measure the inner diameter size.
The clutch's structure is used to realize the automatic rotation of measuring direction.

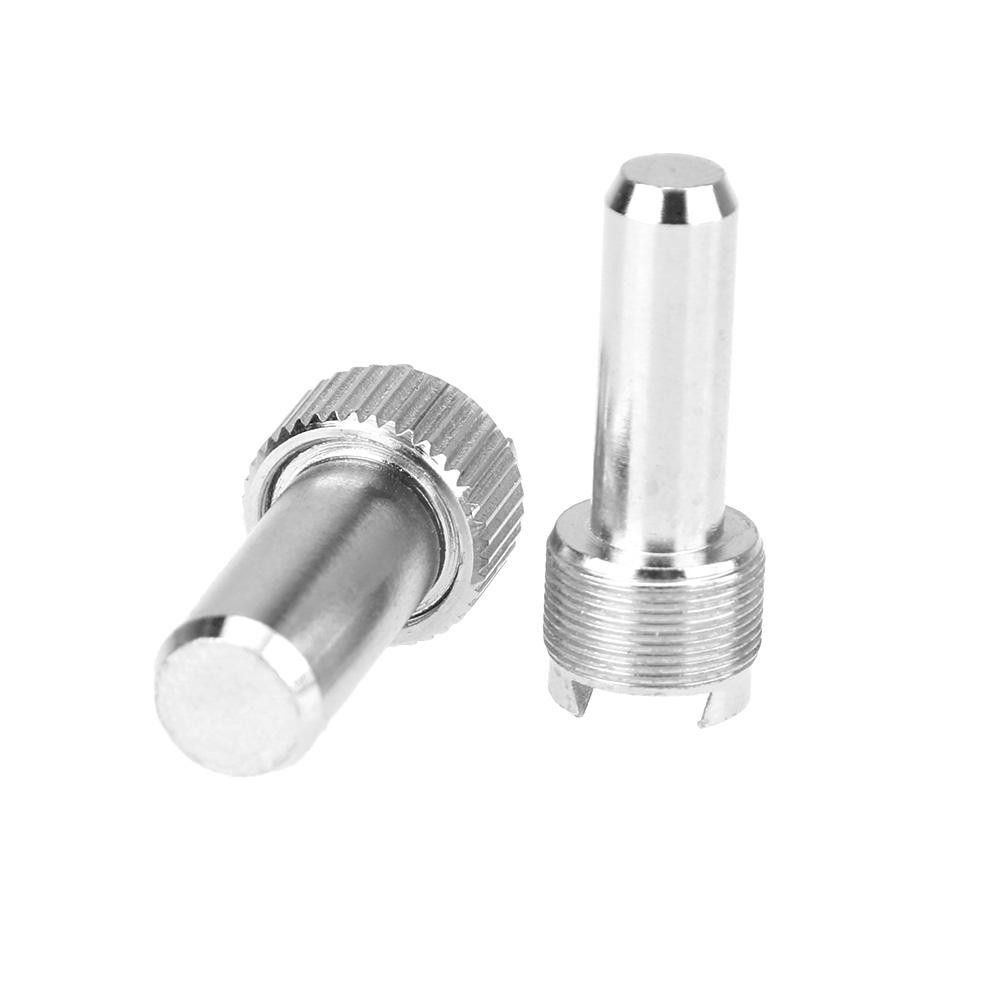

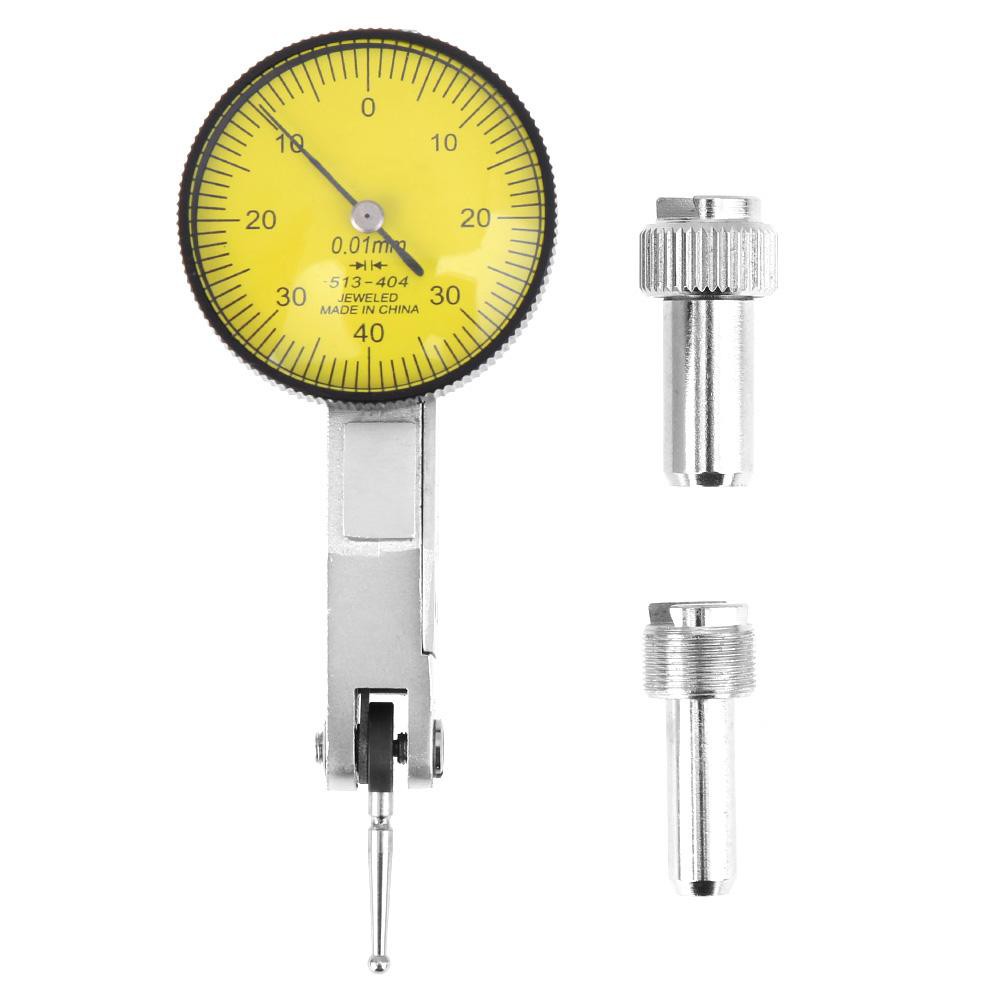

A dovetail seat for installing indicators on the top, rear or front part.
It is durable, accurate, sensitive and responsive.
0-0.8mm measurement range, 0.0005 "/ 0.01mm scale, 0-40-0 balance inch.

The dial indicator is used to measure in processing, layout and inspection.

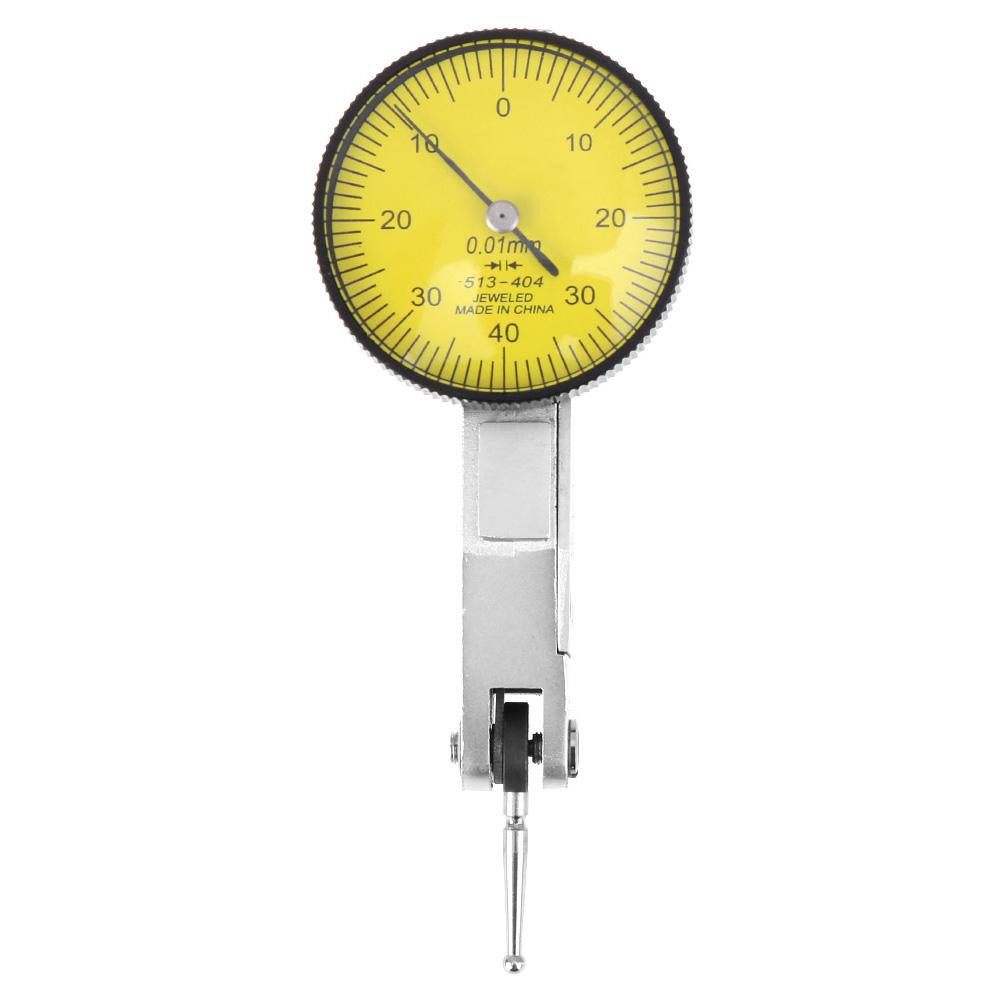

The dial has 0-40-0 balance. In inches, read the red scale 0.001mm balance measurement, read the black scale.

Magnetic pointer and contact pin can be used reliably in magnetic environment.

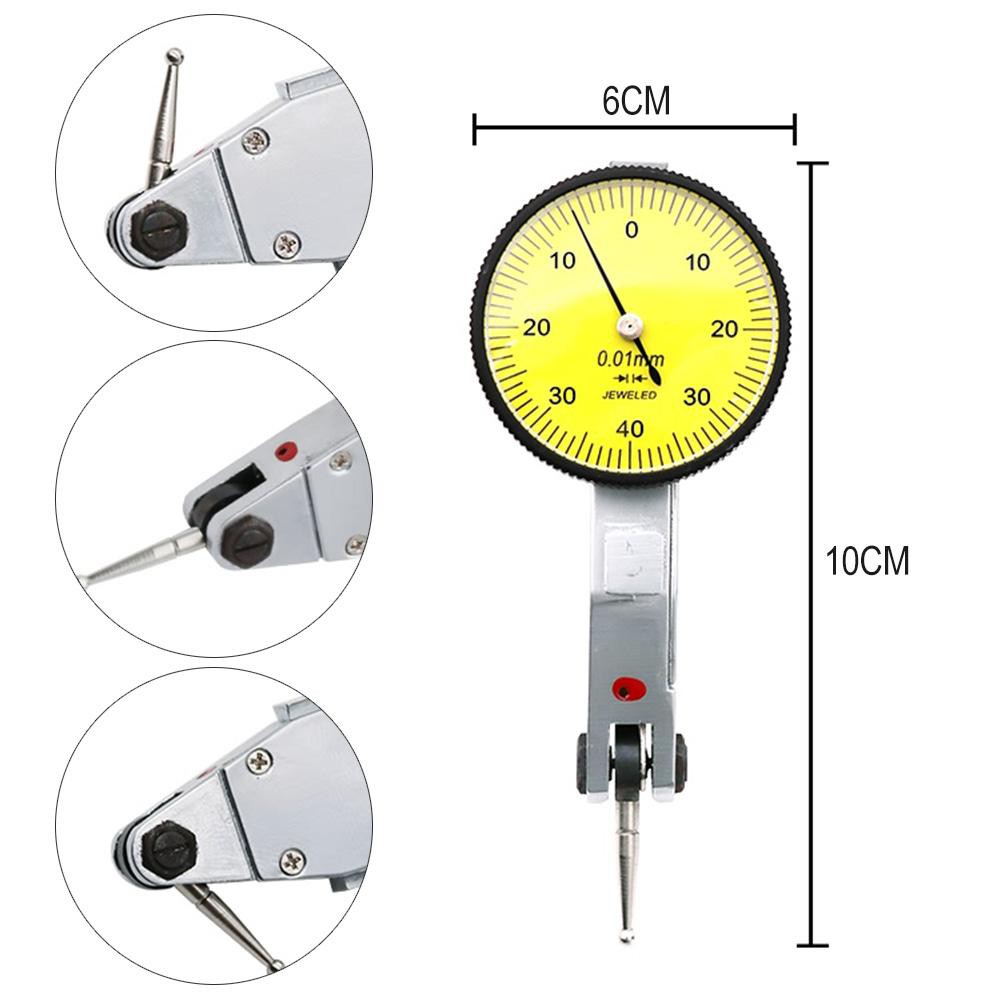

The probe rotates 180 degrees, freely adjusting the direction of measurement and the left and right swinging probe.
The knurling bezel rotates 360 degrees at any position to make the reading zero.

Specifications:
Color: yellow
Length: about 8 cm/3.15"

Diameter: about 3 cm/1.18"

Contact point length: About 1.5 cm/0.59"
Shape size: about 10*6*3.5 cm/3.94*2.36*1.38"
Dial type and reading: 0-40-0 balance, inch and 0-25-0 equilibrium index reading
Scope: 0-0.8mm

Resolution: 0.01mm



Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
